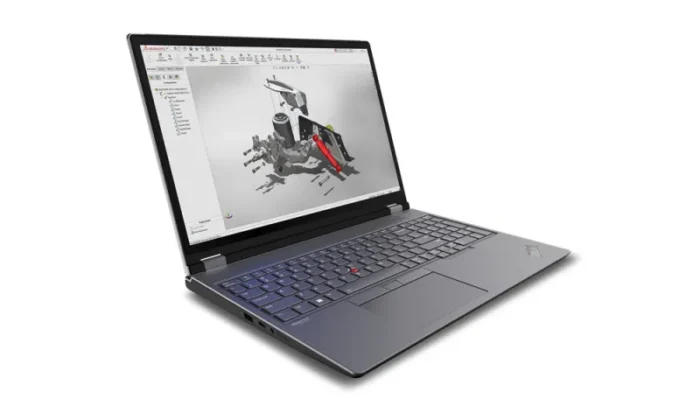

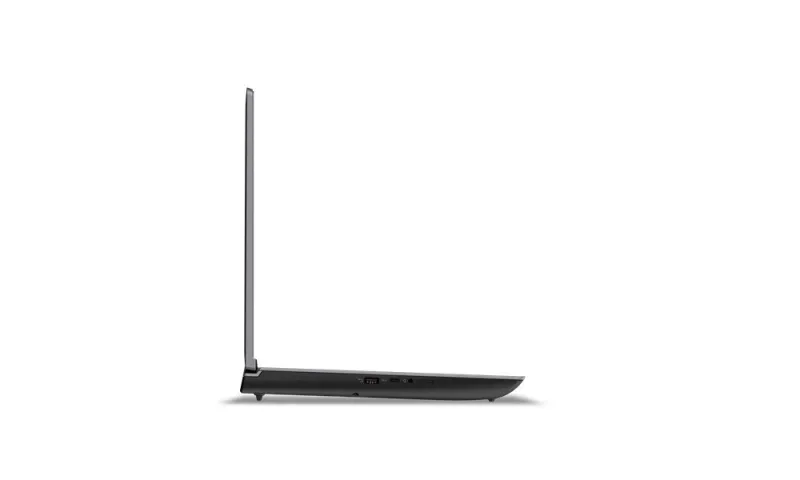

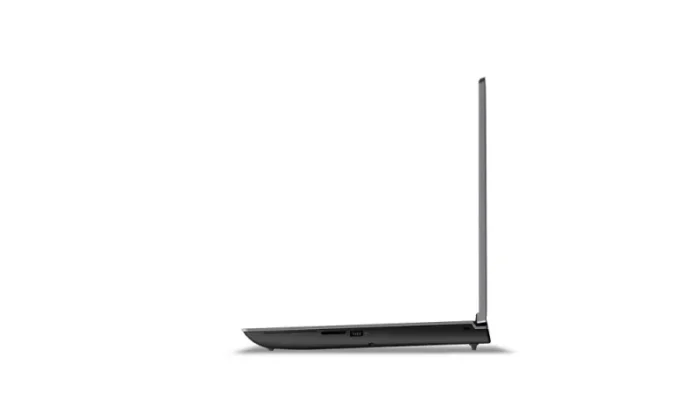

Lenovo ThinkPad P16 Gen 2 Intel® Core™ i9 i9-13980HX Mobile workstation 40.6 cm (16″) WQXGA 32 GB DDR5-SDRAM 1 TB SSD NVIDIA RTX 3500 Ada Wi-Fi 6E (802.11ax) Windows 11 Pro UK English Black
- Intel Core i9-13980HX, 24C (8P + 16E)/32T, P-core 2.2/5.6GHz, E-core 1.6/4.0GHz, 36MB
- 2x 16GB SO-DIMM DDR5-5600 Non-ECC
- 1TB SSD M.2 2280 PCIe 4.0×4 Performance NVMe Opal 2.0
- NVIDIA RTX 3500 Ada Generation 12GB ECC
- Windows 11 Pro
Portable power & performance unpacked
– Power-packed mobile workstation & mobile desktop in one
– Intel vPro® with 13th Gen Intel® Core™ HX Series processors
– Supports NVIDIA® RTX™ & Intel® Arc™ discrete graphics
– Super-fast memory & storage, plus superb WiFi options
– Choice of stunning displays, including OLED touchscreen
– Legendary MIL-SPEC reliability, ISV-certified, ThinkShield security
– Made with recycled component content, plastic-free packaging
| Design |
| Housing material |
Aluminium |
| Form factor |
Clamshell |
| Colour name |
Storm Grey (Top), Villi Black (Bottom) |
| Product colour |
Black |
| Product type |
Mobile workstation |
| Display |
| Maximum refresh rate |
165 Hz |
| RGB colour space |
sRGB |
| Colour gamut |
100% |
| Display brightness |
500 cd/m² |
| Anti-glare screen |
Yes |
| Native aspect ratio |
16:10 |
| LED backlight |
Yes |
| Panel type |
IPS |
| HD type |
WQXGA |
| Touchscreen |
No |
| Display resolution |
2560 x 1600 pixels |
| Display diagonal |
40.6 cm (16″) |
| Processor |
| Processor base power |
55 W |
| Maximum turbo power |
157 W |
| Processor cache type |
Smart Cache |
| Processor cache |
36 MB |
| Efficient-core Max Turbo Frequency |
4 GHz |
| Performance-core Max Turbo Frequency |
5.6 GHz |
| Efficient cores |
16 |
| Performance cores |
8 |
| Processor boost frequency |
5.6 GHz |
| Processor cores |
24 |
| Processor model |
i9-13980HX |
| Processor generation |
13th gen Intel® Core™ i9 |
| Processor family |
Intel® Core™ i9 |
| Processor manufacturer |
Intel |
| Memory |
| Memory channels |
Dual-channel |
| Maximum internal memory |
192 GB |
| Memory slots |
4x SO-DIMM |
| Memory layout (slots x size) |
2 x 16 GB |
| Memory clock speed |
5600 MHz |
| Memory form factor |
SO-DIMM |
| Internal memory type |
DDR5-SDRAM |
| Internal memory |
32 GB |
| Storage |
| Compatible memory cards |
SD |
| Card reader integrated |
Yes |
| Optical drive type |
No |
| SSD form factor |
M.2 |
| SSD interface |
PCI Express 4.0 |
| NVMe |
Yes |
| SSD capacity |
1 TB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
1 TB |
| Storage media |
SSD |
| Total storage capacity |
1 TB |
| Graphics |
| On-board graphics card model |
Intel® UHD Graphics |
| On-board graphics card family |
Intel® UHD Graphics |
| On-board GPU manufacturer |
Intel |
| Discrete graphics memory type |
GDDR6 |
| Discrete graphics card memory |
12 GB |
| Discrete graphics card model |
NVIDIA RTX 3500 Ada |
| Discrete GPU manufacturer |
NVIDIA |
| Discrete graphics card |
Yes |
| On-board graphics card |
Yes |
| Audio |
| Built-in microphone |
Yes |
| Number of microphones |
2 |
| Speaker power |
2 W |
| Number of built-in speakers |
2 |
| Audio system |
Dolby Atmos |
| Audio chip |
Realtek ALC3306 |
| Camera |
| Privacy type |
Privacy shutter |
| Privacy camera |
Yes |
| Infrared (IR) camera |
Yes |
| Front camera resolution |
1920 x 1080 pixels |
| Front camera HD type |
Full HD |
| Front camera |
Yes |
| Network |
| WWAN |
Upgradable |
| Near Field Communication (NFC) |
No |
| Bluetooth version |
5.3 |
| Bluetooth |
Yes |
| WLAN controller model |
Intel Wi-Fi 6E AX211 |
| WLAN controller manufacturer |
Intel |
| Antenna type |
2×2 |
| Wi-Fi standards |
Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Mobile network connection |
No |
| Ports & interfaces |
| USB Sleep-and-Charge |
Yes |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Combo headphone/mic port |
Yes |
| Intel® Thunderbolt 4 |
Yes |
| Thunderbolt 4 ports quantity |
2 |
| HDMI ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| Performance |
| Motherboard chipset |
Intel WM790 |
| Keyboard |
| Numeric keypad |
Yes |
| Keyboard backlit |
Yes |
| Keyboard language |
UK English |
| Pointing device |
ThinkPad UltraNav |
| Software |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 11 Pro |
| Battery |
| Battery capacity |
94 Wh |
| Battery technology |
Lithium Polymer (LiPo) |
| Power |
| USB Power Delivery (USB PD) |
Yes |
| AC adapter input voltage |
100 – 240 V |
| AC adapter frequency |
50/60 Hz |
| AC adapter power |
230 W |
| Security |
| Trusted Platform Module (TPM) |
Yes |
| Trusted Platform Module (TPM) version |
2.0 |
| Windows Hello |
Yes |
| Smart card reader |
Yes |
| Fingerprint reader |
Yes |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Operational conditions |
| Maximum shipping altitude |
3048 m |
| Storage relative humidity (H-H) |
5 – 95% |
| Operating relative humidity (H-H) |
8 – 95% |
| Storage temperature (T-T) |
5 – 43 °C |
| Operating temperature (T-T) |
5 – 35 °C |
| Certificates |
| Compliance certificates |
RoHS |
| Sustainability |
| Sustainability certificates |
ENERGY STAR, TCO, EPEAT Gold |
| Weight & dimensions |
| Height |
30.2 mm |
| Depth |
266 mm |
| Width |
364 mm |
| Weight |
2.95 kg |
| General |
| Product family |
ThinkPad |
| Product series |
P |
