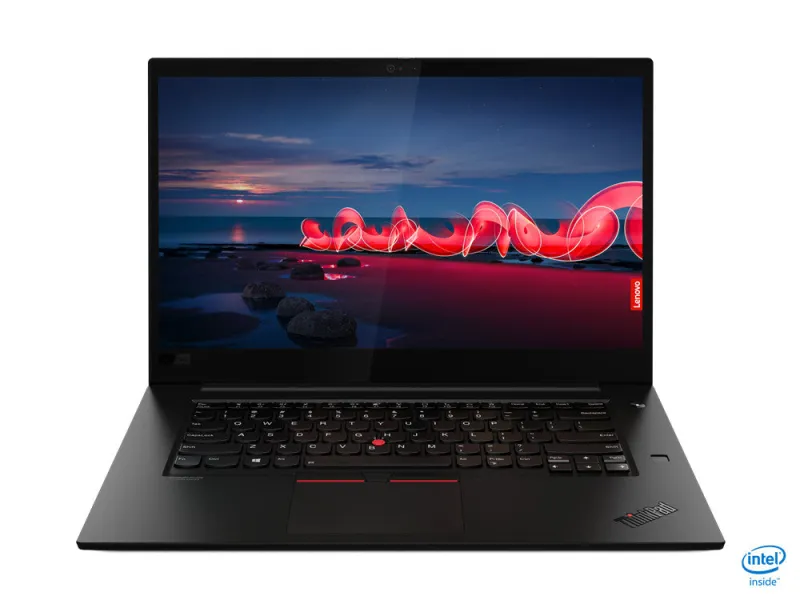

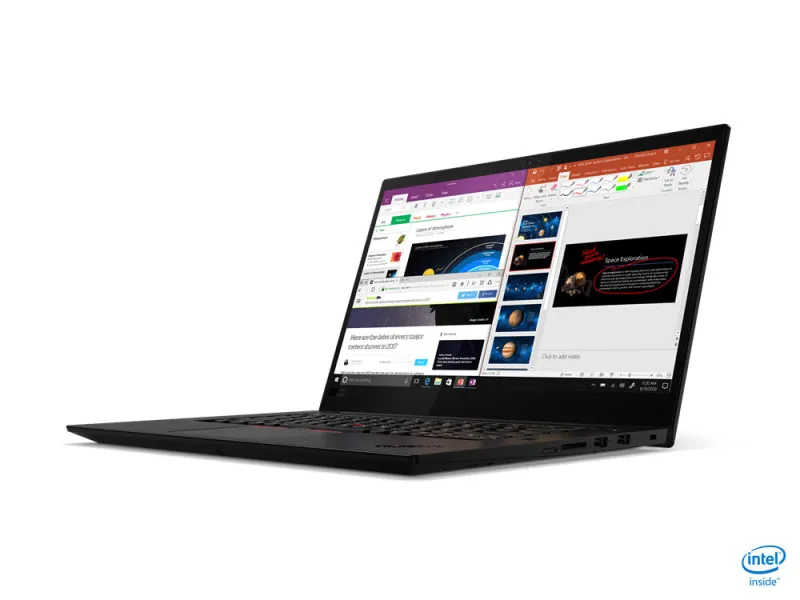

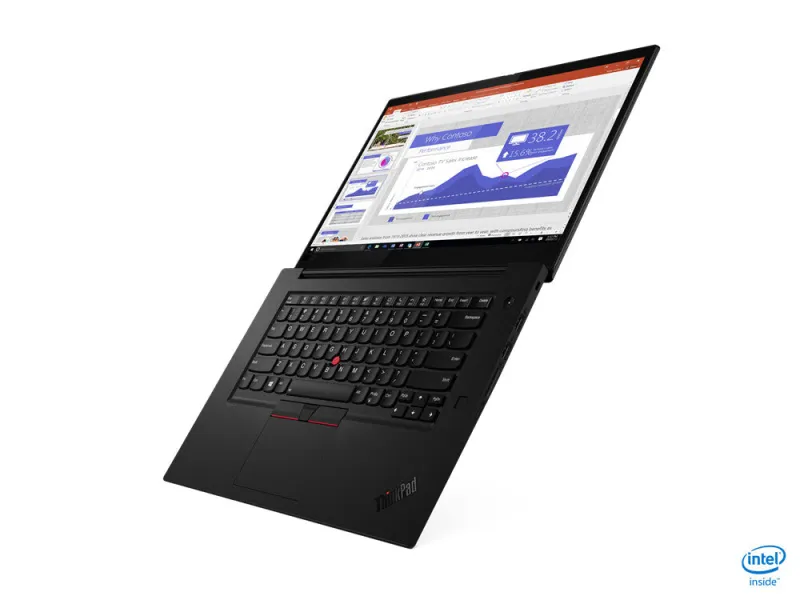

Lenovo ThinkPad X1 Extreme Gen 3 Intel® Core™ i9 i9-10885H Laptop 39.6 cm (15.6″) Touchscreen 4K Ultra HD 32 GB DDR4-SDRAM 1 TB SSD NVIDIA GeForce GTX 1650 Ti Max-Q Wi-Fi 6 (802.11ax) Windows 10 Pro UK English Black
- Laptop Clamshell Black
- Intel® Core™ i9 i9-10885H 2.4 GHz Processor cores: 8
- Touchscreen 39.6 cm (15.6″) 4K Ultra HD 3840 x 2160 pixels OLED LED backlight 16:9
- 32 GB DDR4-SDRAM 2933 MHz 1 x 32 GB
- 1 TB SSD
- NVIDIA GeForce GTX 1650 Ti Max-Q 4 GB Intel® UHD Graphics
- Wi-Fi 6 (802.11ax) Bluetooth 5.2
- Lithium Polymer (LiPo) 80 Wh 170 W
- Windows 10 Pro 64-bit
| Design |
| Housing material |
Aluminium, Carbon fibre |
| Form factor |
Clamshell |
| Colour name |
Black, Weave |
| Product colour |
Black |
| Product type |
Laptop |
| Display |
| High Dynamic Range (HDR) technology |
Dolby Vision |
| High Dynamic Range (HDR) supported |
Yes |
| Contrast ratio (typical) |
100000:1 |
| RGB colour space |
DCI-P3 |
| Colour gamut |
100% |
| Display brightness |
400 cd/m² |
| Anti-glare screen |
Yes |
| Native aspect ratio |
16:9 |
| LED backlight |
Yes |
| Panel type |
OLED |
| HD type |
4K Ultra HD |
| Touchscreen |
Yes |
| Display resolution |
3840 x 2160 pixels |
| Display diagonal |
39.6 cm (15.6″) |
| Processor |
| Configurable TDP-down |
35 W |
| Processor cache |
16 MB |
| Processor frequency |
2.4 GHz |
| Processor boost frequency |
5.3 GHz |
| Processor cores |
8 |
| Processor model |
i9-10885H |
| Processor generation |
10th gen Intel® Core™ i9 |
| Processor family |
Intel® Core™ i9 |
| Processor manufacturer |
Intel |
| Memory |
| Memory channels |
Dual-channel |
| Maximum internal memory |
64 GB |
| Memory slots |
2x SO-DIMM |
| Memory layout (slots x size) |
1 x 32 GB |
| Memory clock speed |
2933 MHz |
| Memory form factor |
SO-DIMM |
| Internal memory type |
DDR4-SDRAM |
| Internal memory |
32 GB |
| Storage |
| Compatible memory cards |
SD |
| Card reader integrated |
Yes |
| Optical drive type |
No |
| SSD form factor |
M.2 |
| SSD interface |
NVMe, PCI Express 3.0 |
| NVMe |
Yes |
| SSD capacity |
1 TB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
1 TB |
| Storage media |
SSD |
| Total storage capacity |
1 TB |
| Graphics |
| On-board graphics card model |
Intel® UHD Graphics |
| On-board graphics card family |
Intel® UHD Graphics |
| On-board GPU manufacturer |
Intel |
| Discrete graphics memory type |
GDDR6 |
| Discrete graphics card memory |
4 GB |
| Discrete graphics card model |
NVIDIA GeForce GTX 1650 Ti Max-Q |
| Discrete GPU manufacturer |
NVIDIA |
| Discrete graphics card |
Yes |
| On-board graphics card |
Yes |
| Audio |
| Built-in microphone |
Yes |
| Number of microphones |
2 |
| Speaker power |
2 W |
| Number of built-in speakers |
2 |
| Audio system |
Dolby Atmos |
| Audio chip |
Realtek ALC3286 |
| Camera |
| Privacy type |
Privacy shutter |
| Privacy camera |
Yes |
| Infrared (IR) camera |
Yes |
| Front camera HD type |
HD |
| Front camera |
Yes |
| Network |
| WWAN |
Installed |
| Near Field Communication (NFC) |
No |
| Bluetooth version |
5.2 |
| Bluetooth |
Yes |
| WLAN controller model |
Intel Wi-Fi 6 AX201 |
| WLAN controller manufacturer |
Intel |
| Antenna type |
2×2 |
| Wi-Fi standards |
Wi-Fi 6 (802.11ax) |
| Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
| Mobile network connection |
Yes |
| Ports & interfaces |
| USB Sleep-and-Charge ports |
1 |
| USB Sleep-and-Charge |
Yes |
| Combo headphone/mic port |
Yes |
| HDMI version |
2.0 |
| HDMI ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| Performance |
| Motherboard chipset |
Intel WM490 |
| Keyboard |
| Spill-resistant keyboard |
Yes |
| Numeric keypad |
No |
| Keyboard backlit |
Yes |
| Keyboard language |
UK English |
| Keyboard layout |
QWERTY |
| Pointing device |
ThinkPad UltraNav |
| Software |
| Operating system language |
English |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 10 Pro |
| Processor special features |
| CPU configuration (max) |
1 |
| Enhanced Intel SpeedStep Technology |
Yes |
| Intel 64 |
Yes |
| Intel Stable Image Platform Program (SIPP) |
Yes |
| Intel Flex Memory Access |
Yes |
| Intel Trusted Execution Technology |
Yes |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Execute Disable Bit |
Yes |
| Embedded options available |
No |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Intel Virtualization Technology (VT-x) |
Yes |
| Intel Software Guard Extensions (Intel SGX) |
Yes |
| Idle States |
Yes |
| Battery |
| Fast charging |
Yes |
| Battery capacity |
80 Wh |
| Battery technology |
Lithium Polymer (LiPo) |
| Power |
| USB Power Delivery (USB PD) |
Yes |
| DC-in jack |
Yes |
| AC adapter input voltage |
100 – 240 V |
| AC adapter frequency |
50 – 60 Hz |
| AC adapter power |
170 W |
| Security |
| Password protection type |
BIOS, Power on, Supervisor |
| Password protection |
Yes |
| Trusted Platform Module (TPM) |
Yes |
| Trusted Platform Module (TPM) version |
2.0 |
| Smart card reader |
No |
| Fingerprint reader |
Yes |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Operational conditions |
| Storage relative humidity (H-H) |
5 – 95% |
| Operating relative humidity (H-H) |
8 – 95% |
| Storage temperature (T-T) |
5 – 43 °C |
| Operating temperature (T-T) |
5 – 35 °C |
| Certificates |
| Compliance certificates |
RoHS |
| Sustainability |
| Sustainability certificates |
ENERGY STAR, EPEAT Gold |
| Weight & dimensions |
| Height |
18.7 mm |
| Depth |
245.7 mm |
| Width |
361.8 mm |
| Weight |
1.81 kg |
| General |
| Product family |
ThinkPad |
| Product series |
X |
