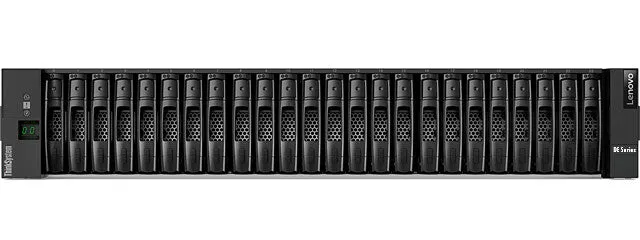

Lenovo ThinkSystem DE2000H disk array 0 TB Rack (2U) Black
- Small & Medium Business
- Rack (2U) Black
- USB connectivity Hot-swap drive bays
- 913 W
Lenovo ThinkSystem DE2000H is a low-cost, hybrid entry-level storage system that is designed to provide performance, simplicity, capacity, security, and high availability for small to large businesses. It delivers enterprise-class storage management capabilities with a wide choice of host connectivity options, flexible drive configurations, and enhanced data management features.
This product guide provides essential technical and pre-sales information on the Lenovo ThinkSystem DE2000H Hybrid Storage Array, its key features and specifications, components and options, and configuration guidelines.
This guide is intended for technical specialists, sales specialists, sales engineers, and IT architects who want to learn more about the ThinkSystem DE2000H Hybrid Storage Array and consider its use in their solutions.
| Storage | |
|---|---|
| Hot-swap drive bays | Yes |
| RAID levels | 0, 1, 3, 5, 6, 10 |
| Supported storage drive interfaces | SAS |
| Maximum supported storage capacity | 368.64 TB |
| Number of storage drives supported | 24 |
| Supported storage drive types | HDD & SSD |
| Total installed storage capacity | 0 TB |
| Installed storage drive type | No |
| Storage drives installed | No |
| Ports & interfaces | |
|---|---|
| Serial interface type | RJ-45 |
| RJ-45 ports quantity | 3 |
| USB connectivity | Yes |
| Design | |
|---|---|
| Certification | United States: FCC Part 15, Class A; UL 60950-1 and 62368-1 Canada: ICES-003, Class A; CAN/CSA-C22.2 60950-1 and 62368-1 Argentina: IEC60950-1 Mexico NOM European Union: CE Mark (EN55032 Class A, EN55024, IEC/EN60950-1 and 62368-1); ROHS Directive 2011/65/EU Russia, Kazakhstan, Belarus: EAC China: CCC GB 4943.1, GB 17625.1, GB 9254 Class A; CELP; CECP India: BIS Japan: VCCI, Class A Taiwan: BSMI CNS 13438, Class A; CNS 14336-1 Korea KN32/35, Class A Australia/New Zealand: AS/NZS CISPR 22 Class A |
| Built-in display | No |
| LED indicators | Yes |
| Product colour | Black |
| Chassis type | Rack (2U) |
| Device class | Small & Medium Business |
| Power | |
|---|---|
| AC input voltage | 100 – 240 V |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 2 |
| Power supply unit (PSU) capacity | 913 W |
| Weight & dimensions | |
|---|---|
| Weight | 24.6 kg |
| Height | 85 mm |
| Depth | 553 mm |
| Width | 449 mm |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 10 – 90% |
| Storage temperature (T-T) | -10 – 50 °C |
| Operating relative humidity (H-H) | 8 – 90% |
| Operating temperature (T-T) | 5 – 45 °C |
