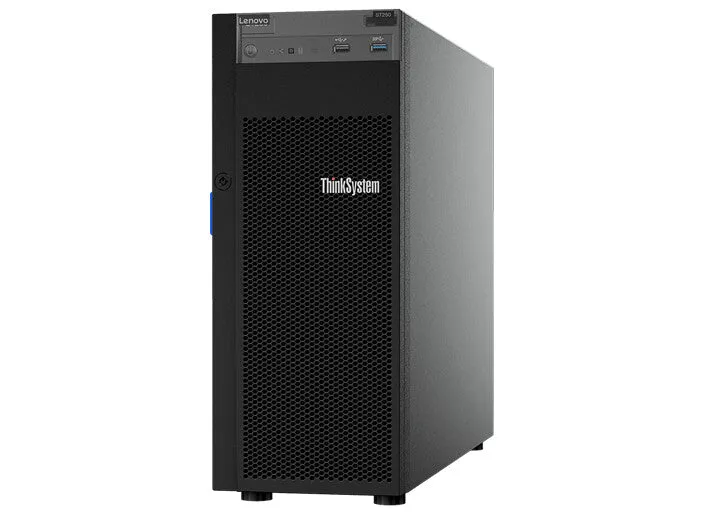

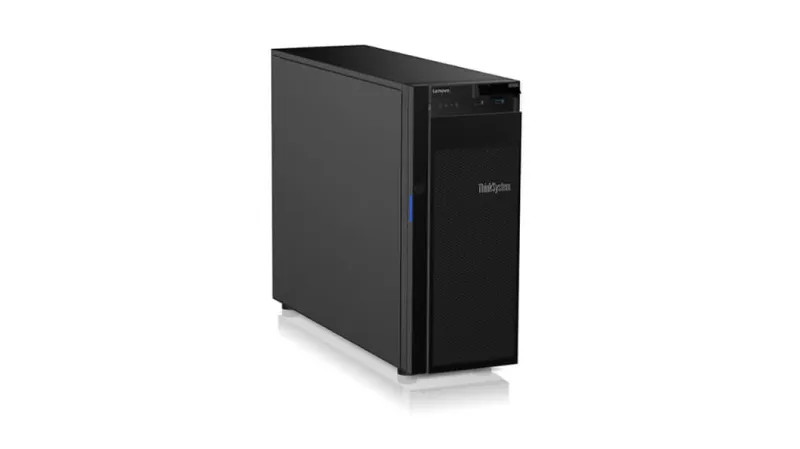

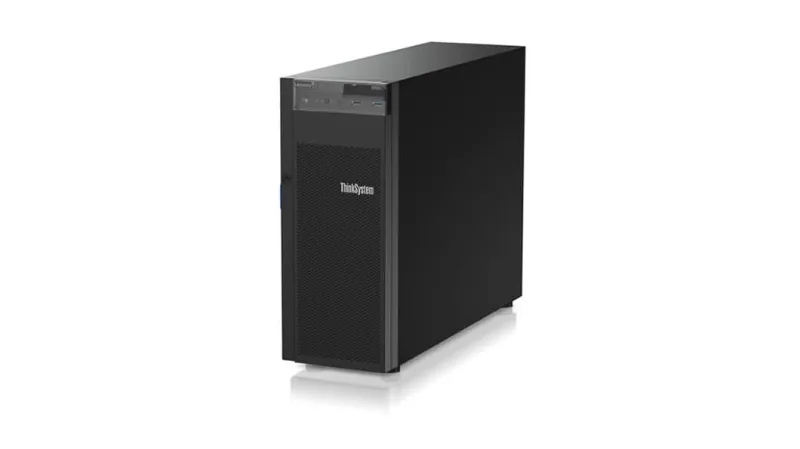

Lenovo ThinkSystem ST250 server 0 GB Tower (4U) Intel Xeon E E-2224 3.4 GHz 16 GB DDR4-SDRAM 550 W
- Intel Xeon E E-2224 3.4 GHz
- 16 GB 2666 MHz DDR4-SDRAM
- DVD±RW
- Tower (4U) 550 W
Enterprise-quality tower server
A 1S tower server featuring the latest Intel® Xeon® E-2200 processor, the ThinkSystem ST250 features enterprise compute and storage paired with office-quiet acoustics. The ThinkSystem ST250 is ideal for the retail application, branch office, or environment that may lack dedicated data center real estate, with Lenovo XClarity management offering a seamless IT administrative experience.
Enterprise capacity
The Thinksystem ST250 harnesses enterprise-level server power with the next-generation Intel® Xeon® E-2200 processors, featuring a performance bump of up to 34% generation-to-generation, in tandem with a wide range of storage options and seamless integration with Lenovo’s XClarity management system.
This capable tower server offers streamlined enterprise business applications including office automation, web serving and near-side data backup. Support for Intel Software Guard Extensions (SGX) provides security for application code and data, such as blockchain.
Enterprise flexibility
The ThinkSystem ST250 features a highly flexible design that deploys server performance where it’s needed and adapts as requirements change over time, including highly expandable storage configurations, GPU support, and multiple PCIe expansion slots.
Lenovo XClarity software provides easy-to-use systems management and dramatically reduces provisioning time, while an array of XClarity integrators allow utilization of XClarity through external IT applications to streamline IT management and contain costs.
Designed for ROBO use
A compact footprint and office-quiet cooling system make the ThinkSystem ST250 ideal for the remote office/ branch office environment.
Critical asset dependability is a result of components that increase server uptime, workplace productivity, and system security including dual-redundant power supplies and lockable front bezels. These are component solutions ideal for an environment without a dedicated on-site IT support system.
| Processor | |
|---|---|
| Thermal Monitoring Technologies | Yes |
| Maximum internal memory supported by processor | 128 GB |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Processor socket | LGA 1151 (Socket H4) |
| Processor lithography | 14 nm |
| Processor threads | 4 |
| Processor operating modes | 64-bit |
| Processor codename | Coffee Lake |
| Tcase | 69.3 °C |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2666 MHz |
| Maximum number of PCI Express lanes | 16 |
| Processor package size | 37.5 x 37.5 mm |
| Supported instruction sets | SSE4.1, SSE4.2, AVX 2.0 |
| Scalability | 1S |
| Embedded options available | No |
| Tjunction | 100 °C |
| PCI Express configurations | 1×16, 2×8, 1×8+2×4 |
| Thermal Design Power (TDP) | 71 W |
| Number of processors installed | 1 |
| Processor cache | 8 MB |
| Processor cores | 4 |
| Processor boost frequency | 4.6 GHz |
| Processor frequency | 3.4 GHz |
| Processor model | E-2224 |
| Processor family | Intel Xeon E |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Maximum internal memory | 64 GB |
| Memory slots | 4 |
| Memory clock speed | 2666 MHz |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 16 GB |
| Storage | |
|---|---|
| Optical drive type | DVD±RW |
| Hot-swap | Yes |
| Supported RAID controllers | Intel RSTe |
| RAID support | Yes |
| Number of HDDs supported | 4 |
| Total storage capacity | 0 GB |
| Graphics | |
|---|---|
| On-board graphics card model | Not available |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | No |
| Ports & interfaces | |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| Serial ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 3 |
| Expansion slots | |
|---|---|
| PCI Express slots version | 3.0 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x8 (Gen 3.x) slots | 1 |
| PCI Express x4 (Gen 3.x) slots | 1 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| Design | |
|---|---|
| Rack mounting | Yes |
| Product colour | Black |
| Chassis type | Tower (4U) |
| Performance | |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 1.2 |
| Software | |
|---|---|
| Compatible operating systems | Microsoft, SUSE, Red Hat, VMware vSphere |
| Processor special features | |
|---|---|
| Intel TSX-NI | Yes |
| Intel Clear Video Technology | No |
| Intel® Secure Key | Yes |
| Intel® OS Guard | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Processor ARK ID | 191036 |
| Intel® Quick Sync Video Technology | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| CPU configuration (max) | 1 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Power | |
|---|---|
| Number of main power supplies | 1 |
| Number of redundant power supplies supported | 2 |
| Power supply | 550 W |
| Redundant power supply (RPS) support | Yes |
| General | |
|---|---|
| Product family | ThinkSystem |
| Sustainability | |
|---|---|
| Sustainability certificates | ENERGY STAR |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84714100 |
| Weight & dimensions | |
|---|---|
| Depth | 566 mm |
| Height | 430 mm |
| Width | 175 mm |
- leaflet
- LSI Storage Authority Software
