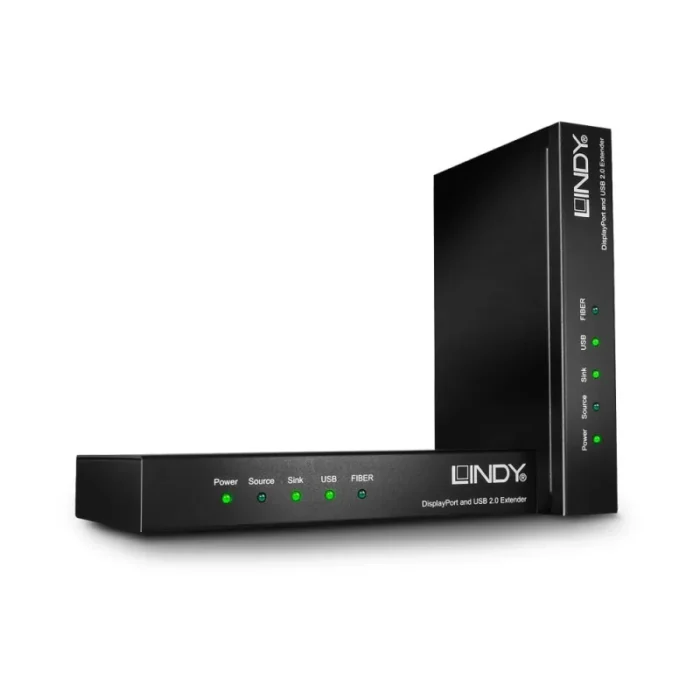

Lindy 200m Fibre Optic DisplayPort 1.2 & USB 2.0 KVM Extender
- Extends DisplayPort 1.4 and USB 2.0 signals up to 200m over a single cable
- Supports uncompressed DisplayPort signals up to 8K
- Supports the extension of up to four USB 2.0 devices
- Uses a single MPO/MTP Fibre Optic cable
Designed for highly demanding use cases the DisplayPort 1.4 & USB 2.0 KVM Extender is capable of supporting DisplayPort 1.4 resolutions up to Ultra HD 8K (7680×4320) at distances of up to 200m using a single MPO/MTP cable (OM3 12 Core Method A 1:1). Using fibre optic technology the Extender is capable of extending these Ultra HD video signals in real time without compression over long distances whilst also extending four USB 2.0 devices* such as a keyboard, mouse and USB drive. The Transmitter and Receiver units are electronically isolated from one another removing the risk of damage via ground loop.
Package Contents:
– Fibre Optic DisplayPort 1.4 & USB 2.0 KVM Extender (1 x Transmitter, 1 x Receiver)
– 2 x 5V 3A Multi-Country (EURO, UK, US & AUS) Power Supply
– LINDY Manual
| Features |
| LED indicators |
Yes |
| Material |
Metal |
| Product colour |
Black |
| Maximum digital resolution |
7680 x 4320 pixels |
| Cable types supported |
Fiber |
| Maximum transfer distance |
200 m |
| Connectivity technology |
Wired |
| Type |
Transmitter & receiver |
| Transmitter |
| Transmitter video port type |
DisplayPort |
| Receiver |
| Receiver local video port type |
DisplayPort |
| Power |
| Power consumption (receiver) (max) |
4 W |
| Power consumption (transmitter) (max) |
2.5 W |
| AC adapter output current |
3 A |
| AC adapter output voltage |
5 V |
| AC input voltage |
100 – 240 V |
| Weight & dimensions |
| Receiver weight |
600 g |
| Receiver height |
3 cm |
| Receiver depth |
12 cm |
| Receiver width |
18 cm |
| Transmitter weight |
600 g |
| Transmitter height |
3 cm |
| Transmitter depth |
12 cm |
| Transmitter width |
18 cm |
| Packaging content |
| Quick installation guide |
Yes |
| Manual |
Yes |
| AC adapter included |
Yes |
| Operational conditions |
| Storage temperature (T-T) |
-20 – 75 °C |
| Operating temperature (T-T) |
-10 – 50 °C |
| Technical details |
| Maximum resolution |
7680 x 4320 pixels |
| Weight |
600 g |
