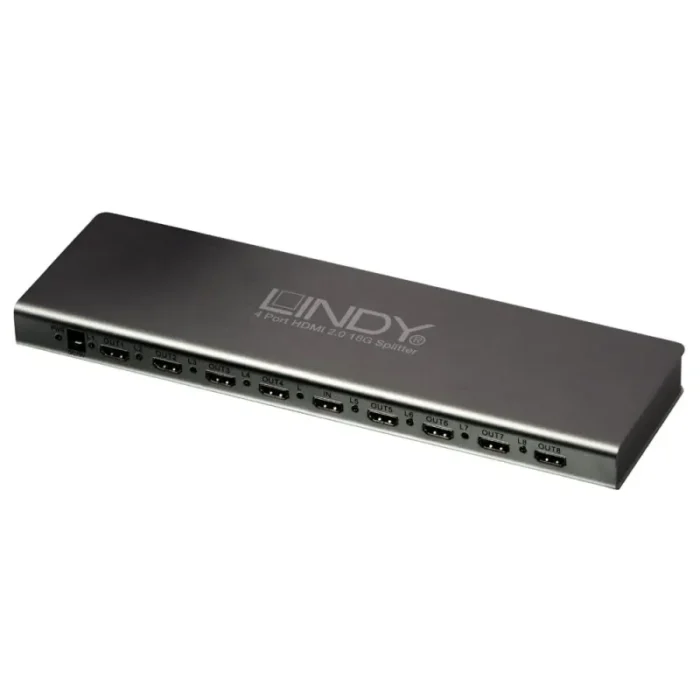

Lindy 38242 video splitter HDMI 8x HDMI
- Video port type: HDMI Video ports quantity: 9 Black
- DC-in jack
- 3840 x 2160 pixels
– Allows you to split a single UHD source to 8 UHD displays
– Supports video resolutions up to 4K2K@60Hz 8 bit including 3D 1080p
– Supports 7.1 channel of LPCM, Dolby TrueHD and DTS-HD Master Audio digital audio signals
– HDCP 2.2 compliant for use with the latest AV equipment
– 2 year warranty
This state of the art 4K HDMI 2.0 18G splitter is capable of displaying resolutions up to 3840 x 2160 to one UHD signal in and to 8 UHD signals out. Also HDR (High Dynamic Range) compatible to reproduce a greater dynamic range of luminosity when used with imaging and photography.
With full support for HDCP 2.2 and HDMI 2.0, you can be sure that this product is fully future proof and ready for the new and demanding audio and video signals on the market.
The built in EDID switch panel allows you to select the resolution setting to avoid incompatibilities with different brands of monitors & TV’s.
| Ports & interfaces |
| DC-in jack |
Yes |
| Video out |
8x HDMI |
| Video port type |
HDMI |
| Video ports quantity |
9 |
| Features |
| LED indicators |
Yes |
| Power LED |
Yes |
| Supported graphics resolutions |
3840 x 2160 |
| HDCP |
Yes |
| Colour depth |
36 bit |
| Full HD |
Yes |
| Maximum resolution |
3840 x 2160 pixels |
| Housing material |
Metal |
| Product colour |
Black |
| Power |
| Power consumption (typical) |
12.5 W |
| Weight & dimensions |
| Dimensions (WxDxH) |
310 x 90 x 25 mm |
| Weight |
1.31 kg |
| Operational conditions |
| Operating relative humidity (H-H) |
0 – 45% |
| Storage temperature (T-T) |
-15 – 55 °C |
| Technical details |
| Supported audio channels |
7.1 |
