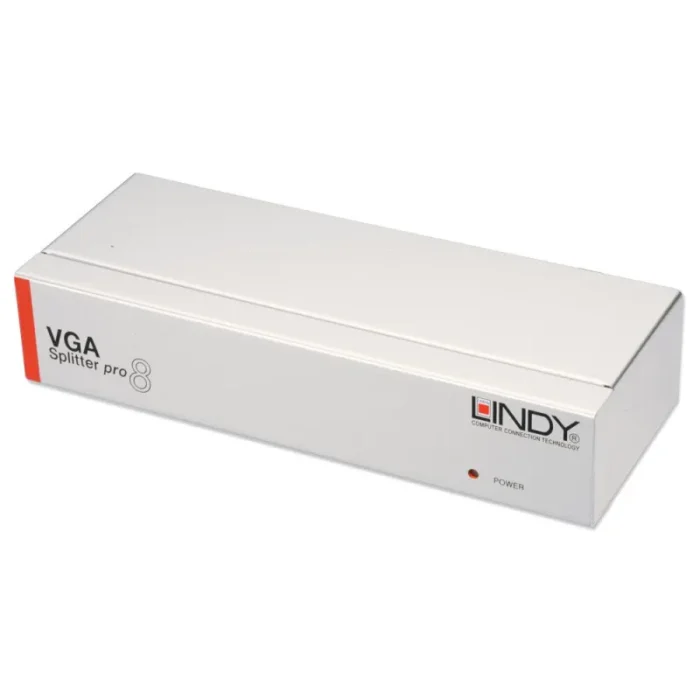

Lindy 8PORTVGASPLITTERPRO450MHZVIDEORESOL
- Video port type: VGA Video ports quantity: 8 Silver
- 2048 x 1536 pixels
- Maximum operating distance: 55 m
- Bandwidth: 450 MHz
- 1 pc(s)
Duplicate and amplify your PC ‘s video signals for transmission to multiple monitors!
This compact video splitter is a very effective solution for users who need to distribute multiple video signals over extremely long distances. It supports high resolution VGA signals of up to 2048 x 1536 (QXGA) and, when using LINDY Premium Gold cables, distances of up to 55m.

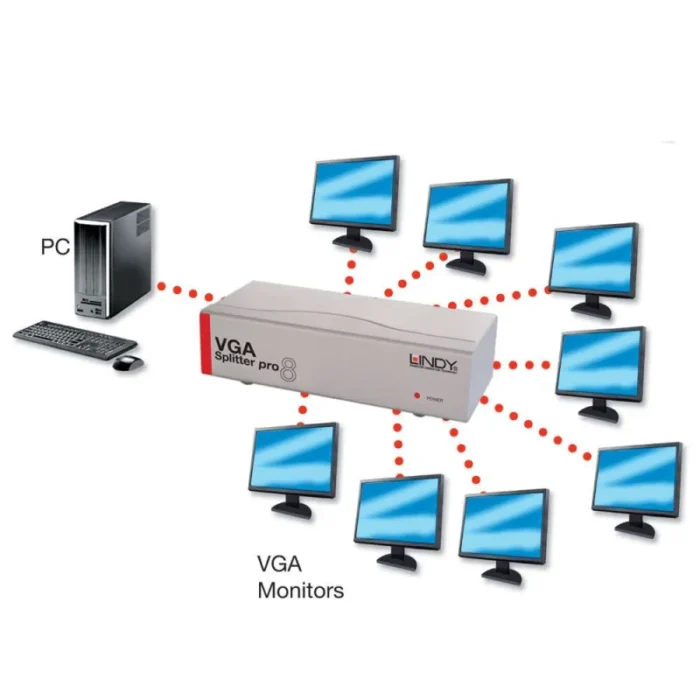

– Duplicates the video signal from your PC to 8 monitors
– Can be used with CRT and LCD/TFT displays
– Provides a simultaneous display on all connected monitors
– Enhances video signals for long distance broadcasting (up to 55m)
– Maximum Resolution: 2048 x 1536 (QXGA)
– High Bandwidth: 450MHz for each port
– Cascadable- several units may be daisy chained for additional displays
– Connectors: 15 Way HD Male (input) and 15 Way HD Female (output)
– Power supply included
| Ports & interfaces |
| Connector(s) |
1x HD15 M, 8x HD15 FM |
| Video out |
8x VGA |
| Video port type |
VGA |
| Video ports quantity |
8 |
| Features |
| Certification |
CE, UKCA, FCC, RoHS and REACH |
| Bandwidth |
450 MHz |
| Maximum operating distance |
55 m |
| Maximum resolution |
2048 x 1536 pixels |
| Product colour |
Silver |
| Power |
| Input current |
1 A |
| AC input voltage |
5 V |
| Weight & dimensions |
| Weight |
695 g |
| Height |
45 mm |
| Depth |
80 mm |
| Width |
200 mm |
| Packaging data |
| Quantity per pack |
1 pc(s) |
| Packaging content |
| Manual |
Yes |
| Operational conditions |
| Operating relative humidity (H-H) |
0 – 80% |
| Storage temperature (T-T) |
-20 – 60 °C |
| Operating temperature (T-T) |
0 – 50 °C |
