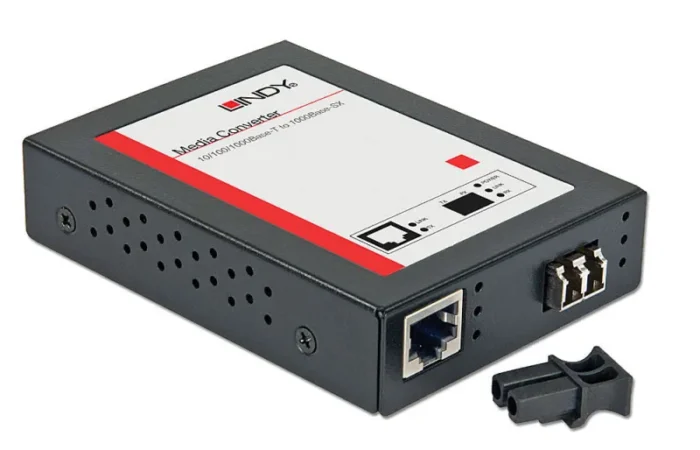

Lindy LC MULTIMODE MEDIA CONVERTOR RJ45
- Wired
- 1000 Mbit/s 550 m
- 1000BASE-LX
- 1000BASE-LX
- DC-in jack
- Multi-mode ST
- Black
1000Base-T (copper) to 1000Base-SX/LX (fibre)
Standards: IEEE 802.3, 802.3u, 802.3x
Connectors: LC (fibre), RJ-45 (copper)
Fibre Type: Multi-mode
Maximum fibre cable distance – 550m using 50/125µm multi-mode cable, 220m using 62.5/125µm multi-mode cable
Network data transfer rate: 2000Mbps (Full-duplex)
Auto MDI-X support for RJ-45 port connection
Status LED for Speed, Link/Activity, Full-duplex, Power
External power supply 5V DC, 2A
Dimensions: 74 x 102 x 22mm (WxDxH)
| Network |
| Cabling technology |
1000Base-T, 1000Base-LX |
| Duplex system |
Full |
| Fiber ethernet cabling technology |
1000BASE-LX |
| Copper ethernet cabling technology |
1000BASE-LX |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet interface type |
Fast Ethernet |
| Networking standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Converter output interface |
1000Base-LX |
| Converter input interface |
1000Base-LX |
| Maximum data transfer rate |
1000 Mbit/s |
| Performance |
| Fiber mode structure |
Multi-mode |
| Maximum transfer distance |
550 m |
| Features |
| Compliance industry standards |
IEEE 802.3, 802.3u, 802.3x |
| LED indicators |
Yes |
| Product colour |
Black |
| Ports & interfaces |
| DC-in jack |
Yes |
| Fiber optic connector |
ST |
| Connectivity technology |
Wired |
| Power |
| Output current |
2.6 A |
| Output voltage |
5 V |
| Input voltage |
100 – 240 V |
| Weight & dimensions |
| Height |
22 mm |
| Depth |
102 mm |
| Width |
74 mm |
| Operational conditions |
| Operating relative humidity (H-H) |
5 – 90% |
| Storage temperature (T-T) |
-40 – 70 °C |
| Operating temperature (T-T) |
-10 – 55 °C |
| Packaging content |
| Manual |
Yes |
| User guide |
Yes |
| Quick installation guide |
Yes |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
| Other features |
| Fiber type |
LC |
| Connector(s) |
1x DC, 1x RJ-45,1x LC |
| Dimensions (WxDxH) |
74 x 102 x 22 mm |
| Interface |
Ethernet |
| Power requirements |
5V DC, 2A |
| Cable type |
50/125µm, 62.5/125µm |
| Full duplex |
Yes |
