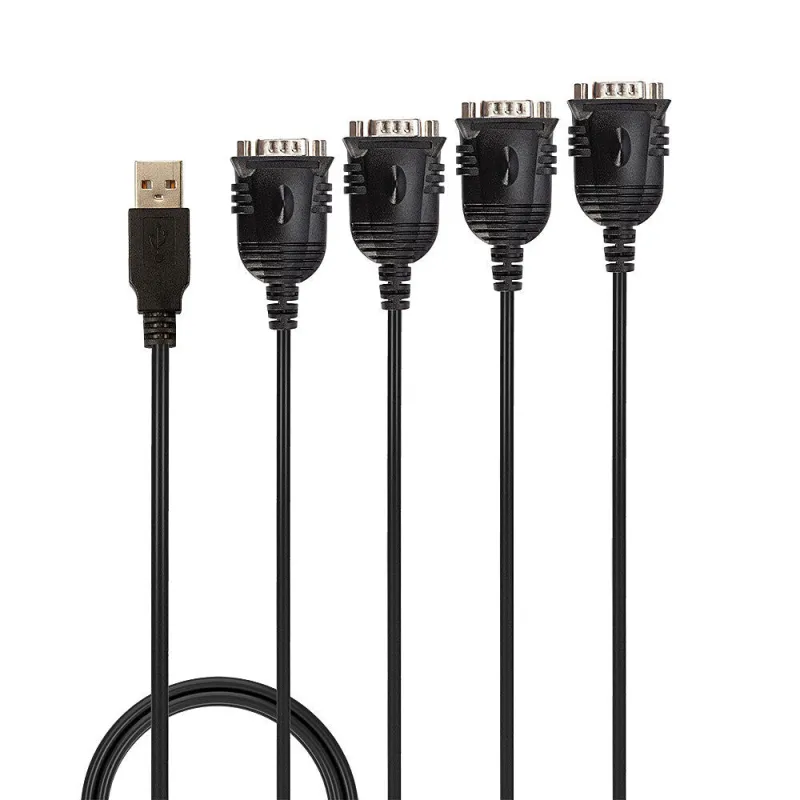

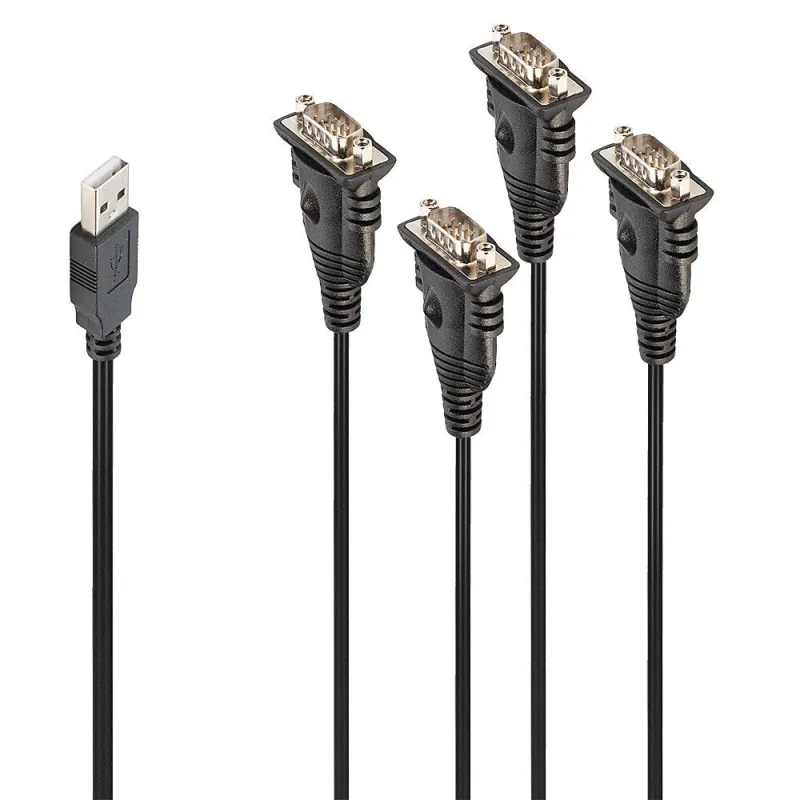

Lindy USB to 4 Port Serial Converter
- Connects four standard serial devices via USB Type A
- With four flexible cabled 9 Way D Male RS232 connectors
- Plug and Play – USB bus-powered with no external power supply required
- Compatible with Windows and Linux operating systems
- 2 year warranty
The Lindy USB to 4 Port Serial Converter allows the user to easily connect four peripheral devices featuring 9 Way Serial RS232 to a USB Type A port. Its functional design with cabled connectors offers more flexibility compared with standard box converters. It is an ideal solution for connecting legacy RS232 equipment such as barcode scanners and industrial devices to notebooks,in retail, IT and digital signage scenarios.
This converter is compatible with both Windows and Linux operating systems and as it is USB bus-powered, it can be installed quickly and simply with no need for additional power supplies.
| Features | |
|---|---|
| Chipset | PL2303RA |
| Bandwidth | 230 Kbit/s |
| Jacket material | Plastic |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 2 | DB-9 |
| Connector 1 | USB Type-A |
| Cable length | 0.94 m |
| Product colour | Black |
| Packaging data | |
|---|---|
| Package depth | 194 mm |
| Package width | 174 mm |
| Quantity per pack | 1 pc(s) |
| Weight & dimensions | |
|---|---|
| Weight | 200 g |
| Connector 1 dimensions (WxDxH) | 15 x 35 x 8 mm |
| Connector 2 dimensions (WxDxH) | 33 x 58 x 16 mm |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 0 – 80% |
| Storage temperature (T-T) | -10 – 65 °C |
| Operating temperature (T-T) | 0 – 50 °C |
| Certificates | |
|---|---|
| Compliance certificates | CE, REACH, RoHS |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
