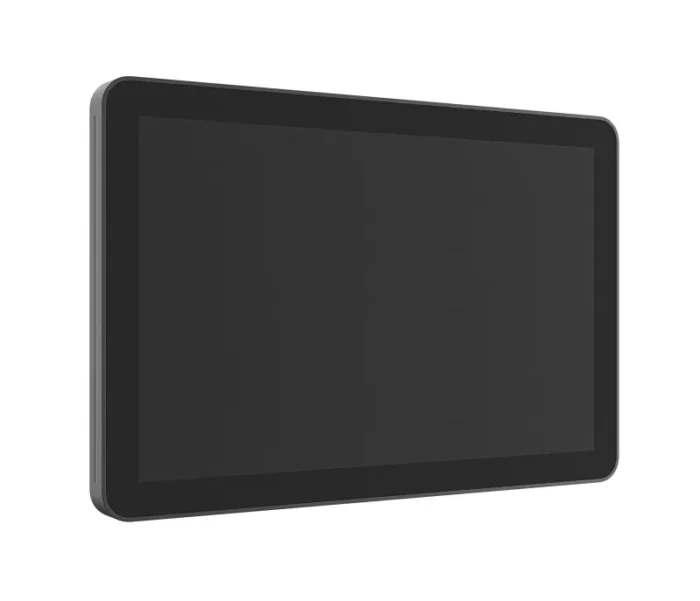

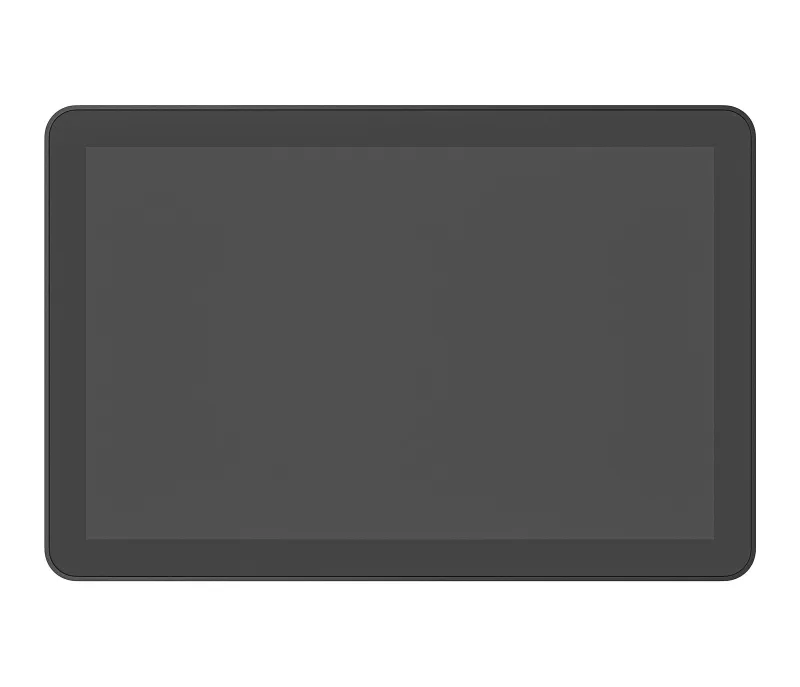

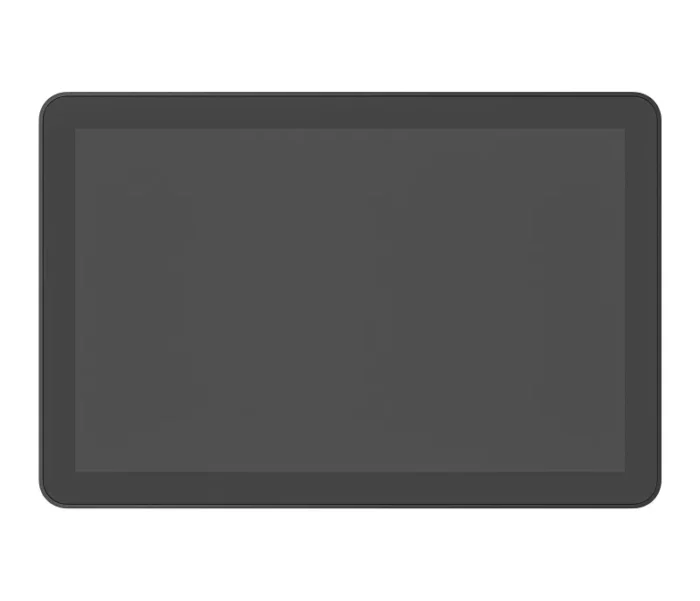

Logitech Tap Scheduler in Graphite
- 25.6 cm (10.1″) 1280 x 800 pixels Display technology: IPS
- 400 cd/m²
- Touchscreen
- VESA mounting
- Ethernet LAN Bluetooth Wi-Fi 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
- Power source type: PoE
- Graphite
Logitech Tap Scheduler
Purpose-built scheduling panel for meeting rooms
RIGHT PLACE, RIGHT TIME
Tap Scheduler makes it easy to see meeting details and reserve a room for ad hoc or future meetings. Easily deploy as a purpose-built scheduling panel for leading room scheduling solutions to help workers find and claim the right space.
GREEN MEANS GO
Quickly find an open room through colored LED lights that show availability at a distance.
CLEAN AND EASY INSTALL
Included mounts and clean cabling help ensure a tidy and professional setup.
Glass Mounting
Secure Tap Scheduler while maintaining a clean look on both sides of the glass.
Mullion Mounting
Secure Tap Scheduler to a door or window frame for greater visibility using the included mount.
Wall Mounting
Place and secure Tap Scheduler anywhere on a wall.
Cable Management
Hide cables in the wall, mullion, or in other directions, with multiple routing options.
PURPOSE-BUILT AS A SCHEDULING PANEL

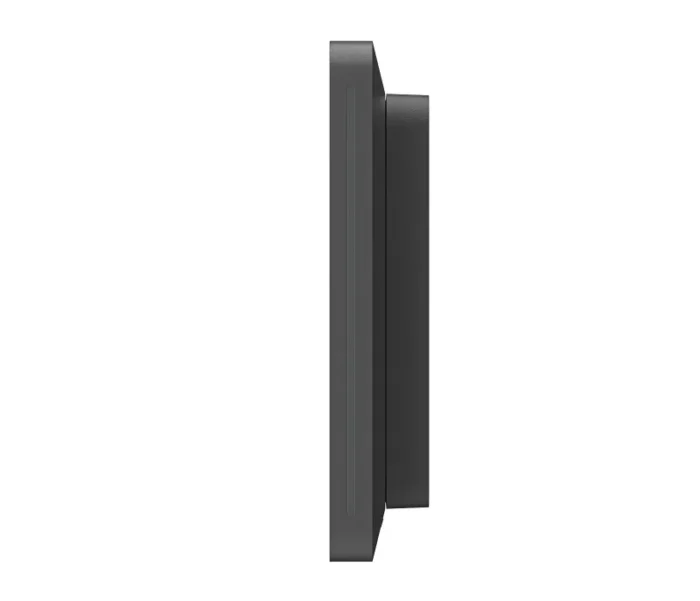

Tap Scheduler was designed for easy viewing and usability, with a spacious screen and a sleek, unobtrusive profile. Count on Tap Scheduler for reliable performance with durable components that are built to last.
MAKE THE MOST OF YOUR SPACE
Easily add Tap Scheduler to a variety of meeting rooms, from phone booths to video rooms to hangout nooks, helping employees quickly find the right meeting location. Simple installations and an intuitive user experience drive fast deployment and adoption.
PICK YOUR PLATFORM
Enable a seamless meeting experience through Tap Scheduler and Logitech’s suite of room solutions, which integrate with Microsoft Teams®, Zoom Rooms™, and other service providers to raise the bar on collaboration.
SIMPLE TO MANAGE WITH LOGITECH SYNC
With Logitech Sync, you can monitor and manage Tap Scheduler along with your other meeting room devices from one single platform.
UP TO THREE YEAR WARRANTY
Ensure peace of mind with an extended warranty for Tap Scheduler, adding one additional year to the standard two-year limited hardware warranty.
| Display | |
|---|---|
| Fingerprint resistant | Yes |
| Number of simultaneous touchpoints | 10 |
| Touchscreen technology | Capacitive |
| Touchscreen | Yes |
| Contrast ratio (typical) | 1000:1 |
| Display brightness | 400 cd/m² |
| Viewing angle | 170° |
| LED backlight | Yes |
| Display resolution | 1280 x 800 pixels |
| Display technology | IPS |
| Display diagonal | 25.6 cm (10.1″) |
| Design | |
|---|---|
| LED indicators | Yes |
| Oleophobic coating | Yes |
| Ambient light sensor | Yes |
| Accelerometer | Yes |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Housing colour | Graphite |
| Audio | |
|---|---|
| Built-in speaker(s) | No |
| Built-in microphone | No |
| Camera | |
|---|---|
| Built-in camera | No |
| Network | |
|---|---|
| Networking standards | IEEE 802.3af |
| Security algorithms | 128-bit AES |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ethernet LAN | Yes |
| Bluetooth version | 5.0 |
| Bluetooth | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Power | |
|---|---|
| Power source type | PoE |
| Weight & dimensions | |
|---|---|
| Weight | 700 g |
| Height | 165 mm |
| Depth | 28.5 mm |
| Width | 246.2 mm |
| Packaging data | |
|---|---|
| Package weight | 2.17 kg |
| Package height | 93 mm |
| Package depth | 346 mm |
| Package width | 247 mm |
| Packaging content | |
|---|---|
| Mounting kit | Yes |
| Mounting bracket(s) included | Yes |
| Quick start guide | Yes |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -40 – 70 °C |
| Operating temperature (T-T) | 0 – 40 °C |
| Operating relative humidity (H-H) | 10 – 95% |
| Logistics data | |
|---|---|
| Master (outer) case gross weight | 4.66 kg |
| Master (outer) case length | 358 mm |
| Master (outer) case height | 199 mm |
| Master (outer) case width | 260 mm |
