MSI Cubi N ADL Intel N100 Desktop PC, NUC, SFF, Mini Computer, HTPC, (4GB RAM, 128GB SSD, Windows 11 PRO), UHD Graphics/Type C/HDMI/DisplayPort/Dual LAN/WiFi 5/BT 5.1/VESA
- Windows 11 Pro
- Featuring Intel Alder Lake Processors
- Support 4K UHD Display
- Support up to three displays that allows you to see more and do more
- Dual network solution for both internet and intranet
- Get all the performance benefits from USB 3.2 Gen 2 and enjoy the best data transmission experience
- dTPM 2.0 design secures your confidential data with encryption keys
- Supports standard VESA-mount
- Supports MSI Cloud Center & MSI Center app
“Cubi N ADL: The Energy Efficient Mini-PC

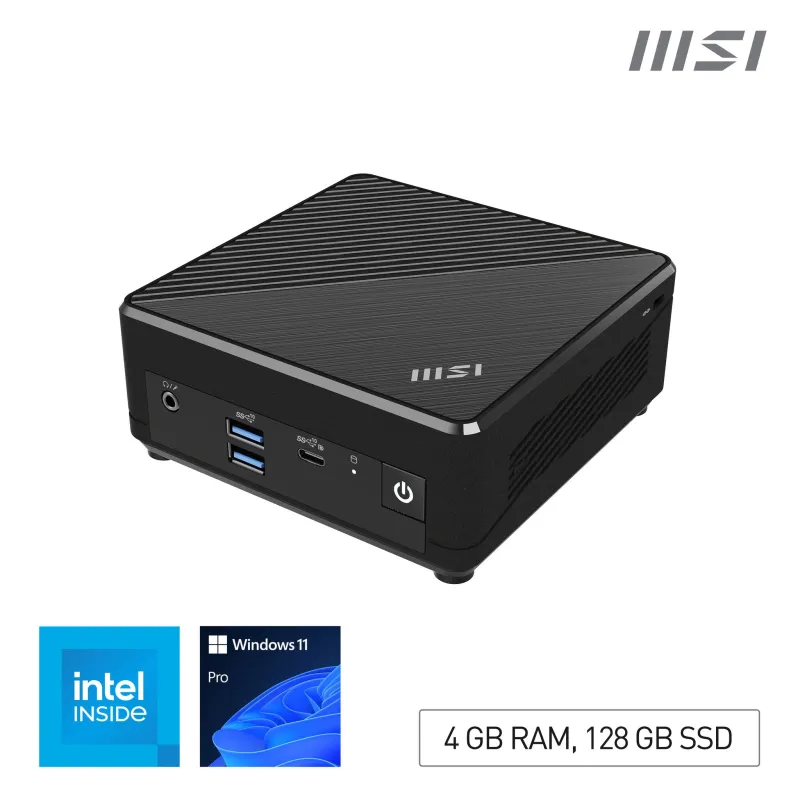

The MSI Cubi N ADL is a small yet powerful mini-desktop with an incredibly compact 0.66L design suitable for commercial office work or use as home-theatre/entertainment PC (supports UHD/4K 60Hz display output & triple-monitor setups).
The Cubi N ADL-N100 FS 4GB 128GB W11P configuration is a complete system equipped with an Intel N100 processor, 4 GB of DDR4-3200MHz memory, 128 GB of M.2 SSD storage, Intel Wi-Fi 9462 & Bluetooth 5.1 connectivity, as well as Windows 11 Pro software pre-installed.
The easy-to-upgrade SFF case can house both M.2 (with auto switch) & 2.5-inch SSD storage, as well as up to 16 GB of system memory (1 x DDR4 3200MHz SO-DIMMs), and is VESA-mountable for a cleaner desktop.
Thanks to its cooling-optimized layout and low-noise fan, the MSI Cubi N ADL is not only an energy-efficient computing solution but is also very quiet, running at a whisper-level 28 dBA while in idle mode.

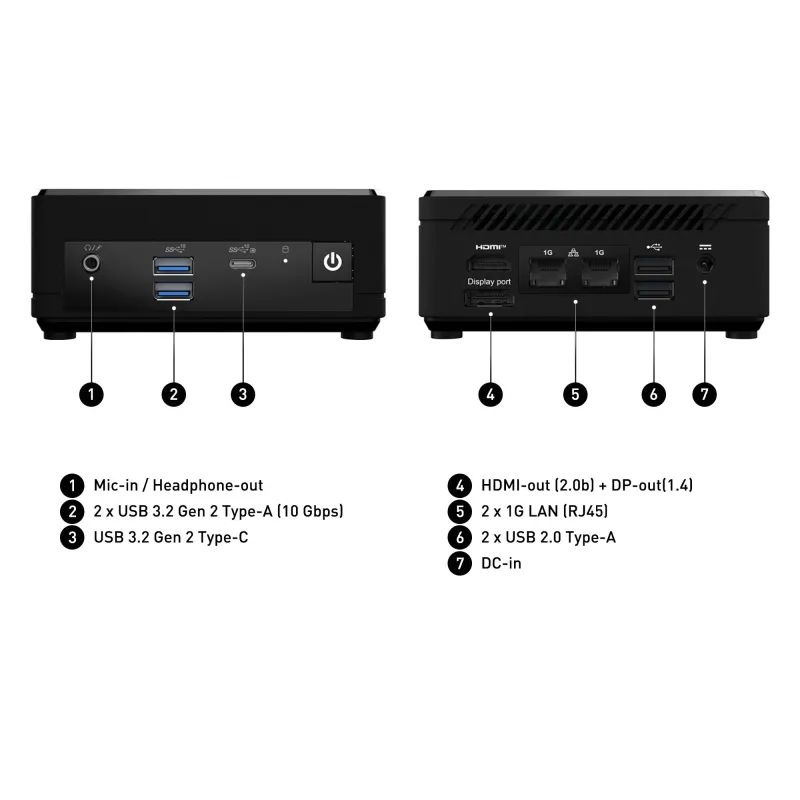

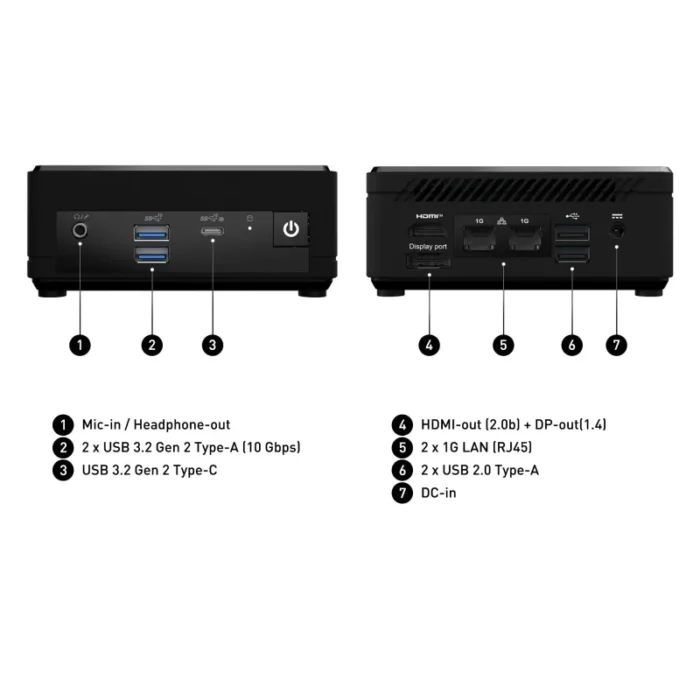

Front I/O connectivity includes a Mic-in/Headphone-out combo jack, USB 3.2 Gen 2 Type-C (DP Alt.) and dual USB 3.2 Gen 2 Type-A ports. The rear I/O features dual 1Gbps ethernet LAN ports, HDMI 2.1, DisplayPort 1.4, and dual USB 2.0 ports.”
| Processor | |
|---|---|
| Number of processors supported | 1 |
| Number of processors installed | 1 |
| Processor codename | Alder Lake-N |
| Thermal Design Power (TDP) | 6 W |
| Processor lithography | 10 nm |
| Processor operating modes | 32-bit |
| Processor cache type | Smart Cache |
| Processor cache | 6 MB |
| Processor frequency | 3.4 GHz |
| Processor boost frequency | 3.4 GHz |
| Processor threads | 4 |
| Processor cores | 4 |
| Processor model | N100 |
| Processor family | Intel® N |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Memory clock speed | 3200 MHz |
| Memory slots | 1x SO-DIMM |
| Memory layout (slots x size) | 1 x 4 GB |
| Internal memory type | DDR4-SDRAM |
| Maximum internal memory | 16 GB |
| Internal memory | 4 GB |
| Storage | |
|---|---|
| Card reader integrated | No |
| SSD form factor | M.2 |
| SSD interface | M.2 |
| SSD capacity | 128 GB |
| Number of SSDs installed | 1 |
| Total SSDs capacity | 128 GB |
| Number of storage drives supported | 2 |
| Number of storage drives installed | 1 |
| Storage media | SSD |
| Optical drive type | No |
| Total storage capacity | 128 GB |
| Graphics | |
|---|---|
| On-board graphics card model | Intel® UHD Graphics |
| On-board graphics card family | Intel® UHD Graphics |
| On-board GPU manufacturer | Intel |
| Discrete graphics card model | Not available |
| On-board graphics card | Yes |
| Discrete graphics card | No |
| Network | |
|---|---|
| Bluetooth version | 5.1 |
| Bluetooth | Yes |
| WLAN controller model | Intel Dual Band Wireless-AC 9462 |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| LAN controller | Realtek RTL8111H |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN | Yes |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| DVI port | No |
| Intel® Thunderbolt 4 | No |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 2 |
| Design | |
|---|---|
| Product family | Intel NUC |
| Country of origin | China |
| Housing material | Plastic |
| Product colour | Black |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Number of 2.5″ bays | 1 |
| Water cooling system | No |
| Placement supported | Horizontal/Vertical |
| VESA mounting | Yes |
| Volume | 0.66 L |
| Colour name | Black |
| Chassis type | Mini PC |
| Performance | |
|---|---|
| Motherboard chipset | Intel SoC |
| Powered by | MSI |
| Market positioning | Everyday |
| Product type | Mini PC |
| Software | |
|---|---|
| Drivers included | Yes |
| Operating system installed | Windows 11 Pro |
| Power | |
|---|---|
| Power supply | 65 W |
| Weight & dimensions | |
|---|---|
| Package weight | 1.39 kg |
| Package height | 94 mm |
| Package depth | 220 mm |
| Package width | 205 mm |
| Weight | 540 g |
| Height | 53.7 mm |
| Depth | 124 mm |
| Width | 124 mm |
| Packaging content | |
|---|---|
| Manual | Yes |
| AC adapter included | Yes |
| Power cord included | Yes |
| VESA mount included | Yes |
| Keyboard included | No |
| Mouse included | No |
| Display included | No |
| General | |
|---|---|
| Product family | Cubi |
| Product series | N |
| Other features | |
|---|---|
| Warranty period | 2 year(s) |
