MSI Cubi N ADL S Intel N100 Barebone, NUC, SFF, Mini Computer, HTPC, (NO RAM, NO Storage, NO OS), Fanless/UHD Graphics/Type C/HDMI/DisplayPort/Dual LAN/WiFi 5/BT 5.1/VESA
- Featuring Intel Alder Lake Processors
- Fanless heatsink for silent operation
- Support 4K UHD Display
- Support up to three displays that allows you to see more and do more
- Dual network solution for both internet and intranet
- Get all the performance benefits from USB 3.2 Gen 2 and enjoy the best data transmission experience
- dTPM 2.0 design secures your confidential data with encryption keys
- Supports standard VESA-mount
“Cubi N ADL S: The Energy Efficient Mini-PC

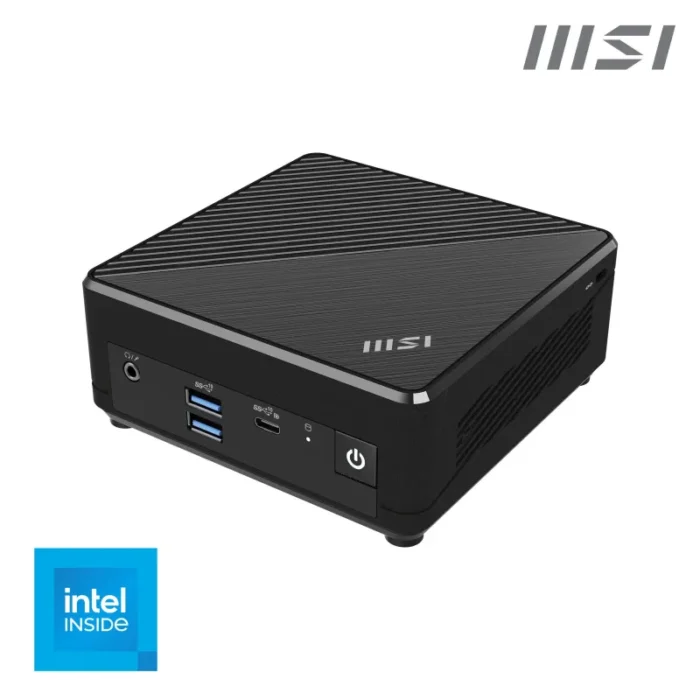

The MSI Cubi N ADL S is a small yet powerful mini-desktop with an incredibly compact 0.66L design suitable for commercial office work or use as home-theatre/entertainment PC (supports UHD/4K 60Hz display output & triple-monitor setups).
The Cubi N ADL S N100 BB configuration is a barebone equipped with an Intel N100 processor and fanless heatsink, allowing upto 16GB of DDR4-3200MHz memory, M.2 SSD storage, Intel Wi-Fi 9462 & Bluetooth 5.1 connectivity.
The easy-to-upgrade SFF case can house M.2 (with auto switch), as well as up to 16 GB of system memory (1 x DDR4 3200MHz SO-DIMMs), and is VESA-mountable for a cleaner desktop.

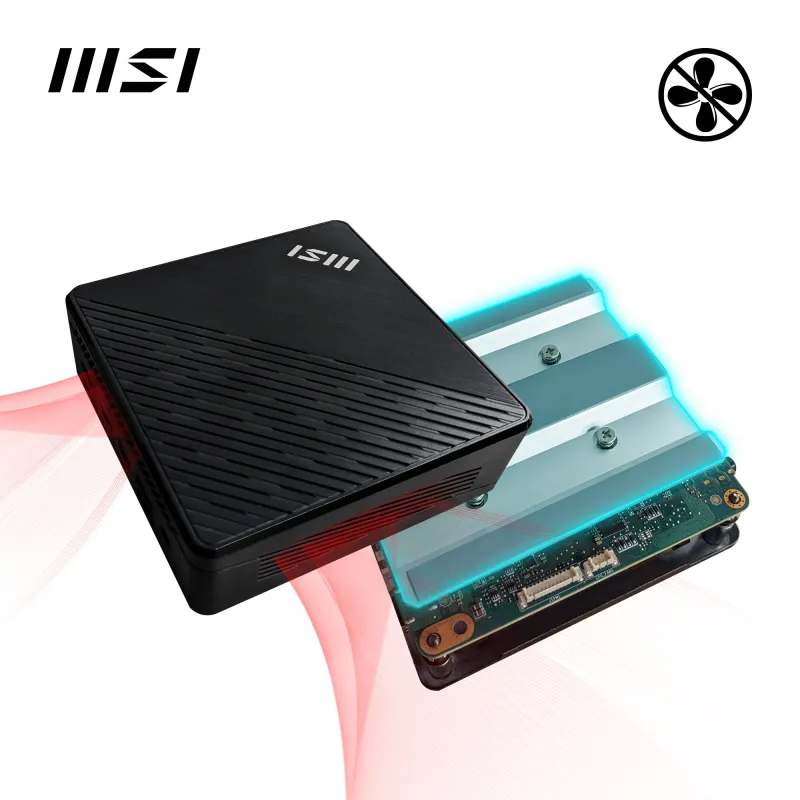

Thanks to its cooling-optimized layout and low-noise fan, the MSI Cubi N ADL is not only an energy-efficient computing solution but is also very quiet, due to it’s fanless heatsink design.

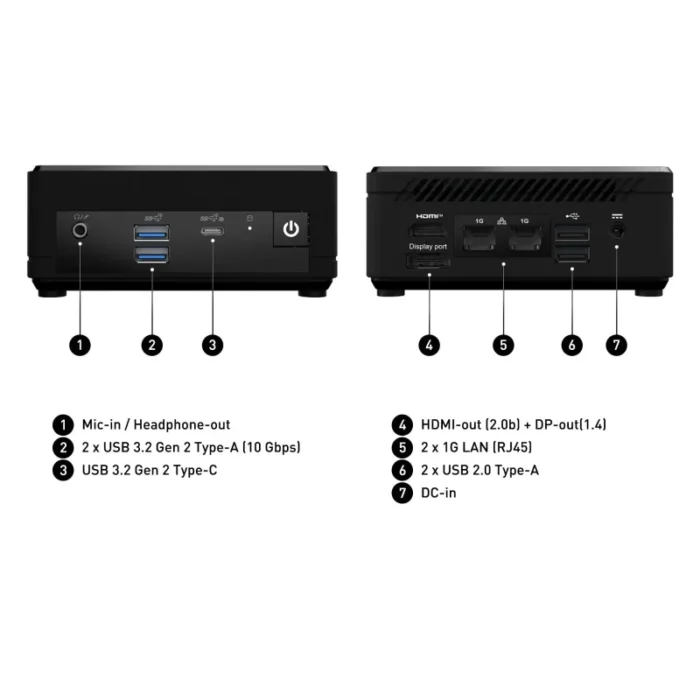

Front I/O connectivity includes a Mic-in/Headphone-out combo jack, USB 3.2 Gen 2 Type-C (DP Alt.) and dual USB 3.2 Gen 2 Type-A ports. The rear I/O features dual 1Gbps ethernet LAN ports, HDMI 2.1, DisplayPort 1.4, and dual USB 2.0 ports.”
| Processor | |
|---|---|
| Processor lithography | 10 nm |
| Processor frequency | 3.4 GHz |
| Processor threads | 4 |
| Processor cores | 4 |
| Processor model | N100 |
| Processor manufacturer | Intel |
| Built-in processor | Yes |
| Memory | |
|---|---|
| Maximum internal memory | 16 GB |
| Supported memory clock speeds | 3200 MHz |
| Number of memory slots | 1 |
| Memory slots type | SO-DIMM |
| Storage | |
|---|---|
| Card reader integrated | No |
| Number of storage drives supported | 1 |
| NVMe | Yes |
| Storage drive interface | M.2 |
| SSD form factor | M.2 |
| Storage drive sizes supported | M.2 |
| Supported storage drive types | SSD |
| Graphics | |
|---|---|
| On-board graphics card model | Intel® UHD Graphics |
| Graphics card family | Intel |
| On-board graphics card | Yes |
| Audio | |
|---|---|
| Built-in speaker(s) | No |
| Network | |
|---|---|
| Bluetooth | Yes |
| Bluetooth version | 5.1 |
| LAN controller | Realtek RTL8111H |
| WLAN controller model | Intel Dual Band Wireless-AC 9462 |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| Combo headphone/mic port | Yes |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |
| DVI port | No |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 2 |
| Expansion slots | |
|---|---|
| Number of M.2 (M) slots | 1 |
| Design | |
|---|---|
| Product type | Mini PC barebone |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| VESA mounting | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Housing material | Plastic |
| LED indicators | System |
| On/off switch | Yes |
| Cooling type | Passive |
| Product colour | Black |
| Chassis type | 0.66L sized PC |
| Performance | |
|---|---|
| Compatible processor series | Intel Processor N |
| Number of processors supported | 1 |
| Motherboard chipset | Intel SoC |
| Motherboard form factor | NUC |
| General | |
|---|---|
| Product family | Cubi |
| Product series | N |
| Power | |
|---|---|
| Number of power supply units | 1 |
| Power supply | 65 W |
| Power supply type | External AC adapter |
| Weight & dimensions | |
|---|---|
| Package weight | 1.39 kg |
| Package height | 94 mm |
| Package depth | 220 mm |
| Package width | 205 mm |
| Weight | 540 g |
| Height | 53.7 mm |
| Depth | 124 mm |
| Width | 124 mm |
| Packaging content | |
|---|---|
| Keyboard included | No |
| Mouse included | No |
| Display included | No |
| Drivers included | Yes |
| Quick start guide | Yes |
| AC adapter included | Yes |
| Power cord included | Yes |
| Other features | |
|---|---|
| Country of origin | China |
| Warranty period | 2 year(s) |
