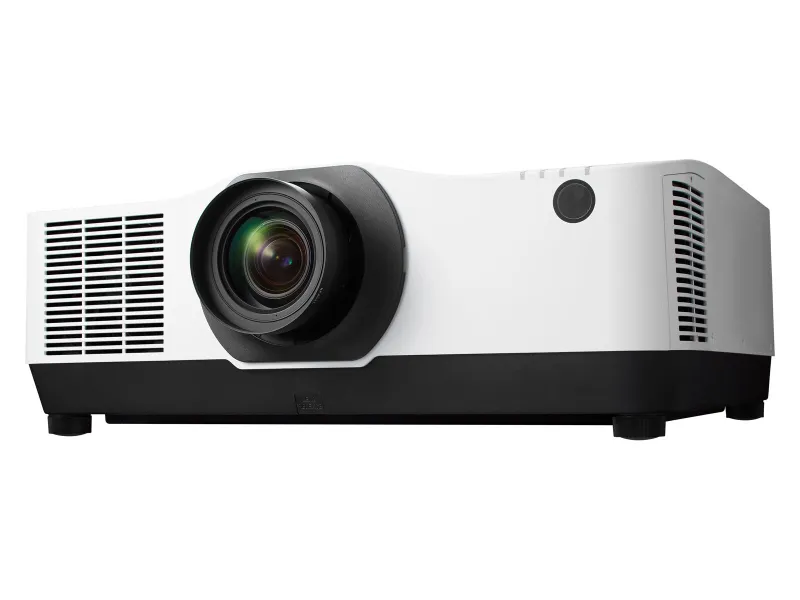

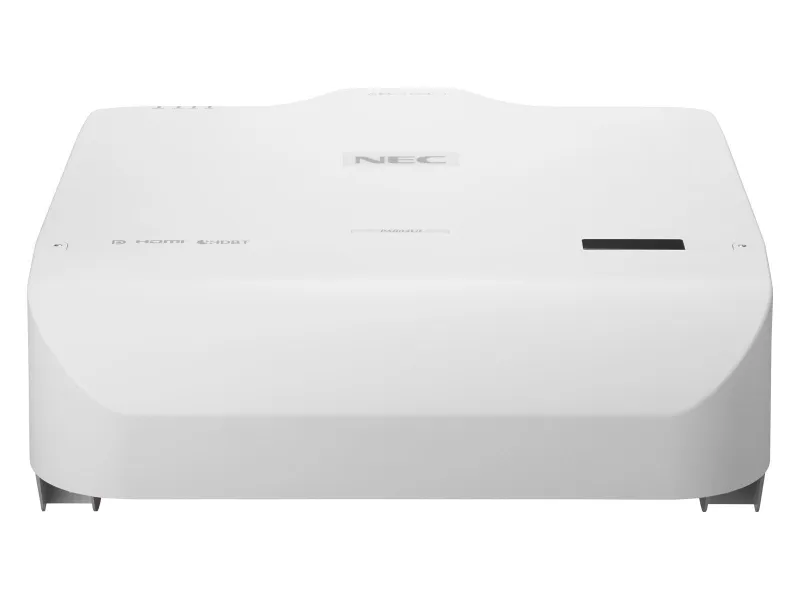

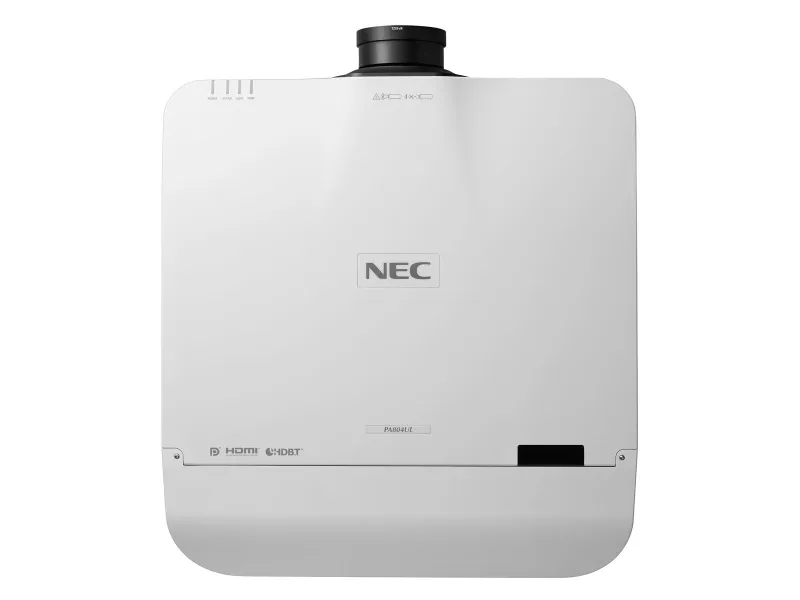

NEC PA804UL Large venue projector 8200 ANSI lumens 3LCD WUXGA (1920×1200) 3D White
- No lamp replacement – up to 20,000 h maintenance free operation possible due to Laser Light Source
- No filter service required – a completely sealed optical laser LCD engine allows a filter-free design. Brilliant colour brightness is maintained and servicing costs need no longer feature in your budget
- Super Silent operation – patented sealed light engine incorporating innovative fan design not only protects against dust ingress but dramatically reduces noise
- Impress with vivid colour & contrast – brilliant white and wide colour space with high dynamic contrast supporting HDR10 standard via HDMI interface
- Incredible visualisation capabilities – impressive free tilt and portrait installation capability, unique geometric adjustment, picture in picture, tiling, 3D support and camera based blending/stacking up to 4K
A new class of silent projection
Now even larger spaces can benefit from NEC’s innovation in super-silent technology with the 8,200 lumens PA804UL laser projector, ensuring all attention is focused on the stunning image delivery.
Featuring unprecedented White Point performance, factory pre-calibrated for the perfect white, 12-bit colour signal processing and wide colour space, the audience will experience extraordinarily vivid colour saturation and contrast levels.
With the newly designed sealed optical engine there is no possibility of dust contaminating the LCD panels for long-term picture stability and brilliant colour brightness. What’s more, with our unique filterless LCD projector design and no lamp replacement, service costs are dramatically reduced for a low cost of ownership and up to 20,000 hours life-time.
Fully compatible with previous generation lamp-based PA Series mechanical lenses, NEC customers can easily make the transition to benefit from the latest laser technology. The PA804UL is a professional installation projector featuring advanced installation capabilities as demanded by higher education, leisure and museum applications.
| Projector | |
|---|---|
| Keystone correction, horizontal | -40 – 40° |
| Keystone correction, vertical | -40 – 40° |
| Horizontal scan range | 15 – 153 kHz |
| Vertical scan range | 48 – 120 Hz |
| Projector brightness (economic mode) | 7500 ANSI lumens |
| Projection distance | 0.7 – 50.9 m |
| Screen size compatibility | 1016 – 12700 mm (40 – 500″) |
| Native aspect ratio | 16:10 |
| Contrast ratio (typical) | 3000000:1 |
| Projector native resolution | WUXGA (1920×1200) |
| Projection technology | 3LCD |
| Projector brightness | 8200 ANSI lumens |
| Light source | |
|---|---|
| Service life of light source | 20000 h |
| Light source type | Laser |
| Lens system | |
|---|---|
| Zoom type | Auto/Manual |
| Zoom capability | Yes |
| Focus | Auto/Manual |
| Video | |
|---|---|
| Supported graphics resolutions | 1920 x 1200 (WUXGA), 2048 x 1080, 2560 x 1600 (WQXGA), 4096 x 2160 |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| 3D | Yes |
| Full HD | Yes |
| Ports & interfaces | |
|---|---|
| PC Audio out | Yes |
| PC Audio in | Yes |
| Serial interface type | RJ-45, RS-232 |
| Audio (L/R) in | 1 |
| USB 2.0 ports quantity | 1 |
| HDBaseT port | Yes |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Features | |
|---|---|
| HDCP | Yes |
| Noise level (economic mode) | 28 dB |
| Noise level | 30 dB |
| Design | |
|---|---|
| Placement | Ceiling, Floor |
| Product colour | White |
| Product type | Large venue projector |
| Power | |
|---|---|
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 100 – 240 V |
| Power consumption (economy mode) | 350 W |
| Power consumption (standby) | 0.28 W |
| Power consumption (typical) | 615 W |
| Power source | AC |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 20 – 80% |
| Operating relative humidity (H-H) | 20 – 80% |
| Storage temperature (T-T) | -10 – 50 °C |
| Operating temperature (T-T) | 5 – 40 °C |
| Weight & dimensions | |
|---|---|
| Height | 208 mm |
| Depth | 490 mm |
| Width | 599 mm |
| Weight | 24.1 kg |
| Packaging content | |
|---|---|
| Cables included | AC |
| Manual | Yes |
| Remote control type | IR |
| Remote control included | Yes |
| Technical details | |
|---|---|
| Sustainability certificates | ErP |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85286200 |
