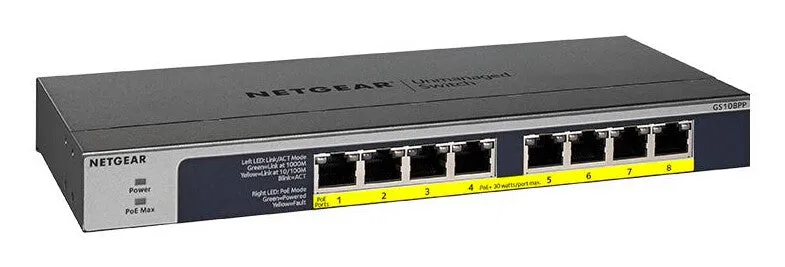

NETGEAR GS108PP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
- Unmanaged
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 8
- MAC address table: 4000 entries Switching capacity: 16 Gbit/s
- Rack mounting
- DC Power over Ethernet (PoE)
| Management features | |
|---|---|
| Quality of Service (QoS) support | Yes |
| Switch type | Unmanaged |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Network | |
|---|---|
| Full duplex | Yes |
| 10G support | No |
| Networking standards | IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x |
| Data transmission | |
|---|---|
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| Switching capacity | 16 Gbit/s |
| MAC address table | 4000 entries |
| Design | |
|---|---|
| Wall mountable | Yes |
| LED indicators | Yes |
| Product colour | Black |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 2752476 h |
| Buffer size | 192 KB |
| Plug and Play | Yes |
| Power | |
|---|---|
| Power consumption (typical) | 123 W |
| Output voltage | 2.4 V |
| DC input voltage | 54 V |
| Power source | DC |
| Power over Ethernet (PoE) | |
|---|---|
| Total Power over Ethernet (PoE) budget | 123 W |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Operating altitude | 0 – 3000 m |
| Storage relative humidity (H-H) | 0 – 95% |
| Operating relative humidity (H-H) | 0 – 90% |
| Storage temperature (T-T) | -20 – 70 °C |
| Operating temperature (T-T) | 0 – 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 600 g |
| Height | 27 mm |
| Depth | 102 mm |
| Width | 236 mm |
| Certificates | |
|---|---|
| Certification | CE, FCC, ICES-003, VCCI, RCM, BSMI, KC, CB, CE LVD, BSMI, EAC, RCM, KC, EN 60950-1 |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
