NETGEAR M6100-24X3 Managed L3 Gigabit Ethernet (10/100/1000) 4U Black, Grey
- Managed L3 Web-based management SNMP, RMON, MIB, LLDP, AAA, sFlow, RSPAN
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 24
- 10G support
- MAC address table: 32000 entries
- Access Control List (ACL)
- 4U Rack mounting Stackable

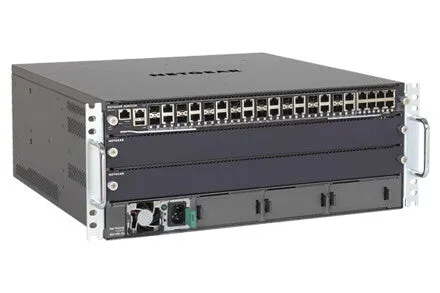

M6100-24X3 Starter Kit bundle including M6100-3S base chassis, XCM8924X blade, AFT603 fan tray, APS1000W power supply
M6100: The Latest Advances in Hardware and Software Engineering for Higher Flexibility, Lower Complexity and Stronger Investment Protection, at a High-Value Price Point.
The NETGEAR® Chassis M6100 series delivers L2/L3/L4 and IPv4/IPv6 rich services for enterprise edge and SMB core deployments, as well as 1G / 10G mixed infrastructures in server rooms. Innovative distributed fabric provides non-stop forwarding resiliency and world-class availability – including passive backplane, hitless failover, redundant fabric and redundant management – without having to pay the exorbitant acquisition and maintenance costs associated by other networking vendors in this class.
World-class availability
– Dependable continuity of operations with non-stop switching, non-stop routing and hitless failover supported for both fabric and management
– N+1 redundancy for power supplies and loop-free, disruption-free multi-chassis link aggregation (MLAG)
High speed performance
– 1.4 Tbps total routing / switching capacity and up to 1,071 Mpps intra-blade throughput
– 480 Gbps distributed fabric inter-module with each slot providing 2 x 40G access to the passive backplane (80G half-duplex; 160G full-duplex)
Lower complexity
– Entire feature set including datacenter (DCBX, PFC, ETS, FIP Snooping) and advanced IPv6 L3 routing (OSPF, PBR, BGP) is available without license
– Innovative slot-1 supervisory and slot-2 backup supervisory design simplifies the entire chassis installation and ongoing maintenance tasks
Investment protection
– Multi-role versatile platform engineered for cost-effective Gigabit edge, flexible Gigabit / 10 Gigabit distribution and scalable 10 Gigabit core applications
– Any Gigabit copper blade can be upgraded with PoE+ 30W or UPOE 60W daughter card and downgraded later if the application has changed
Industry standard management
– Industry standard command line interface (CLI), functional NETGEAR web interface (GUI), SNMP, sFlow and RSPAN
– Single-pane-of-glass NMS300 management platform with centralized firmware updates and mass-configuration support
Industry leading warranty
– NETGEAR M6100 series is covered under NETGEAR ProSafe Lifetime Hardware Warranty*
– 90 days of Technical Support via phone and email, Lifetime Technical Support through online chat and Lifetime Next Business Day hardware replacement
| Management features | |
|---|---|
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| SFP+ module slots quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Network | |
|---|---|
| Number of VLANs | 4000 |
| VLAN support | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Port mirroring | Yes |
| 10G support | Yes |
| Networking standards | IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| Data transmission | |
|---|---|
| Jumbo frames support | Yes |
| Number of queues | 7 |
| MAC address table | 32000 entries |
| Security | |
|---|---|
| Security algorithms | 802.1x RADIUS, HTTPS, SSH, SSL/TLS |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
| Static port security | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server, DHCP client |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Protocols | |
|---|---|
| Supported network protocols | iPv4/iPv6 |
| Management protocols | SNMP, RMON, MIB, LLDP, AAA, sFlow, RSPAN |
| Design | |
|---|---|
| Safety | CE, CSA, UL 1950 /cUL IEC 950/EN 60950 |

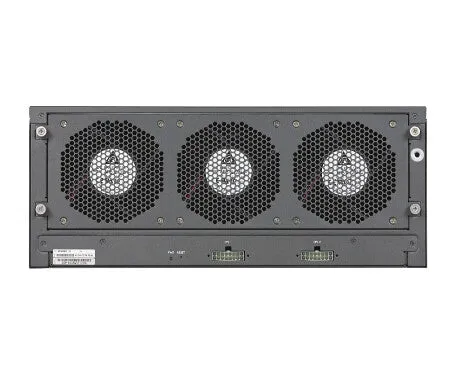

| Number of fans | 3 fan(s) |
| Housing material | Metal |
| Product colour | Black, Grey |
| Form factor | 4U |
| Stackable | Yes |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Maximum data transfer rate | 10000 Mbit/s |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | No |
| Operational conditions | |
|---|---|
| Non-operating altitude | 0 – 3000 m |
| Operating altitude | 0 – 3000 m |
| Storage temperature (T-T) | -20 – 70 °C |
| Operating temperature (T-T) | 0 – 50 °C |
| Weight & dimensions | |
|---|---|
| Height | 175.9 mm |
| Depth | 441.6 mm |
| Width | 432 mm |
| Certificates | |
|---|---|
| Certification | CEFCC Part 15 Class AVCCI Class AClass A EN 55022(CISPR 22) Class AClass A C-TickEN 50082-1EN 55024 |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
