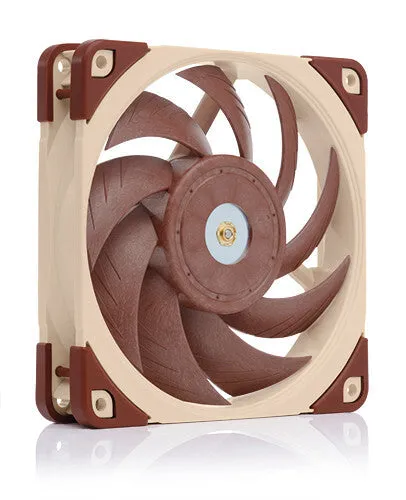

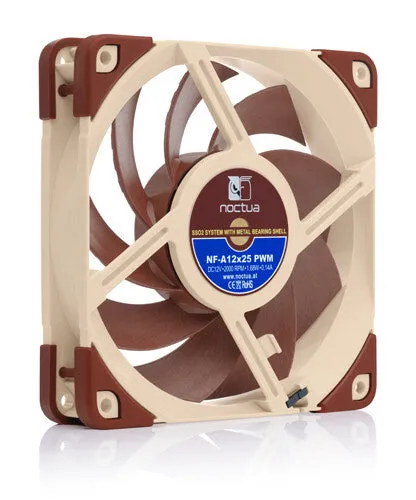

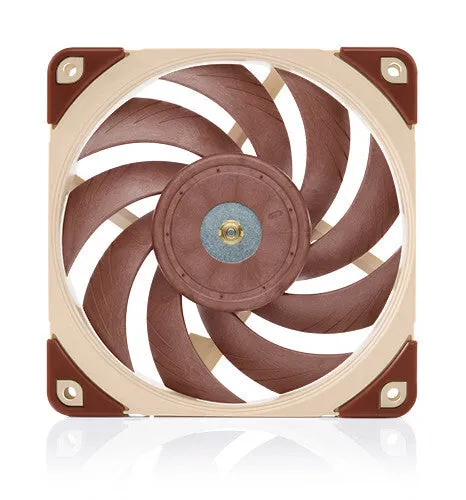

Noctua NF-A12X25 PWM computer cooling system Computer case Fan 12 cm Brown
- Computer case Fan 12 cm 2000 RPM
- 22.6 dB 2.34 mmH2O Self-Stabilising Oil-pressure Bearing (SSO)
- Brown
The NF-A12x25 is a highly optimised next-generation 120mm fan that integrates Noctua’s latest innovations in aerodynamic engineering in order to achieve an unprecedented level of quiet cooling performance. It takes state-of-the-art technologies such as the AAO (Advanced Acoustic Optimisation) frame or Flow Acceleration Channels and combines them with a record tight tip clearance of only 0.5mm, which is made possible by using the novel Sterrox liquid-crystal polymer (LCP) compound as well as a metal-reinforced motor hub and axis for ultimate precision. Following the approach of Noctua’s A-series, the NF-A12x25 is a true all-rounder that yields superb results in all types of usage, regardless of whether it’s in low-impedance, airflow-oriented applications such as case cooling, or high-impedance, pressure-demanding scenarios such as on heatsinks and watercooling radiators. The 4-pin PWM version supports fully automatic speed control via PWM fan headers and comes with a Low-Noise Adaptor to reduce the maximum speed from 2000 to 1700rpm. Topped off with exceptional running smoothness, Noctua’s reference-class SSO2 bearing, a rich bundle of accessories and 6-year manufacturer’s warranty, the NF-A12x25 is a premium-quality product through and through. Its superior efficiency, cutting-edge construction and pioneering materials make it an elite choice for the most discerning demands.
Performance |
Bearing type |
Self-Stabilising Oil-pressure Bearing (SSO) |
Maximum air pressure |
2.34 mmH2O |
Minimum air pressure |
1.65 mmH2O |
Airflow with LNA (max) |
84.5 m³/h |
Airflow |
102.1 m³/h |
Noise level with LNA (max) |
18.8 dB |
Noise level (high speed) |
22.6 dB |
Rotational speed with LNA (max) |
1700 RPM |
Rotational speed (max) |
2000 RPM |
Rotational speed (min) |
450 RPM |
Compatible processor series |
Not supported |
Supported processor sockets |
Not supported |
Fan diameter |
12 cm |
Type |
Fan |
Suitable location |
Computer case |
Design |
Fan connector |
4-pin |
Material |
Liquid Crystal Polymers (LCP) |
Product colour |
Brown |
Power |
Maximum current |
0.14 A |
Voltage |
12 V |
Power consumption (typical) |
1.68 W |
Weight & dimensions |
Height |
120 mm |
Depth |
25 mm |
Width |
120 mm |
Other features |
Mean time to failure (MTTF) |
150000 h |
Logistics data |
Harmonized System (HS) code |
84733080 |
