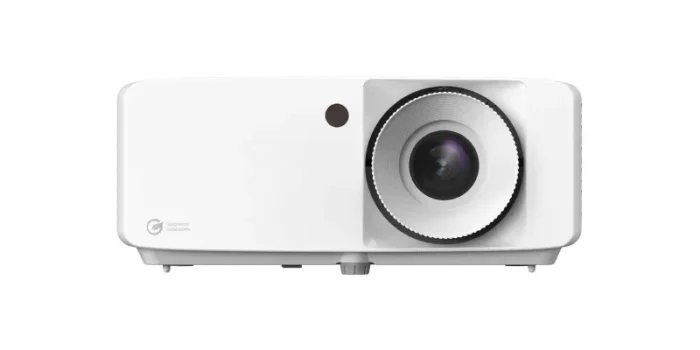

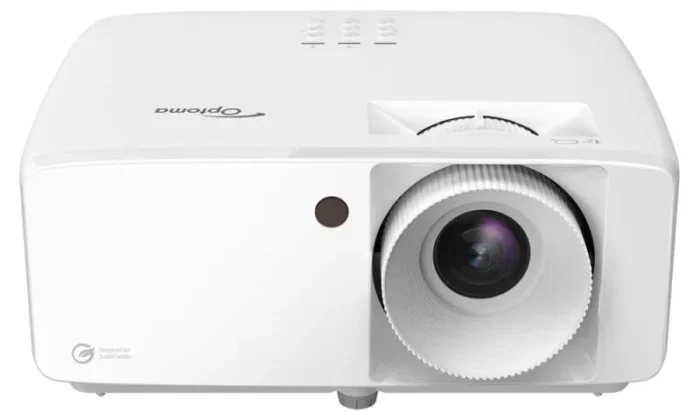

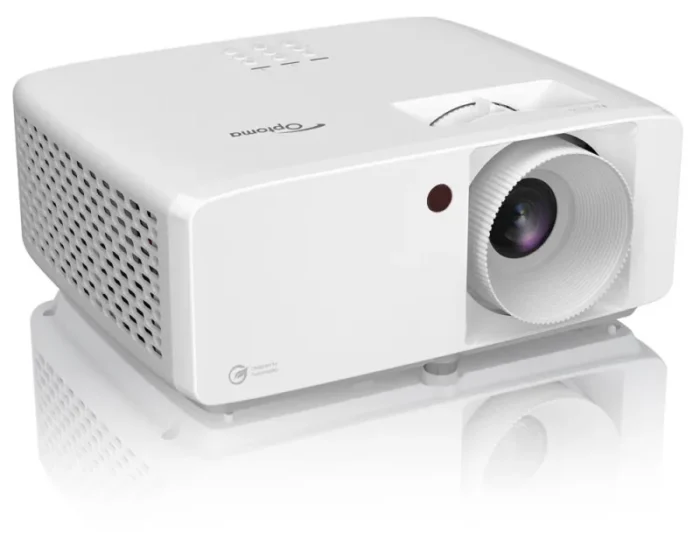

Optoma ZH520 5500 ANSI lumens DLP 1080p (1920×1080) 3D White
- Bright Full HD 1080p DuraCore laser projector
- 5500 lumens and IP6X certified
- Compact for easy installation
- 1.3x zoom, 360-degree and portrait projection
- Reduced power consumption for a long life span
- DuraCore laser technology delivers 30,000 hours maintenance free laser light source
- External power supply
- More reliability, portability and energy efficiency
Eco-friendly compact high brightness Full HD laser projector
The ZH520 is one of Optoma’s most compact and hassle-free Full HD 1080p DuraCore laser projectors to date. Designed for maintenance-free continuous operation, it delivers powerful image performance with flexible installation features and extensive connectivity options in a sleek, compact form factor, up to 34% smaller than previous Optoma models.¹
To support Optoma’s commitment to sustainability, the ZH520 cuts power consumption by up to 45% compared to Optoma’s lamp-based projectors.² Energy-saving DuraCore laser technology ensures a long product lifespan of up to 30,000 hours without the need for additional lamps, requires minimal maintenance, and is mercury-free, further lowering its carbon footprint.
An added benefit, the ZH520 features an external power supply offering more reliability, portability and energy efficiency.
Designed with the environment in mind, the eco-friendly chassis design is made with up to 50% PCR (Post-Consumer Recycled) plastics and the packaging contains up to 97% recyclable materials.³ In addition, the compact product and packaging size of the Optoma ZH520 projector allows 2x more products carried per container, resulting in more efficient logistics to help further reduce carbon emissions.¹
Geared for conference rooms, boardrooms, and other corporate spaces, the ZH520 features a 1.3x zoom for a flexible setup. For ultimate convenience it comes with an RS232 connection for monitoring and controlling and a built-in speaker.
| Projector | |
|---|---|
| Keystone correction, horizontal | -30 – 30° |
| Keystone correction, vertical | -30 – 30° |
| Uniformity | 75% |
| Projection distance | 1 – 8 m |
| Supported aspect ratios | 4:3, 16:10, 16:9 |
| Native aspect ratio | 16:9 |
| Contrast ratio (typical) | 3000000:1 |
| Projector native resolution | 1080p (1920×1080) |
| Projection technology | DLP |
| Projector brightness | 5500 ANSI lumens |
| Light source | |
|---|---|
| Service life of light source | 30000 h |
| Light source type | Laser |
| Lens system | |
|---|---|
| Offset | 116% |
| Throw ratio | 1.13:1 ~ 1.47:1 |
| Zoom ratio | 1.3:1 |
| Zoom type | Manual |
| Focal length range | 16.9 – 21.61 mm |
| Video | |
|---|---|
| Supported graphics resolutions | 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080) |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Supported 3D formats | Frame Sequential |
| 3D | Yes |
| Full HD | Yes |
| Analog signal format system | NTSC, PAL, SECAM |
| Ports & interfaces | |
|---|---|
| Serial interface type | RS-232 |
| Headphone outputs | 1 |
| USB 2.0 Type-A ports quantity | 1 |
| USB 2.0 ports quantity | 1 |
| DVI port | No |
| HDMI version | 2.0 |
| HDMI ports quantity | 2 |
| Network | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN | Yes |
| Storage | |
|---|---|
| Card reader integrated | No |
| Features | |
|---|---|
| Password protection | Yes |
| International Protection (IP) code | IP6X |
| Number of OSD languages | 25 |
| On Screen Display (OSD) languages | Arabic, Simplified Chinese, Traditional Chinese, Czech, Danish, German, Dutch, English, Spanish, Farsi, Finnish, French, Greek, Hungarian, Indonesian, Italian, Japanese, Norwegian, Polish, Portuguese, Romanian, Russian, Swedish, Turkish, Vietnamese |
| On Screen Display (OSD) | Yes |
| Noise level | 29 dB |
| Multimedia | |
|---|---|
| Number of built-in speakers | 1 |
| RMS rated power | 15 W |
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | White |
| Housing material | Plastic |
| Market positioning | Portable |
| Display | |
|---|---|
| Built-in display | No |
| Power | |
|---|---|
| Auto power off | Yes |
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 100 – 240 V |
| Power consumption (max) | 205 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 128 W |
| Power source | AC |
| Operational conditions | |
|---|---|
| Operating altitude | 0 – 2500 m |
| Operating relative humidity (H-H) | 0 – 80% |
| Operating temperature (T-T) | 0 – 40 °C |
| Weight & dimensions | |
|---|---|
| Package weight | 4.6 kg |
| Height | 108 mm |
| Depth | 216 mm |
| Width | 274 mm |
| Weight | 3.4 kg |
| Packaging content | |
|---|---|
| Cables included | AC |
| Manual | Yes |
| Batteries included | Yes |
| Remote control included | Yes |
| Logistics data | |
|---|---|
| Quantity per pack | 1 pc(s) |
