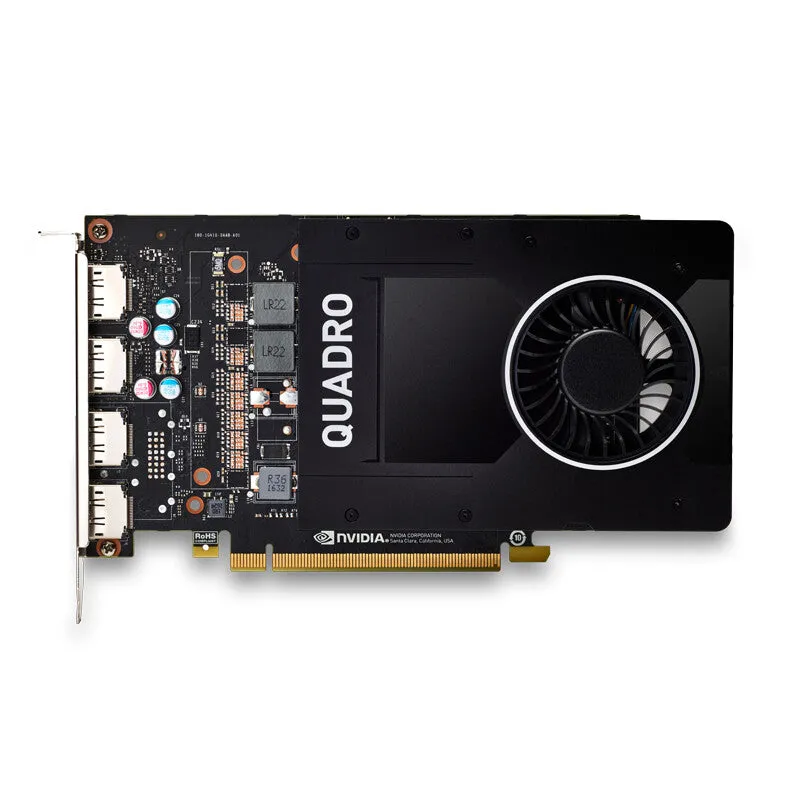

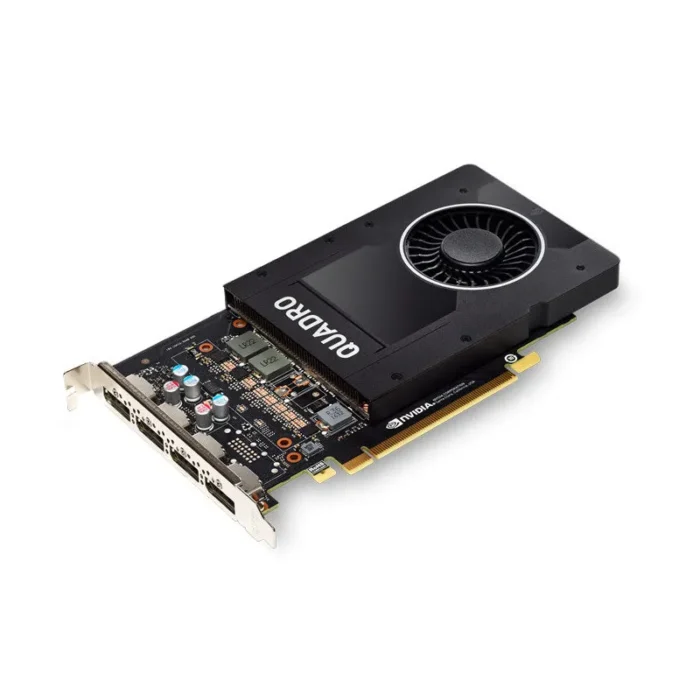

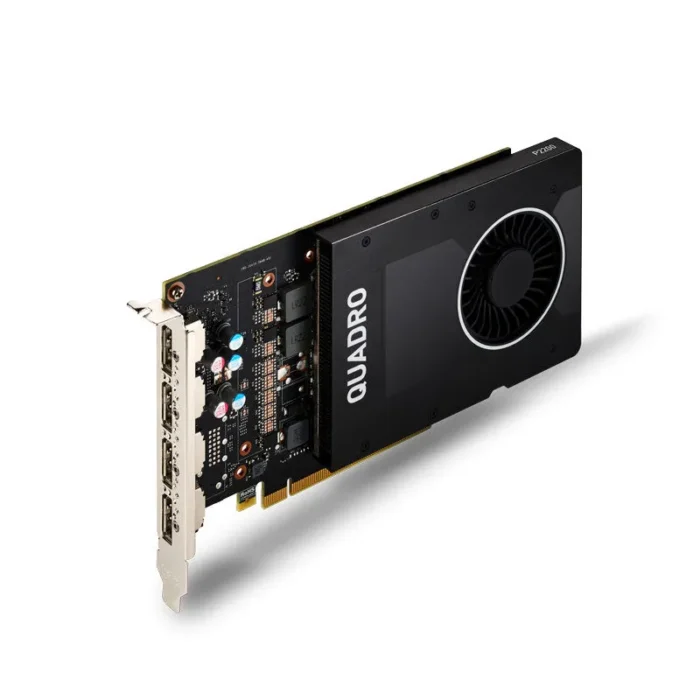

PNY NVIDIA Quadro P2200 5GB GDDR5X
- NVIDIA Quadro P2200 5 GB GDDR5X
- 5120 x 2880 pixels 160 bit PCI Express x16 3.0
- DisplayPorts quantity: 4
- DirectX version: 12.0 OpenGL version: 4.5
NVIDIA Quadro P2200—Power and Performance in a Compact Form Factor.
The Quadro P2200 is the perfect balance of performance, compelling features, and compact form factor delivering incredible creative experience and productivity across a variety of professional 3D applications. It features a Pascal GPU with 1280 CUDA cores, large 5 GB GDDR5X on-board memory, and the power to drive up to four 5K (5120×2880 @ 60Hz) displays natively. Accelerate product development and content creation workflows with a GPU that delivers the fluid interactivity you need to work with large scenes and models.
Quadro cards are certified with a broad range of sophisticated professional applications, tested by leading workstation manufacturers, and backed by a global team of support specialists. This gives you the peace of mind to focus on doing your best work. Whether you’re developing revolutionary products or telling spectacularly vivid visual stories, Quadro gives you the performance to do it brilliantly.
| Processor | |
|---|---|
| CUDA cores | 1280 |
| CUDA | Yes |
| Maximum resolution | 5120 x 2880 pixels |
| Graphics processor | Quadro P2200 |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Memory bandwidth (max) | 200 GB/s |
| Memory bus | 160 bit |
| Graphics card memory type | GDDR5X |
| Discrete graphics card memory | 5 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 4 |
| Interface type | PCI Express x16 3.0 |
| Performance | |
|---|---|
| HDCP | Yes |
| OpenGL version | 4.5 |
| Shader model version | 5.1 |
| DirectX version | 12.0 |
| TV tuner integrated | No |
| Design | |
|---|---|
| Number of fans | 1 fan(s) |
| Cooling type | Active |
| Power | |
|---|---|
| Power consumption (max) | 75 W |
| System requirements | |
|---|---|
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1 |
| Weight & dimensions | |
|---|---|
| Height | 111.7 mm |
| Length | 200 mm |
| Sustainability | |
|---|---|
| Sustainability certificates | ENERGY STAR |
