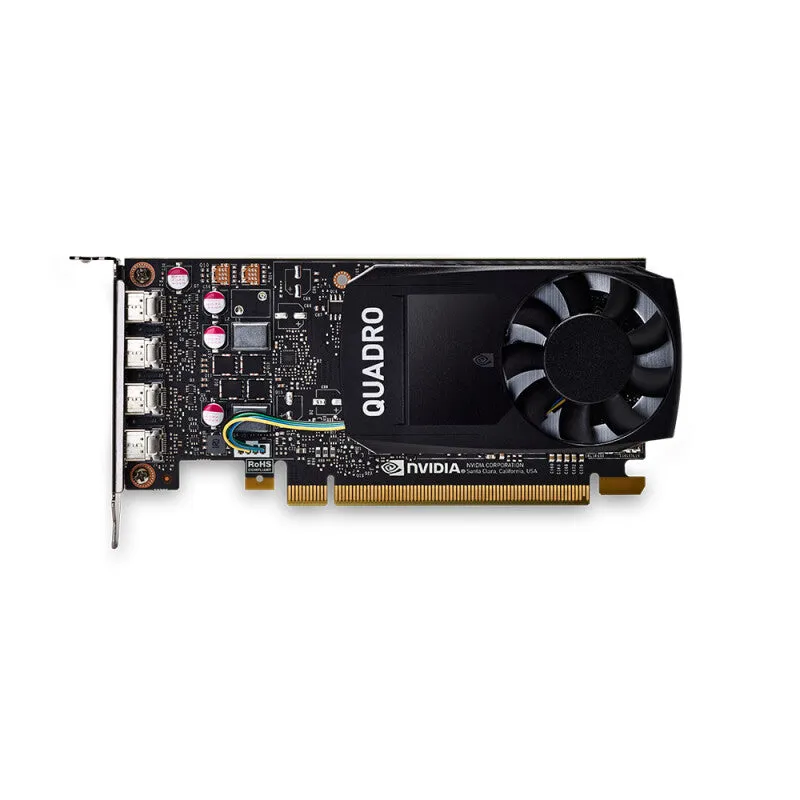

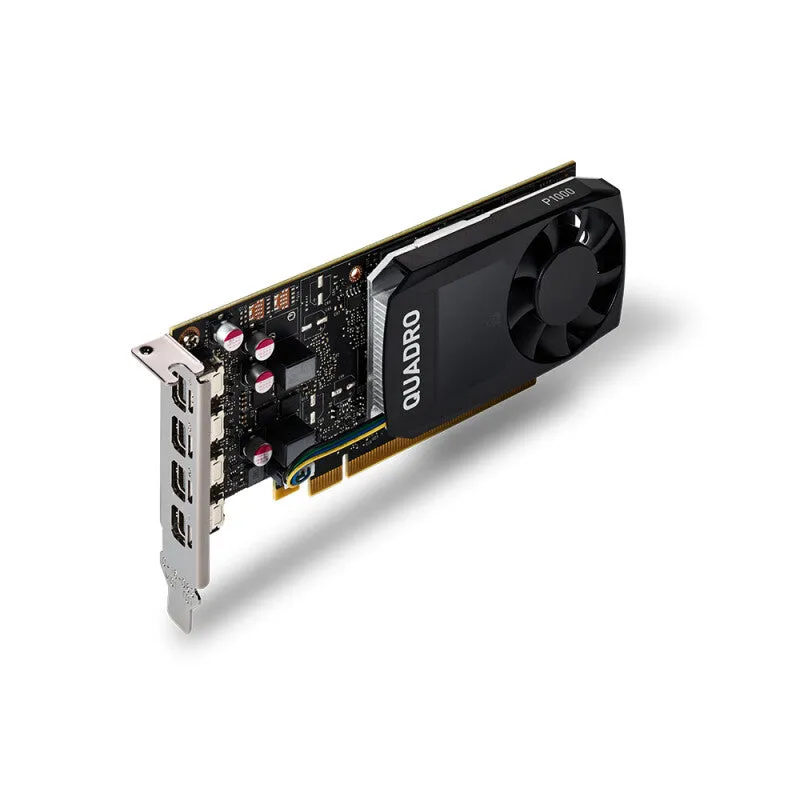

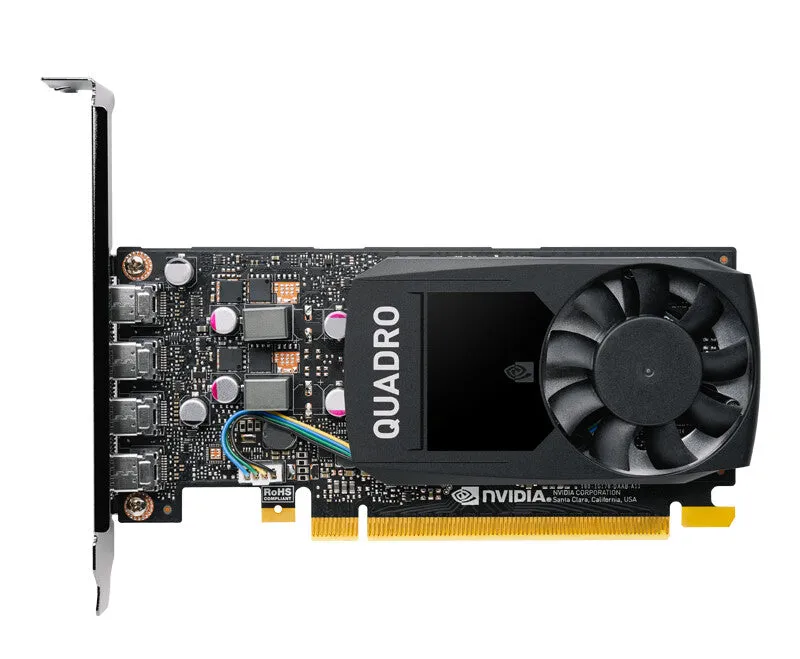

PNY VCQP1000V2-SB graphics card NVIDIA Quadro P1000 V2 4 GB GDDR5
- NVIDIA Quadro P1000 V2 4 GB GDDR5
- 5120 x 2880 pixels 128 bit PCI Express x16 3.0
- DirectX version: 12.0 OpenGL version: 4.5
NVIDIA Quadro P1000 V2 — Full Professional Performance and Features in a Small Form Factor.
The Quadro P1000 combines a 640 CUDA core Pascal GPU, 4 GB GDDR5 on-board memory and advanced display technologies in a low-profile form factor to deliver amazing graphics performance for demanding professional applications. Support for four 4K displays (4096×2160 @ 60Hz) with HDR color gives you an expansive visual workspace to see your ideas come to life in stunning detail.
Quadro cards are certified with a broad range of sophisticated professional applications, tested by leading workstation manufacturers, and backed by a global team of support specialists. This gives you the peace of mind to focus on doing your best work. Whether you’re developing revolutionary products or telling spectacularly vivid visual stories, Quadro gives you the performance to do it brilliantly.
| Processor |
| Maximum displays per videocard |
4 |
| CUDA cores |
640 |
| CUDA |
Yes |
| Maximum resolution |
5120 x 2880 pixels |
| Graphics processor |
Quadro P1000 V2 |
| Graphics processor family |
NVIDIA |
| Memory |
| Memory bandwidth (max) |
82 GB/s |
| Memory bus |
128 bit |
| Graphics card memory type |
GDDR5 |
| Discrete graphics card memory |
4 GB |
| Ports & interfaces |
| Mini DisplayPorts quantity |
4 |
| DisplayPort version |
1.4 |
| Interface type |
PCI Express x16 3.0 |
| Performance |
| HDCP |
No |
| OpenGL version |
4.5 |
| Shader model version |
5.1 |
| DirectX version |
12.0 |
| Design |
| Certification |
Reach, CE, PCN |
| Product colour |
Black |
| Number of slots |
1 |
| Bracket height |
Low-Profile (LP) |
| Form factor |
Half-Height/Half-Length (HH/HL) |
| Number of fans |
1 fan(s) |
| Cooling type |
Active |
| Power |
| Power consumption (max) |
47 W |
| System requirements |
| Minimum RAM |
1024 MB |
| Minimum storage drive space |
200 MB |
| Linux operating systems supported |
Yes |
| Windows operating systems supported |
Windows 10, Windows 7, Windows 8, Windows 8.1 |
| Weight & dimensions |
| Height |
68.9 mm |
| Length |
145 mm |
| Packaging content |
| User guide |
Yes |
| Manual |
Yes |
| Quick installation guide |
Yes |
| Sustainability |
| Sustainability certificates |
ENERGY STAR |
| Technical details |
| Compliance certificates |
RoHS |
