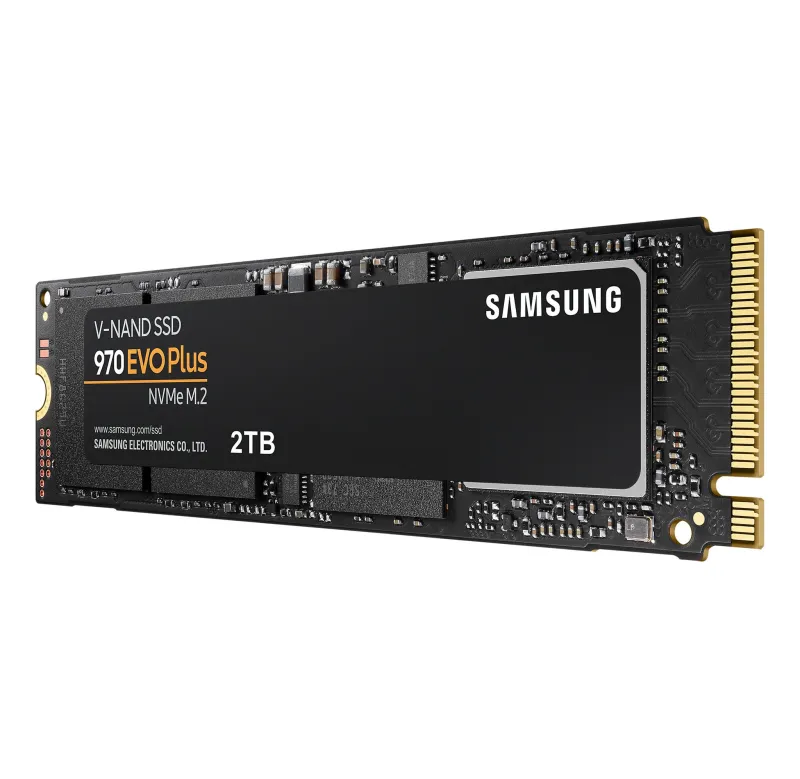

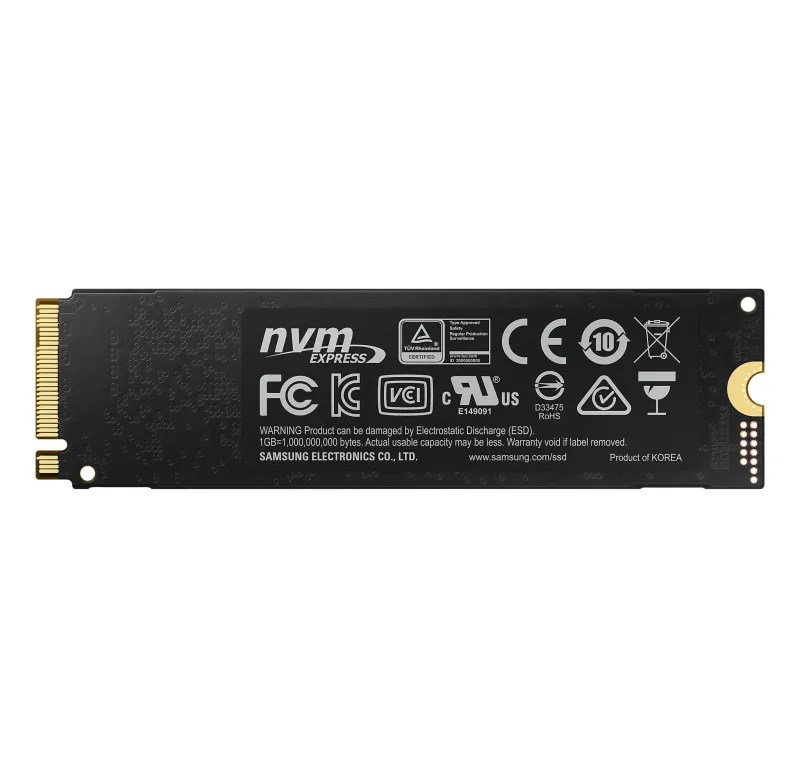

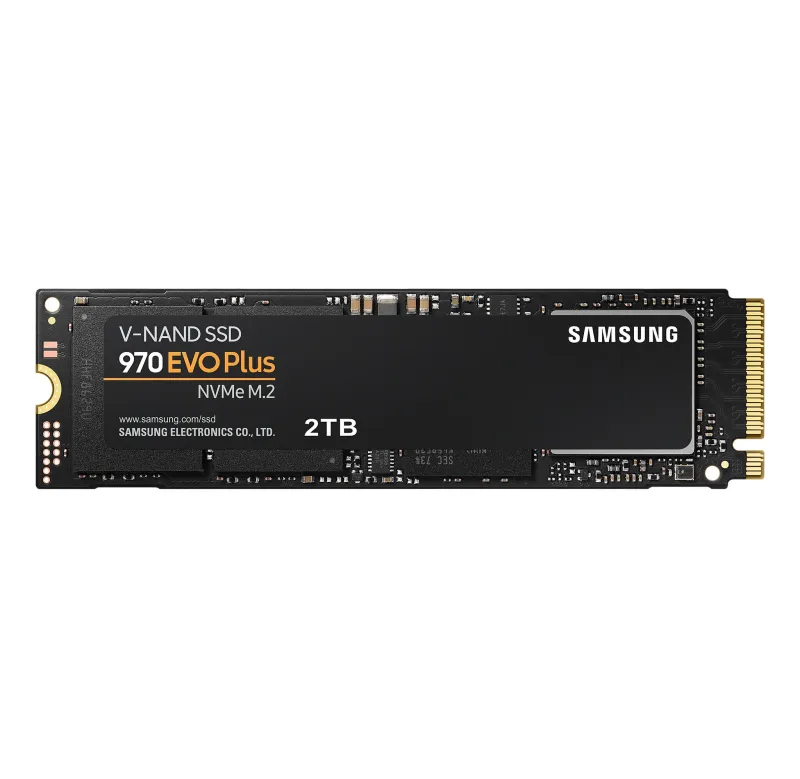

Samsung 970 EVO Plus 2 TB M.2 PCI Express 3.0 NVMe V-NAND MLC
- Always Evolving SSD
- Level up Performance
- Design Flexibility
Always Evolving SSD
The ultimate in performance, upgraded. Faster than the 970 EVO, the 970 EVO Plus is powered by the latest V-NAND technology and firmware optimisation. It maximises the potential of NVMe™ bandwidth for unbeatable computing in capacities up to 2TB, with reliability of up to 1,200 TBW.
Level Up Performance
The 970 EVO Plus reaches sequential read/write speeds up to 3,500/3,300 MB/s, up to 53%‡ faster than the 970 EVO. The latest V-NAND—which brings greater NAND performance and higher power efficiency—along with optimised firmware, a proven in-house controller and Intelligent TurboWrite boost.
Design Flexibility
The next advancement in NVMe SSD. The 970 EVO Plus fits up to 2TB onto the compact M.2 (2280) form factor, greatly expanding storage capacity and saving space for other components. Samsungs innovative technology empowers you with the capacity to do more and accomplish more.
Exceptional Endurance
The new standard in sustainable performance. Get up to 1,200 TBW with a 5-year limited warranty for lasting performance. The 970 EVO Plus provides exceptional endurance powered by the latest V-NAND technology and Samsungs quality.
Unparalleled Reliability
Achieve a new level of drive confidence. Samsungs advanced nickel-coated controller and heat spreader on the 970 EVO Plus enable superior heat dissipation. The Dynamic Thermal Guard automatically monitors and maintains optimal operating temperatures to minimise performance drops.
Samsung Magician
Advanced drive management made simple. The Samsung Magician software will help you keep an eye on your drive. A suite of user-friendly tools helps keep your drive up to date, monitor drive health, check speed and even boost performance.
| Features | |
|---|---|
| Mean time between failures (MTBF) | 1500000 h |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| DevSlp (device sleep) support | Yes |
| PCI Express interface data lanes | x4 |
| Controller type | Samsung Phoenix |
| Random write (4KB) | 560000 IOPS |
| Random read (4KB) | 620000 IOPS |
| Write speed | 3300 MB/s |
| Read speed | 3500 MB/s |
| Security algorithms | 256-bit AES |
| Hardware encryption | Yes |
| Component for | PC |
| Memory type | V-NAND MLC |
| NVMe version | 1.3 |
| NVMe | Yes |
| Interface | PCI Express 3.0 |
| SSD form factor | M.2 |
| SSD capacity | 2 TB |
| Power | |
|---|---|
| Power consumption (idle) | 0.03 W |
| Power consumption (sleep) | 0.005 W |
| Power consumption (standby) | 0.03 W |
| Power consumption (average) | 6 W |
| Operating voltage | 3.3 V |
| Weight & dimensions | |
|---|---|
| Weight | 8 g |
| Height | 2.38 mm |
| Depth | 22.1 mm |
| Width | 80.2 mm |
| Packaging data | |
|---|---|
| Bundled software | Magician Software for SSD management |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 – 70 °C |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84717070 |
