SilverNet SIL 73408MP-10G network switch Managed L3 Gigabit Ethernet (10/100/1000)
- 8 x 10/100/1000Base-T
- 4 x 1G/10G SFP/SFP+ slots
- 128Gbps Backplane Bandwidth
- IEEE803.af/at compliant
- RJ45 supports auto MDI/MDI-X function
- Auto negotiation speed, half/full duplex
- Store and forward
- Max packet size: 10K bytes
- MAC address size: 16K
- Wide range power design (9~56VDC)
- Operating temperature (-40°C ~+75°C)
- Resettable fuse to protect against overcurrent
- Reverse Polarity Protection

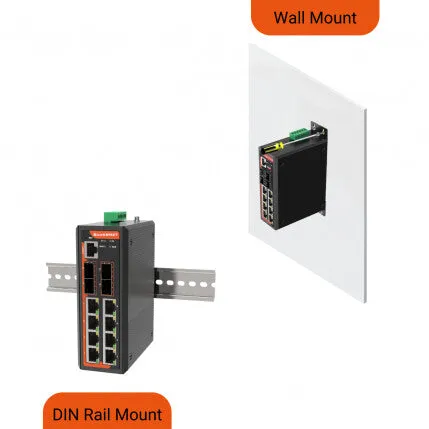

- DIN Rail or wall mountable
- EFT protection for power line
- Ethernet ESD protection
- IP40 Protection
- Rugged
Long-lasting and durable, the SilverNet 73408MP-10G is a fully managed Layer 3 switch, designed for deployment in harsh industrial environments.
Featuring 8 x 10/100/1000Base-T ports and 4 x SFP+ 10Gb ports, this Switch provides ample connectivity options for a range of uses.
The Industrial Gigabit PoE+ Managed Switch boasts a dual input design, low power consumption, and high reliability. Additionally, it’s fanless, which ensures quiet operation making it ideal for noise-sensitive environments.
The 73408MP-10G is a dependable solution for extending Ethernet over long distances using fibre daisy chaining.
This will simplify installation and reduce costs, as it eliminates the need for separate power supplies for IP video cameras and wireless access points.
Even in challenging environments and weather conditions, this rugged Switch can be relied upon. It features an extended temperature range, enabling it to operate reliably in unconditioned outdoor cabinets and other harsh industrial environments.
Fully compliant with the IEEE802.3af/at standard, the SilverNet Industrial Gigabit PoE+ Managed Switch provides power over Ethernet through twisted pair cables. Its fibre optic ports are equipped with modular SFP+ slots that support any MSA-compliant pluggable 10Gbps SFP+ transceiver.
| Management features | |
|---|---|
| MIB support | Ethernet-like MIB, MIB-II, MIB-I, Bridge MIB, Bridge MIB extensions, RMON MIB(1,2,3 & 9 groups, RFC2737 Entity, RFC2863 Interface Group, SNMP-Community-MIB |
| System event log | Yes |
| Traffic classification | Yes |
| Traffic shaping | Yes |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| Web-based management | Yes |
| Cloud-managed | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| Power connector | Terminal block (2-pin) |
| Console port | RJ-45 |
| Installed SFP+ modules quantity | 4 |
| Installed SFP modules quantity | 4 |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Fast Ethernet (copper) ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Network | |
|---|---|
| Number of VLANs | 256 |
| Virtual LAN features | Multicast VLAN, Multiple VXLAN (MUX VLAN), Port-based VLAN, Stacked VLAN, VLAN Identifier ( VLAN ID), Voice VLAN |
| VLAN support | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| MAC address auto-learning supported | Yes |
| Active link detection | Yes |
| Rate limiting | Yes |
| Broadcast storm control | Yes |
| Spanning tree protocol | Yes |
| Half duplex | Yes |
| IP routing | Yes |
| Full duplex | Yes |
| Policy-based routing | Yes |
| Port mirroring | Yes |
| Copper ethernet cabling technology | 10BASE-TX, 100BASE-TX, 1000BASE-TX |
| 10G support | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Data transmission | |
|---|---|
| Packet buffer memory | 12 MB |
| Jumbo frames | 10000 |
| Jumbo frames support | Yes |
| Static route | Yes |
| Latency (10 Gbps) | 7 µs |
| Latency (1 Gbps) | 7 µs |
| Latency (10-100 Mbps) | 7 µs |
| Store-and-forward | Yes |
| Switching capacity | 128 Gbit/s |
| MAC address table | 16000 entries |
| Security | |
|---|---|
| Loop protection | Yes |
| Security algorithms | 802.1x RADIUS, HTTPS, SSL/TLS |
| Authentication type | IEEE 802.1x, RADIUS, TACACS+ |
| Queue scheduling algorithms | Priority queuing (PQ), Strict Priority Queue (SPQ), WFQ, WFQ+SP, WRR+SP, Weighted Round Robin (WRR) |
| MAC address filtering | Yes |
| Password protection | Yes |
| SSH/SSL support | Yes |
| BPDU filtering/protection | Yes |
| IGMP snooping | Yes |
| IGMP entries | 4096 |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP client, DHCP server, DHCP snooping |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Protocols | |
|---|---|
| Routing protocols | OSPFv2, RIP-1, RIP-2, VRRP |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Management protocols | ARP, Flow Control, DDM, DHCP Server/Client, IPv4/IPv6, LLDP, LLDP-MED, UDLD, Port Mirror, RMON, SNMPv1/v2c/v3, Syslog, Telnet |
| Design | |
|---|---|
| Electromagnetic compatibility | FCC Part15 Class A, CE-EMC/LVD, RoHS, EN61000-4-2 (ESD):LEVEL 4, IEC 6100-4-2 (EFT):LEVEL 4, IEC 6100-4-2 (Surge): LEVEL 4, IEC 6100-4-2 (CS)：LEVEL 3, IEC 61000-4-2(PFMP) : LEVEL 5, EN61000-4-3 (RS):LEVEL 4 |
| International Protection (IP) code | IP40 |
| LED indicators | Alarm, Link, Power, Ring, Speed |
| Housing material | Aluminium |
| Stackable | Yes |
| Rack mounting | No |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 250000 h |
| Power | |
|---|---|
| Power protection features | Over current, Reverse polarity |
| Power consumption (max) | 16 W |
| DC input voltage | 9 – 56 V |
| AC input voltage | 110 – 240 V |
| Number of power supply units | 1 |
| Redundant power supply (RPS) support | Yes |
| Power supply included | Yes |
| Power source | AC/DC |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | No |
| Operational conditions | |
|---|---|
| Heat dissipation | 34 BTU/h |
| Operating relative humidity (H-H) | 5 – 90% |
| Storage temperature (T-T) | -40 – 85 °C |
| Operating temperature (T-T) | -40 – 75 °C |
| Weight & dimensions | |
|---|---|
| Weight | 680 g |
| Height | 49 mm |
| Depth | 108 mm |
| Width | 138 mm |
| Packaging data | |
|---|---|
| Package weight | 945 g |
| Package height | 80 mm |
| Package depth | 230 mm |
| Package width | 170 mm |
| Package type | Box |
| Certificates | |
|---|---|
| Certification | IEC60068-2-27IEC60068-2-6IEC60068-2-31EN 60950-1UL 60950-1CSA C22.2 No.60950-1UL 508 |
| Logistics data | |
|---|---|
| UK Trade Tariff code | 85176200 |
