StarTech.com 2PORT-HDMI-SWITCH-8K video switch
- Video port type: HDMI
- 7680 x 4320 pixels
- Black
Switch between two HDMI video sources on a single display, with support for up to 8K 60Hz resolutions

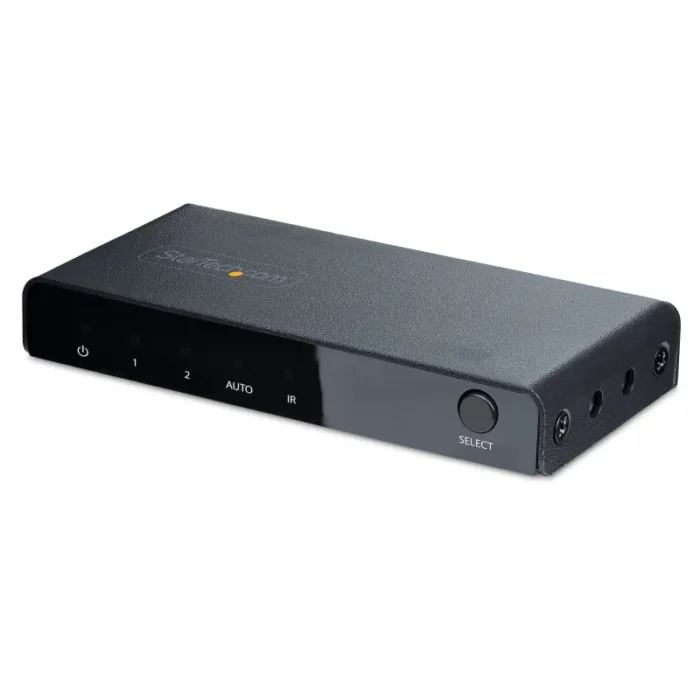

This 2-Port HDMI Video Switch enables two HDMI sources to connect to a single HDMI input on a display.
8K 60Hz Resolution
The HDMI Switcher supports resolutions of up to 8K 60Hz. In addition, it supports lower resolutions at higher refresh rates, such as 4K 144Hz, 4K 120Hz, and 1080p 240Hz.
This Video Switch is HDMI 2.1 complaint and supports features such as Variable Refresh Rate (VRR), Auto Low-Latency Mode (ALLM), and Consumer Electronics Control (CEC). It is backwards compatible with HDMI 2.0 (and lower) devices.
Automatic or Manual Operation
The 8K Video Switch features three options for selecting the source device. Automatic mode detects and selects the most recently activated source device or it will revert to the last active source device. Manual mode selects the desired port, using the push buttons, or with the included remote control (batteries not included). The remote control can enable or disable the automatic switching mode and it can disable the IR functionality.
Flexible Installation Options

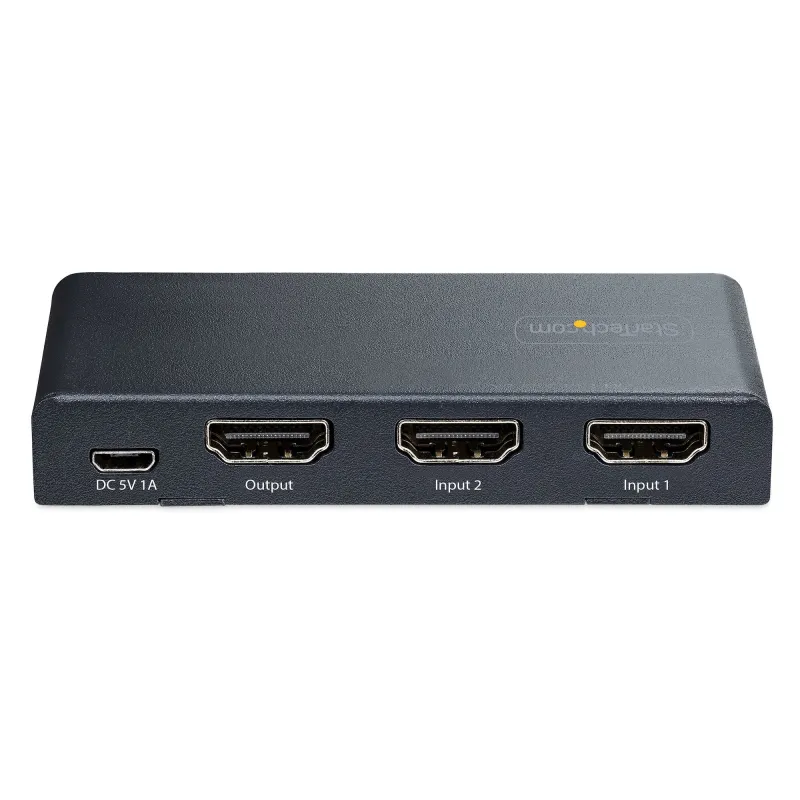

Use the included USB wall charger and 2.5ft (78cm) USB Micro-B cable to power the unit. If a wall outlet is unavailable, the 8K Switch can be powered through a 5V 1A USB port as well.
The included mounting kit and rubber feet enable versatile installation options. The metal housing enhances durability, making it suitable for installation and use in a variety of environments.
This product is backed for 2-years by StarTech.com, including free 24/5 multi-lingual technical assistance.
The StarTech.com Advantage
| Ports & interfaces | |
|---|---|
| USB port type | Micro-USB |
| Number of HDMI outputs | 1 |
| Video port type | HDMI |
| Features | |
|---|---|
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1080, 2560 x 1440, 3440 x 1440, 3840 x 2160, 4096 x 2160, 5120 x 1440, 7680 x 4320 |
| LED indicators | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Audio output channels | 7.1 channels |
| Plug and Play | Yes |
| Maximum operating distance | 5 m |
| Product colour | Black |
| Material | Metal |
| Power | |
|---|---|
| Power consumption (typical) | 5 W |
| AC adapter output current | 1 A |
| AC adapter output voltage | 5 V |
| AC adapter input current | 0.3 A |
| AC input voltage | 100 – 240 V |
| Weight & dimensions | |
|---|---|
| Width | 44 mm |
| Packaging data | |
|---|---|
| Package height | 50 mm |
| Package depth | 179 mm |
| Packaging content | |
|---|---|
| Remote control included | Yes |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 – 90% |
| Storage temperature (T-T) | -10 – 80 °C |
| Operating temperature (T-T) | 0 – 70 °C |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
| Technical details | |
|---|---|
| Compliance certificates | CE, RoHS |
| Logistics data | |
|---|---|
| Products per master (outer) case | 40 pc(s) |
| Master (outer) case height | 280 mm |
| Master (outer) case length | 400 mm |
| Master (outer) case width | 550 mm |
