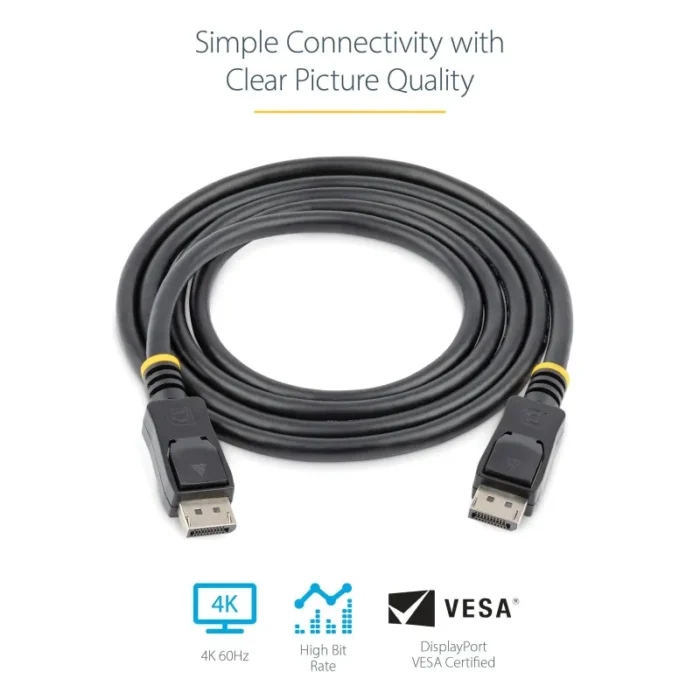

StarTech.com 3m (10ft) DisplayPort 1.2 Cable – 4K x 2K Ultra HD VESA Certified DisplayPort Cable – DP to DP Cable for Monitor – DP Video/Display Cord – Latching DP Connectors
- HIGH PERFORMANCE CABLE: This 3m (10ft) VESA Certified DisplayPort v1.2 cable supports 4K x 2K (3840x2400p 60Hz), 21.6 Gbps bandwidth, HBR2, 8Ch Audio, Multi-Stream Transport (MST), GTC for precise audio channel timing & 3D Stereo (2560x1600p 120Hz)
- RELIABLE DESIGN: Durable ABS connectors with flexible PVC strain relief & jacket prevents fraying/damage due to bending or rough usage; Metal connector sub-structure provides EMI shielding; Latching DP connectors prevent accidental disconnection
- QUALITY CONSTRUCTION: 28AWG wire with gold-plated connectors for improved signal integrity and reliability; Superior EMI shielding with Al-Mylar foil and copper braid provides higher quality video and audio; Backwards compatible with DP 1.1
- APPLICATIONS: Ideal for home/offices/boardrooms/conference rooms/classrooms; works with your professional workstations with FirePro™ S9000/7000, W8100/7100/5100 or R5000 graphic cards; Use with 1080p/UHD/4K monitors, projector or large display
- SPECS: 3 m (10 ft) / Black / DisplayPort v1.2 / DP Latching Male to Male / 28 AWG / PVC cable jacket, ABS connector shell / Shield: Al-Mylar foil with Braid / Protocols: HBR 2, MST, GTC / Lifetime Warranty

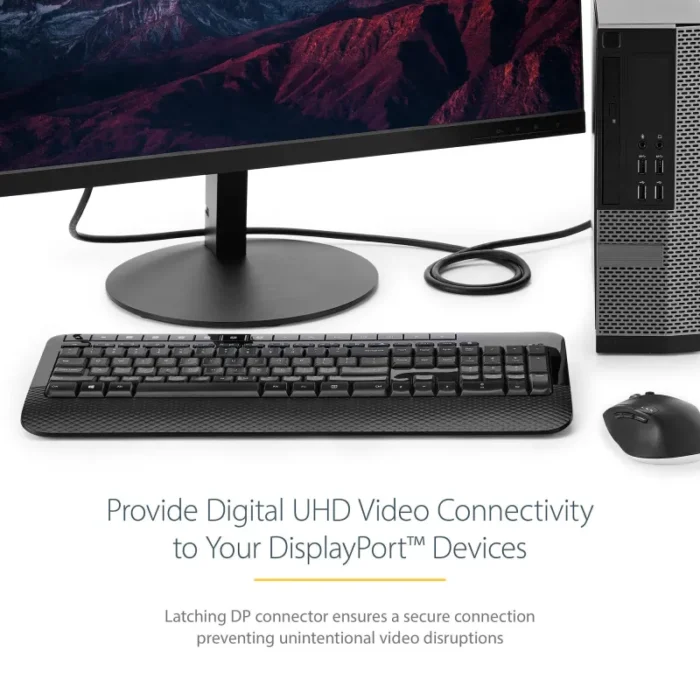

Create high-resolution 4k x 2k connections with HBR2 support between your DisplayPort™-equipped devices
The DISPL3M 3m DisplayPort™ 1.2 Cable with latches provides a secure, connection between your DisplayPort-equipped devices and is capable of providing higher performance than either HDMI® or dual link DVI.
The DP cable supports high resolutions of up to 4k x 2k (4096 x 2160) @ 60Hz with a maximum HBR2 bandwidth of 21.6 Gbps. The cable also supports Multi-Stream (MST) for daisy chaining multiple monitors and provides optional audio support.
The DISPL3M is backed by StarTech.com’s Lifetime Warranty, for guaranteed reliability and ensures that digitally protected content is displayed properly, with both HDCP and DPCP capability.
The StarTech.com Advantage
| Features | |
|---|---|
| Number of conductors | 19 |
| Multi-Stream Transport (MST) | Yes |
| Plug and Play | Yes |
| Bandwidth | 21600 MB/s |
| AWG wire size | 28 |
| Jacket material | Polyvinyl chloride (PVC) |
| Cable shielding | Aluminum mylar foil |
| Cable rating | CMG (CM) |
| Product colour | Black |
| Latching connectors | Yes |
| DisplayPort Content Protection (DPCP) | Yes |
| HDCP | Yes |
| Maximum refresh rate | 60 Hz |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 3840 x 2400, 2560 x 1600 (WQXGA) |
| Maximum resolution | 3840 x 2400 pixels |
| DisplayPort version | 1.2 |
| Connector contacts plating | Nickel |
| Connector 2 form factor | Straight |
| Connector 1 form factor | Straight |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Connector 2 | DisplayPort |
| Connector 1 | DisplayPort |
| Cable length | 3 m |
| Certificates | |
|---|---|
| Compliance certificates | RoHS, CE |
| Weight & dimensions | |
|---|---|
| Weight | 210 g |
| Cable diameter | 7.3 mm |
| Packaging data | |
|---|---|
| Package weight | 219 g |
| Package height | 22 mm |
| Package depth | 220 mm |
| Package width | 200 mm |
| Packaging content | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Logistics data | |
|---|---|
| Products per master (outer) case | 50 pc(s) |
| Master (outer) case height | 280 mm |
| Master (outer) case length | 500 mm |
| Master (outer) case width | 330 mm |
| Harmonized System (HS) code | 84733080 |
