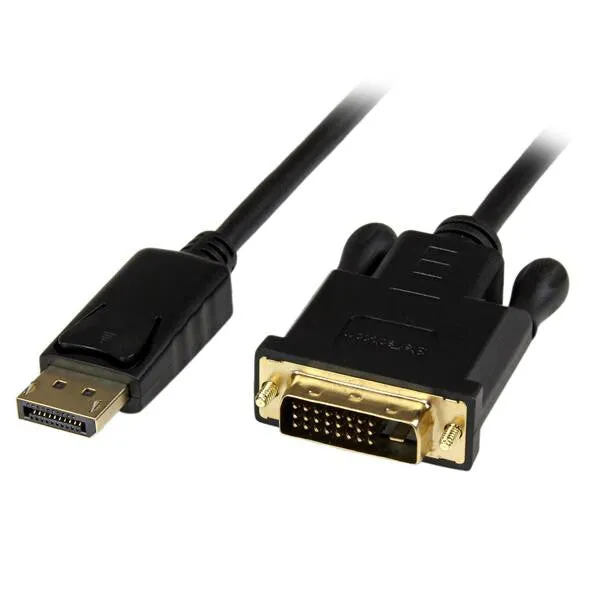

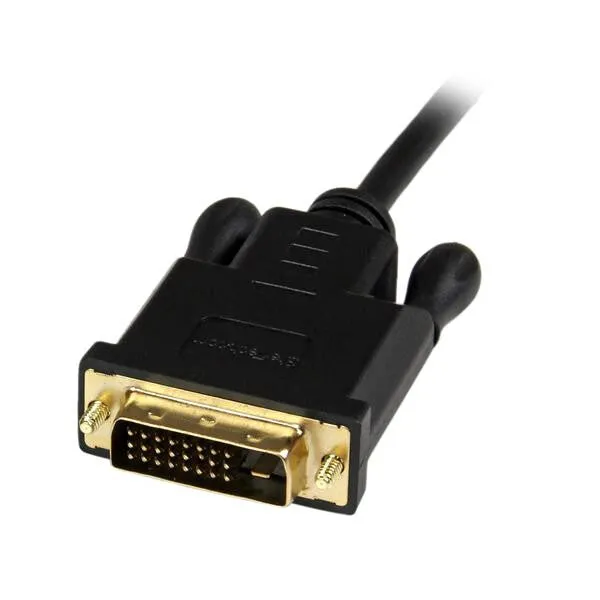

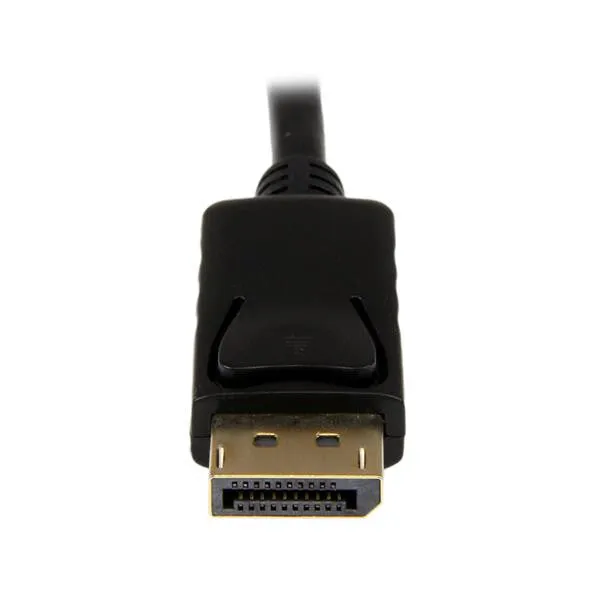

StarTech.com 6ft (1.8m) DisplayPort to DVI Cable – 1080p Video – Active DisplayPort to DVI Adapter Cable – DisplayPort to DVI-D Cable Single Link – DP 1.2 to DVI Monitor Cable Converter
- 1.8 m
- DisplayPort Straight Male
- DVI-D Straight Male
- 1920 x 1200 pixels
- Black
- 1 pc(s)
Connect a DisplayPort-equipped PC to a DVI display, with an active 6ft cable
The DP2DVIMM6BS 6ft active DisplayPort to DVI converter cable lets you connect your DisplayPort-equipped desktop or laptop directly to a DVI monitor or projector with no additional adapters or cables required — a cost-effective solution for enabling your new DisplayPort computer to work with an older DVI monitor or projector.
For guaranteed compatibility with virtually any DisplayPort output the active DisplayPort to DVI adapter supports multimode (DP++) as well as single-mode DisplayPort signals. Unlike passive adapters, this ensures the DP2DVIMM6BS can be used with graphics cards that are not capable of outputting multimode DP++ signals, such as ATI® Eyefinity cards.
Plus, because the converter cable supports video resolutions up to 1920×1200 you can convert a DisplayPort video source to DVI without sacrificing video quality.
The DP2DVIMM6BS is backed by a 3-year StarTech.com warranty and free lifetime technical support.
Note:
This adapter is not compatible for use with the Apple Cinema Display.
The StarTech.com Advantage
| Features | |
|---|---|
| Converter type | Active |
| Plug and Play | Yes |
| Chipset | Parade – PS171 |
| Product colour | Black |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
| Maximum resolution | 1920 x 1200 pixels |
| Dual Link DVI | No |
| DisplayPort version | 1.2 |
| Audio connector | No |
| Connector 2 form factor | Straight |
| Connector 1 form factor | Straight |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Connector 2 | DVI-D |
| Connector 1 | DisplayPort |
| Cable length | 1.8 m |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 40 – 85% |
| Storage temperature (T-T) | -10 – 70 °C |
| Operating temperature (T-T) | 0 – 60 °C |
| Certificates | |
|---|---|
| Certification | CE, FCC, REACH |
| Compliance certificates | RoHS |
| Weight & dimensions | |
|---|---|
| Height | 15 mm |
| Depth | 1900 mm |
| Width | 40 mm |
| Weight | 105.2 g |
| Packaging data | |
|---|---|
| Package weight | 123 g |
| Package height | 15 mm |
| Package depth | 220 mm |
| Package width | 194 mm |
| Packaging content | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Logistics data | |
|---|---|
| Products per master (outer) case | 150 pc(s) |
| Master (outer) case height | 435 mm |
| Master (outer) case length | 415 mm |
| Master (outer) case width | 420 mm |
| Harmonized System (HS) code | 84733080 |
