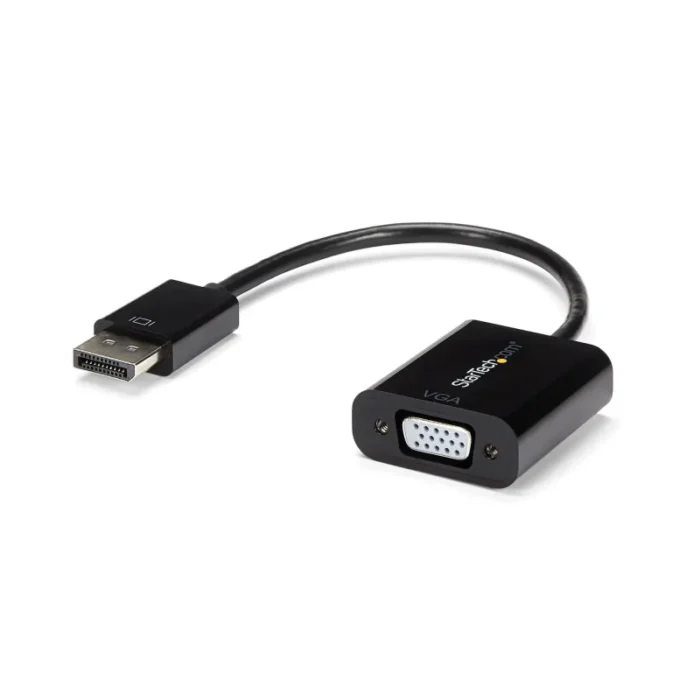

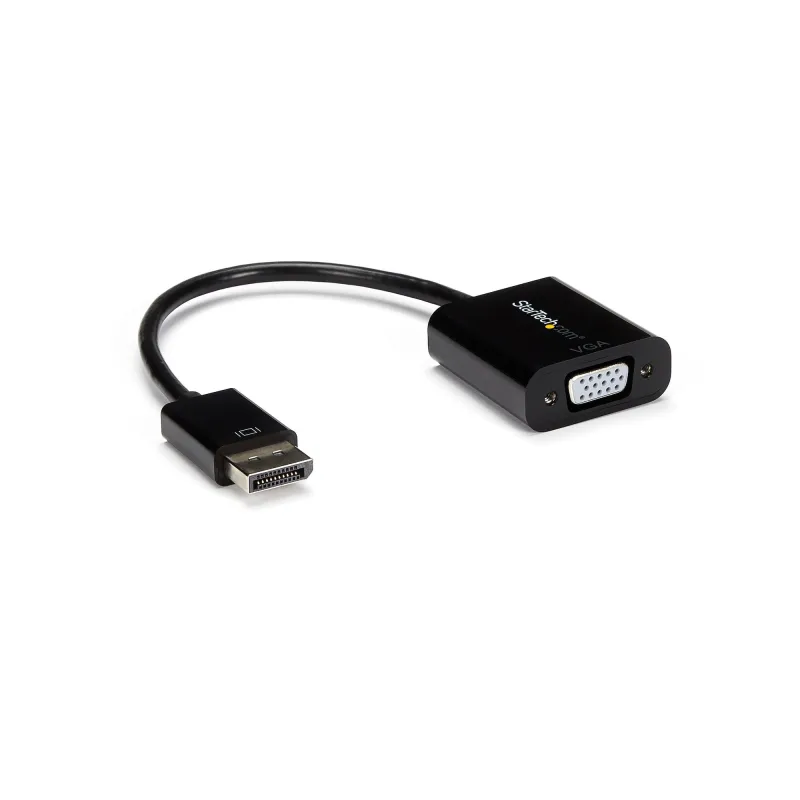

StarTech.com DisplayPort to VGA Adapter – Active DP to VGA Converter – 1080p Video – DP/DP++ Source to VGA Monitor Cable Adapter – DP to VGA Adapter Dongle Digital to Analog – DP 1.2 to VGA
- DISPLAYPORT TO VGA ADAPTER: DisplayPort 1.2 (HBR2) adapter connects a VGA display or projector supporting 2048×1152, 1920×1200 & 1920×1080 (1080p) at 60Hz; EDID & DDC pass-through ensure compatibility between source & display / 3.9″ (10cm) attached cable
- COMPATIBILITY: Active digital to analog converter supports DP or DP++ source w/ standard DP connector incl workstations, desktops (AMD/Nvidia), laptops, small form factor computers & docking stations
- CONNECT TO A PRIMARY OR SECONDARY DISPLAY: Connect a VGA monitor or projector, or add a second display to your workstation using this DP to VGA video adapter; Sleek and compact design makes it easy to travel to and from office or home
- SCREW LOCKING VGA: Non-latching DP connector is easy to disconnect from a hard to reach source / Supports VGA screw locking cable to prevent cable from coming loose or accidental disconnection / Tested with VGA cables up to 25 ft long
- EASY TO USE: With no software or drivers required, the DP to VGA adapter dongle works with any OS including Windows, Ubuntu and macOS; DisplayPort male to VGA female / Available in a 5-pack (DP2VGA3X5)
DisplayPort 1.2 | Multi-Monitor Solution | Plug & Play Connectivity
This DisplayPort to VGA adapter lets you connect your DisplayPort equipped laptop or desktop computer to a VGA monitor or projector, eliminating the expense of upgrading to a DP display.
Crystal-Clear Picture Quality
With support for video resolutions up to 1920×1200 or 1080p, you’ll be surprised at the picture quality the adapter provides, even when connected to an older VGA monitor, projector or television. The adapter harnesses the video capabilities built into your DisplayPort connection to deliver every detail in stunning high-definition.
Works with Your Legacy VGA Displays & Projectors

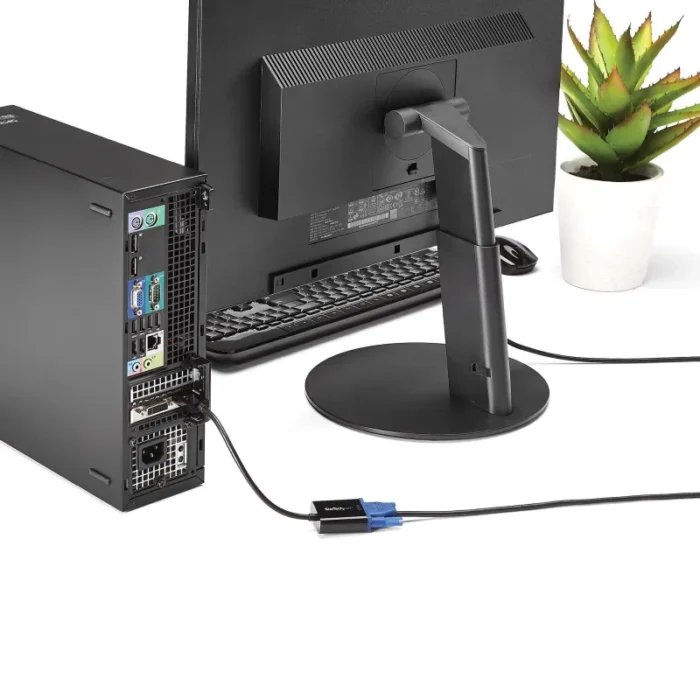

This DisplayPort video adapter makes your DP computer fully compatible with legacy VGA monitors or projectors in your home or around the office. You can use the converter to either connect to an existing VGA display or add a secondary monitor to your workstation, helping to boost your productivity.
Designed for Maximum Portability
This DisplayPort to VGA dongle maximizes portability with a compact, lightweight design, making it the perfect travel accessory to carry with your DisplayPort devices. The ultra-portable design makes this adapter perfect for BYOD (Bring Your Own Device) applications at the office, delivering HD video presentations on-the-go or even staying connected at home.
For added convenience, this DP to VGA converter supports plug-and-play connectivity and requires no additional software or drivers for a hassle-free setup.
DP2VGA3 is backed by a 3-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
| Features | |
|---|---|
| Converter type | Active video converter |
| Plug and Play | Yes |
| Chipset | Analogic ANX9833 |
| Product colour | Black |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2048 x 1152 |
| Supported video modes | 720p, 1080p |
| Maximum resolution | 2048 x 1152 pixels |
| DisplayPort version | 1.2 |
| Connector 2 form factor | Straight |
| Connector 1 form factor | Straight |
| Connector 2 gender | Female |
| Connector 1 gender | Male |
| Connector 2 | VGA (D-Sub) |
| Connector 1 | DisplayPort |
| Cable length | 0.1 m |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 10 – 85% |
| Operating relative humidity (H-H) | 10 – 85% |
| Storage temperature (T-T) | -10 – 70 °C |
| Operating temperature (T-T) | 0 – 45 °C |
| Certificates | |
|---|---|
| Certification | CE, FCC, RoHS |
| Compliance certificates | CE, RoHS |
| Weight & dimensions | |
|---|---|
| Height | 14 mm |
| Depth | 230 mm |
| Width | 37 mm |
| Weight | 32 g |
| Packaging data | |
|---|---|
| Package weight | 41 g |
| Package height | 18 mm |
| Package depth | 220 mm |
| Package width | 200 mm |
| Logistics data | |
|---|---|
| Products per master (outer) case | 150 pc(s) |
| Master (outer) case height | 210 mm |
| Master (outer) case length | 502 mm |
| Master (outer) case width | 330 mm |
| Harmonized System (HS) code | 84733080 |
