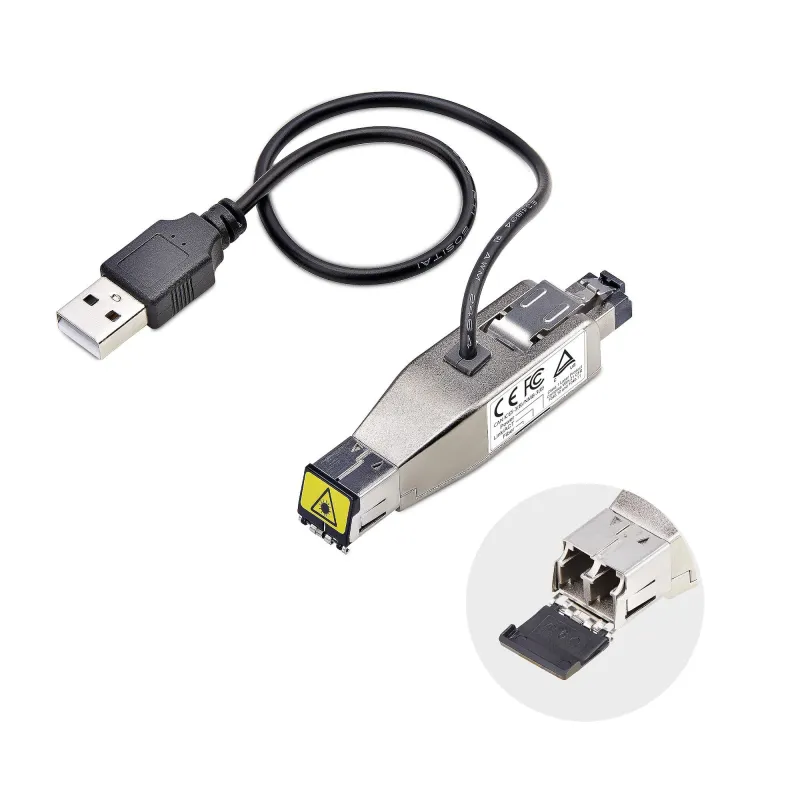

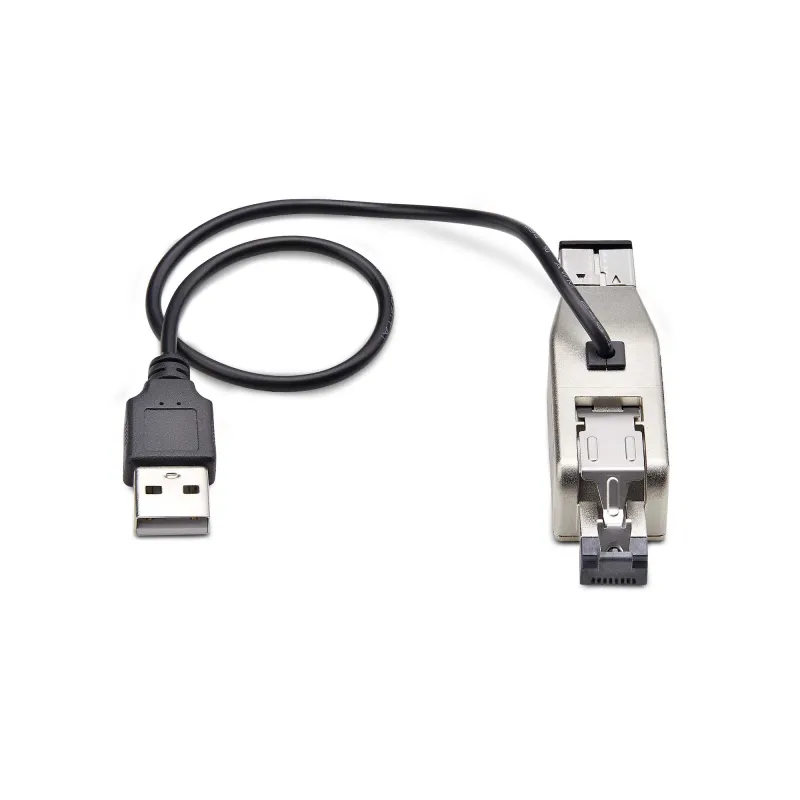

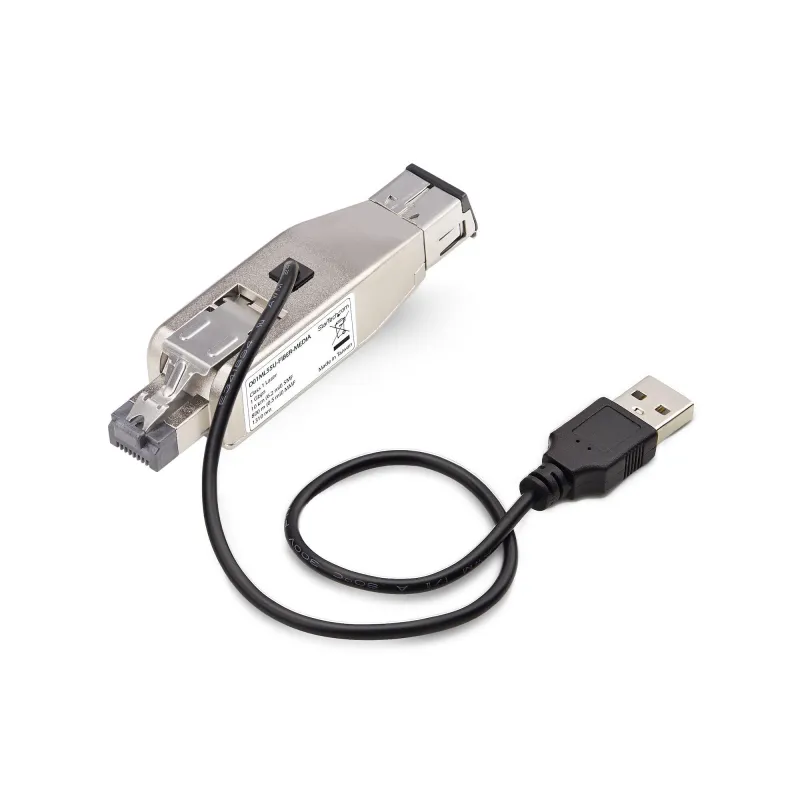

StarTech.com Gigabit Fiber to RJ45 Ethernet Media Converter Dongle, Optical Singlemode 10km/Multimode 800m, USB Powered, Compact Design, Metal Housing, Micro Mini, TAA
- FIBER TO ETHERNET MEDIA CONVERTER: Converts Gigabit fiber to RJ45 copper in a compact form factor; No SFP/Cat6 cables required; Convenient built-in USB cable for power when power outlets or PoE are unavailable; Dimensions 3.2×0.8×0.7in (82.4x20x17.5mm)
- APPLICATIONS: Upgrade computers, switches, routers, or other equipment to fiber; Suitable for on-site network troubleshooting, field deployments, industrial automation, telecommunications, broadcasting, data centers, and remote networking
- SHORT & LONG RANGE FIBER: LC slot compatible w/Single-Mode (10km) & Multi-Mode (800m); Single speed 1Gbps for both fiber and RJ-45 ports; Status LEDs including LFPT (Link Fault Pass-Through) enables IT admins to monitor network connectivity
- DURABLE CONSTRUCTION: IP20-rated full-metal housing for enhanced durability; Metal RJ45 latch tab ensures a robust and secure connection; Flexible strain relief on attached USB cable; Spring-loaded dust cover protects port when not in use
- TECH SPECS: Single speed 1Gbps; x1 LC port; x1 RJ45; LC duplex; Singlemode SMF (10km) & multimode MMF (800m); 1310nm; LFPT; IP20 rated all metal housing; 1ft (300mm) built-in USB power cable; Max power consumption 2.5W
Convert and extend a Gigabit RJ45 Ethernet connection over single or multimode LC fiber
This compact Gigabit Fiber to Ethernet Media Converter enables Cat6 or similar cabling to be upgraded to an EMI-free fiber connection. The TAA-compliant adapter is designed with a convenient built-in USB cable for power, making it a perfect choice when external power options are unavailable.
Simplified Installation
The unmanaged fiber media converter features a plug-and-play design that does not require additional software or settings to be changed. The metal housing features an IP20 rating and is an all-in-one construction with integrated LC fiber and RJ45 ports. The RJ45 side features a metal tab to ensure a reliable and secure fit and prevent accidental disconnections.
Network Features
The LC slot is compatible with Single-Mode (10km) and Multimode (800m) fiber cables up to 1Gbps. A spring-loaded tab protects the port when not in use. The converter supports LFPT (Link Fault Pass-Through), allowing IT administrators to monitor and assess network connectivity at a glance based on the LED behavior.
Compatibility
This LAN-to-fiber converter is ideal for upgrading computers, switches, routers, or other equipment from copper to fiber. It suits various applications, including field deployments, industrial automation, telecommunications, broadcasting, data centers, and remote networking. Experience reliable connectivity with EMI immunity over long distances with this compact (3.2×0.8×0.7in/82.39x20x17.5mm) and power-efficient (2.5W max) dongle.
The StarTech.com Advantage
| Network | |
|---|---|
| Chipset | Marvell – 88E1512 |
| Duplex system | Full |
| Auto-negotiation | Yes |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Networking standards | IEEE 802.3ab, IEEE 802.3z |
| Converter output interface | 1000Base-LX |
| Converter input interface | 1000Base-T |
| Maximum data transfer rate | 1000 Mbit/s |
| Performance | |
|---|---|
| Fiber mode structure | Multi-mode, Single-mode |
| Wavelength | 1310 nm |
| Maximum transfer distance | 1000 m |
| Features | |
|---|---|
| Housing material | Metal, Plastic |
| LED indicators | Activity, Link, Power |
| Product colour | Black, Silver |
| International Protection (IP) code | IP20 |
| Internal | No |
| Ports & interfaces | |
|---|---|
| Fiber optic connector | LC |
| Fiber ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Power | |
|---|---|
| Power over Ethernet (PoE) | No |
| Power consumption (max) | 2.5 W |
| Weight & dimensions | |
|---|---|
| Weight | 49 g |
| Height | 18 mm |
| Depth | 20 mm |
| Width | 82 mm |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 – 85% |
| Operating temperature (T-T) | 0 – 50 °C |
| Packaging content | |
|---|---|
| User guide | Yes |
| Packaging data | |
|---|---|
| Package weight | 80 g |
| Package height | 32 mm |
| Package depth | 80 mm |
| Package width | 136 mm |
| Certificates | |
|---|---|
| Compliance certificates | Trade Agreements Act (TAA) |
| Logistics data | |
|---|---|
| Products per master (outer) case | 24 pc(s) |
| Master (outer) case height | 126 mm |
| Master (outer) case length | 290 mm |
| Master (outer) case width | 340 mm |
