StarTech.com TR-M2-REMOVABLE-PCIE drive bay panel Storage drive tray Black, Silver
- Storage drive tray Black, Silver
- SSD interface: PCI Express 4.0
- Hot-swap
- 64 Gbit/s
- S.M.A.R.T. support
- 1 pc(s)

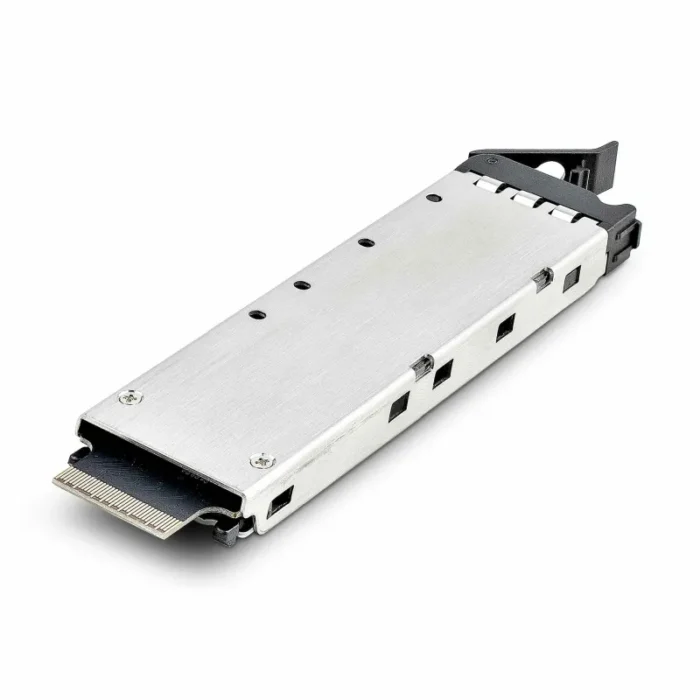

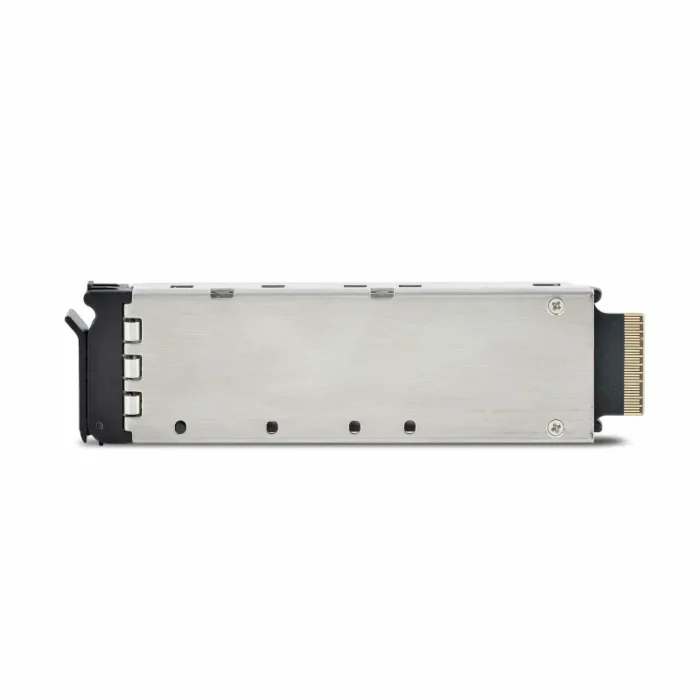

A spare drive tray to add and/or swap a 2230, 2242, 2260, or 2280 M-Key NVMe M.2 SSD
A spare drive tray for M2-REMOVABLE-PCIE-N1 or 2M2-REMOVABLE-PCIE, to add or swap a compatible drive. The drive tray accommodates M-Key M.2 NVMe SSDs in 2230, 2242, 2260, and 2280 sizes.
Toolless Installation

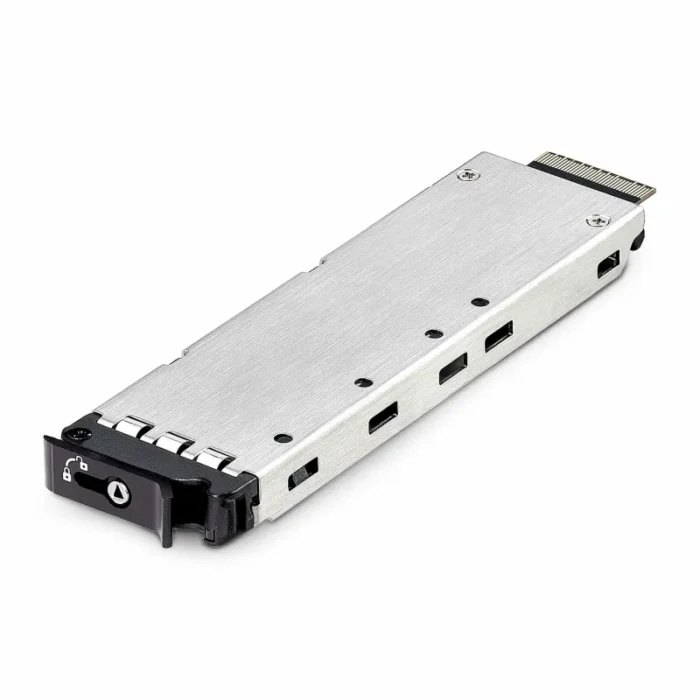

Install an M.2 drive into the drive tray without the need for tools. The drive tray features a power/activity LED indicator to monitor drive status. A latching mechanism with optional lock (2 keys included) deters the theft of mission-critical data storage devices.
Optimal Performance
The tray features thermal pads which aid heat dissipation, ensuring optimal and reliable performance while reducing potential thermal throttling. Anti-vibration springs on the drive tray reduce impact during installation and enhance the overall stability and longevity of the drive.
Hot-Swappable
When used with products from the PCIe Expansion Product Series, it provides flexibility and convenience for managing multiple M.2 drives. NVMe PCIe hot swap support is dependent on the motherboard. Verify hot swap support with the manufacturer of the motherboard and for instructions regarding how to enable this feature.
The StarTech.com Advantage
| Features | |
|---|---|
| S.M.A.R.T. support | Yes |
| Data transfer rate | 64 Gbit/s |
| LED indicators | Yes |
| RAID support | No |
| TRIM support | Yes |
| Hot-swap | Yes |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
| Number of SSDs supported | 1 |
| Product colour | Black, Silver |
| Type | Storage drive tray |
| Weight & dimensions | |
|---|---|
| Width | 34 mm |
| Depth | 124 mm |
| Height | 12 mm |
| Weight | 36 g |
| Packaging data | |
|---|---|
| Package weight | 79.2 g |
| Package depth | 75 mm |
| Package height | 20 mm |
| Package width | 145 mm |
| Packaging content | |
|---|---|
| Number of lock keys included | 2 pc(s) |
| Quick start guide | Yes |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
|---|---|
| Products per master (outer) case | 100 pc(s) |
| Master (outer) case width | 485 mm |
| Master (outer) case length | 325 mm |
| Master (outer) case height | 270 mm |
