StarTech.com Triple-Monitor USB 3.0 Docking Station – 1x HDMI – 2x DisplayPort
- Wired
- Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-A
- Ethernet LAN 10,100,1000 Mbit/s Wake-on-LAN ready
- Auto MDI/MDI-X Full duplex
- Cable lock slot
Port Replicator | Mac & Windows® | 4K DP | 5 USB ports | TAA Compliant
This triple-monitor docking station turns your USB 3.0 laptop into a full workstation with two DisplayPort outputs and an HDMI output. Plus, unlike some proprietary docks that only work with specific brands of laptop, this dock is universal, working with your Mac or Windows computer with USB 3.0.
Triple Display Flexibility
The USB 3.0 docking station adds triple-monitor support to your workstation, with resolution support up to 4K (3840 x 2160p) on one display and 2048×1152 on the other two. With more screens, combined with high resolution, the dock maximizes your screen real estate so you can simultaneously access multiple applications and compose on one display while referencing material on the other. You can also use your laptop screen for four displays in total, making it easy to manage several programs at once and avoid the nuisance of minimizing or rearranging windows.
Powerful Connections and Fast Device Charging

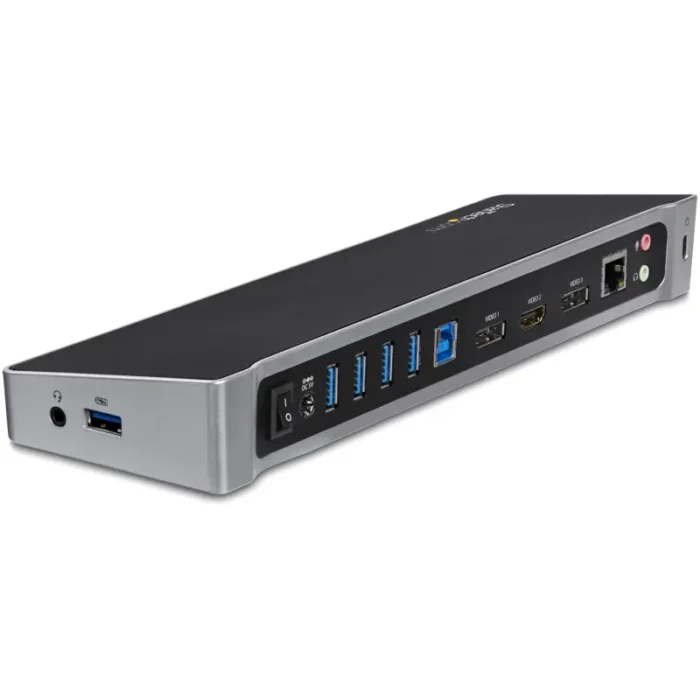

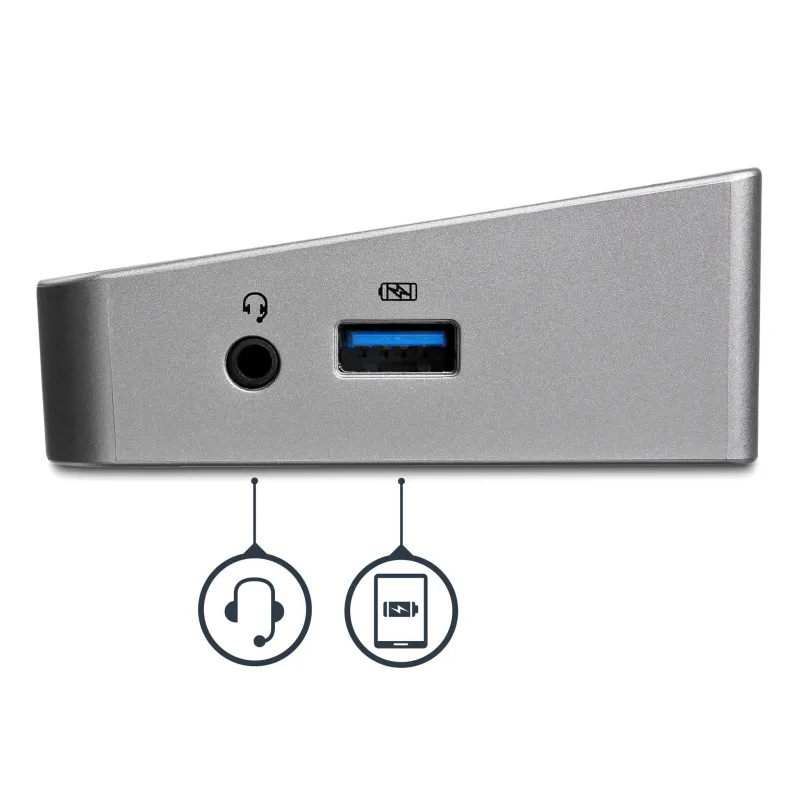

To support all of your USB peripherals, the docking station provides five USB 3.0 ports. The side-facing USB port is a USB fast-charge port (USB Battery Charging Specification 1.2), so you can charge your mobile devices faster than from standard USB ports, with or without your laptop connected to the dock. The dock also has a GbE port, headset jack and separate 3.5 mm audio and mic ports, so you’ll have all the connections you need to stay productive.
The TAA compliant USB3DOCKH2DP is backed by a 3-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| USB connector type | USB Type-A |
| Headphone connectivity | 3.5 mm |
| Headphone outputs | 2 |
| Combo headphone/mic port | Yes |
| Microphone in | Yes |
| DisplayPorts quantity | 2 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| Connectivity technology | Wired |
| Network | |
|---|---|
| Auto MDI/MDI-X | Yes |
| Full duplex | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Wake-on-LAN ready | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN | Yes |
| Performance | |
|---|---|
| Certification | CE, FCC, DisplayLink, TAA, REACH |
| Brand compatibility | Any brand |
| UASP support | Yes |
| LED indicators | Activity, Link |
| Housing material | Plastic |
| Cable lock slot | Yes |
| Maximum digital resolution | 3840 x 2160 pixels |
| Data transfer rate | 5 Gbit/s |
| Card reader integrated | No |
| Product colour | Black, Silver |
| Power | |
|---|---|
| Compatible power plug types | AU, EU, UK, US |
| Power plug type | Type N |
| Power consumption (typical) | 32.5 W |
| Output voltage | 5 V |
| Output current | 6.5 A |
| Input current | 1.5 A |
| AC input voltage | 100-240 V |
| Software | |
|---|---|
| Other operating systems supported | ChromeOS |
| Mac operating systems supported | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura |
| Mac compatibility | Yes |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 0 – 90% |
| Storage temperature (T-T) | -10 – 80 °C |
| Operating temperature (T-T) | 0 – 40 °C |

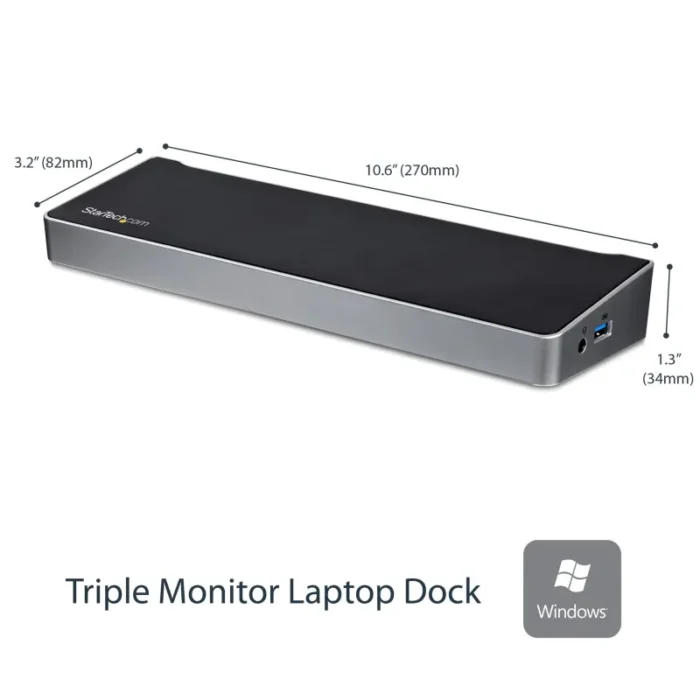

| Weight & dimensions | |
|---|---|
| Weight | 376 g |
| Height | 34 mm |
| Depth | 270 mm |
| Width | 82 mm |
| Packaging data | |
|---|---|
| Package weight | 1.03 kg |
| Package height | 71 mm |
| Package depth | 164 mm |
| Package width | 296 mm |
| Packaging content | |
|---|---|
| Cables included | USB |
| AC adapter included | Yes |
| Manual | Yes |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Logistics data | |
|---|---|
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case width | 363 mm |
| Master (outer) case length | 373 mm |
| Master (outer) case height | 395 mm |
| Harmonized System (HS) code | 84733020 |
| Other features | |
|---|---|
| Chipset | DisplayLink – DL-5910, VLI – VL812 |
| Number of microphone inputs | 1 |
| USB data transfer rates | 5000 Mbit/s |
