StarTech.com USB 3.0 Capture Device for High-Performance DVI Video – 1080p 60fps – Aluminum – TAA
- Record DVI video to your computer, and embed a 3.5mm audio source, at 1080p 60fps resolution
- DVI Video Capture Card / Raw Video Capture / USB 3.0 DVI Video Capture / Aluminum / Compact HD Video Recorder / DVI capture card / Game capture card / HD PVR / USB 3.0 video capture card / USB capture card / USB video capture card / Video capture device
- Record video for training and tutorial purposes
- Capture raw video using your preferred DirectShow compatible software; Separate 3.5 mm audio input
- PRODUCT ALERT: Latest Streamcatcher Pro software (included & available for download), with refreshed GUI, now adds simultaneous connection of multiple capture devices; Streamcatcher Pro is compatible with Windows 10 (Windows 8 and up)
Record DVI video to your computer, and embed a 3.5mm audio source, at 1080p 60fps resolution

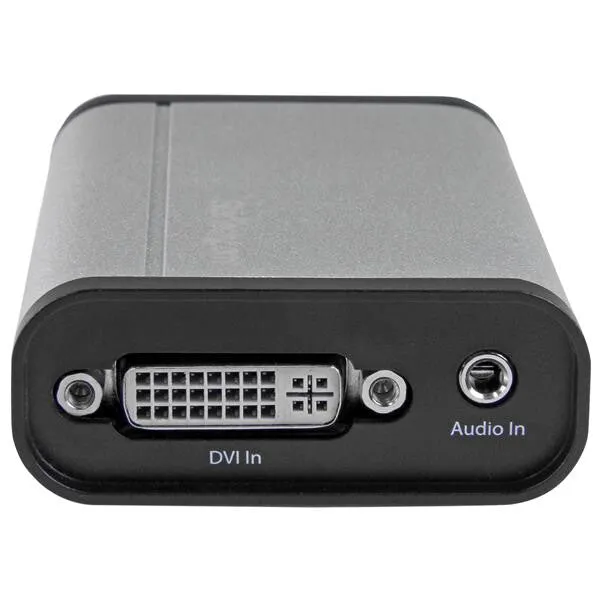

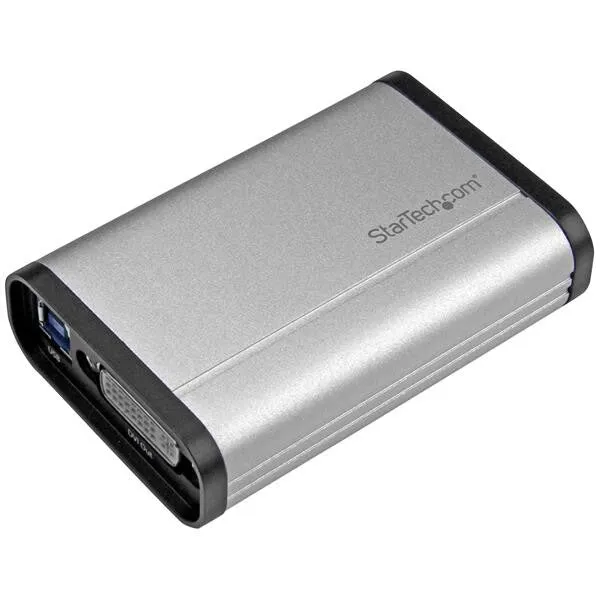

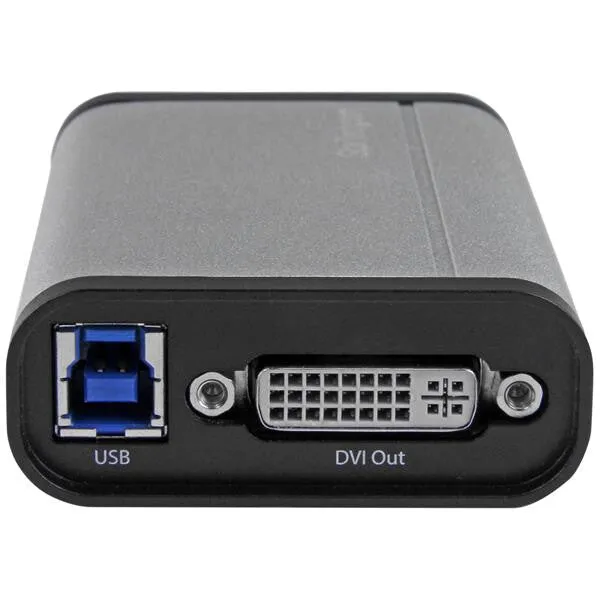

This DVI to USB 3.0 video capture device records high-definition DVI video to your computer. With an aluminum enclosure, this device is built strong for fixed-location or on-the-go capture. It offers a separate 3.5 mm audio input for accompanying audio or voice-overs, and a DVI pass-through port for connecting a monitor to review the video as it’s captured.
Capture HD video at 1080p 60fps
Record 1080p video at 60fps (frames per second), to save your content so it can be shared, stored, or edited. Capture from security equipment, control rooms, medical, or other industrial DVI devices, directly to your computer.
Easy video recording on Windows and Mac
The included software makes recording easy. Using a widely adopted codec, videos saved in StreamCatcher™ work with almost any video player and require no converting or editing.
Live stream on Windows
On Windows, you can live broadcast your video over the internet, using Twitch™ or other third-party video streaming platforms, with the included software.
DirectShow compatibility on Windows
With this capture device, you’re not tied to the included software. You can record raw/lossless video using any third-party DirectShow™ compatible software, such as Open Broadcaster Software (OBS).
Capture video from HDMI®, VGA or DVI devices
This versatile DVI capture device works with HDMI to DVI and VGA to DVI adapters, so you can record video from an HDMI or VGA source.
The StarTech.com Advantage
| Performance | |
|---|---|
| Certification | CE, FCC, TAA |
| Housing material | Aluminium |
| Mean time between failures (MTBF) | 504825 h |
| Chipset | Mstar MST3363CNK-170 |
| Interface | USB Type-B |
| Video capture resolution (max) | 1920 x 1080 pixels |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) |
| Internal | No |
| Product colour | Black, Silver |
| Video | |
|---|---|
| Maximum frame rate | 60 fps |
| Supported resolutions | 1920 x 1080, 1280 x 720, 1024 x 768, 800 x 600 |
| Analog signal format system | NTSC, PAL 60, PAL M |
| Audio | |
|---|---|
| Audio support | Yes |
| Supported audio channels | 2 |
| File formats | |
|---|---|
| Import video formats supported | H.264, MPEG4 |
| Ports & interfaces | |
|---|---|
| DVI-I ports quantity | 2 |
| Audio (L/R) in | 1 |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| USB connector type | USB Type-B |
| USB port | Yes |
| Power | |
|---|---|
| Power supply type | USB |
| Software | |
|---|---|
| Mac operating systems supported | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave |
| Mac compatibility | Yes |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 20 – 80% |
| Storage temperature (T-T) | -5 – 40 °C |
| Operating temperature (T-T) | 0 – 40 °C |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Weight & dimensions | |
|---|---|
| Weight | 102 g |
| Height | 24.3 mm |
| Depth | 92.2 mm |
| Width | 61.1 mm |
| Packaging content | |
|---|---|
| Quick installation guide | Yes |
| Cables included | USB |
| Packaging data | |
|---|---|
| Package height | 52 mm |
| Package width | 150 mm |
| Package depth | 217 mm |
| Package weight | 462 g |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
