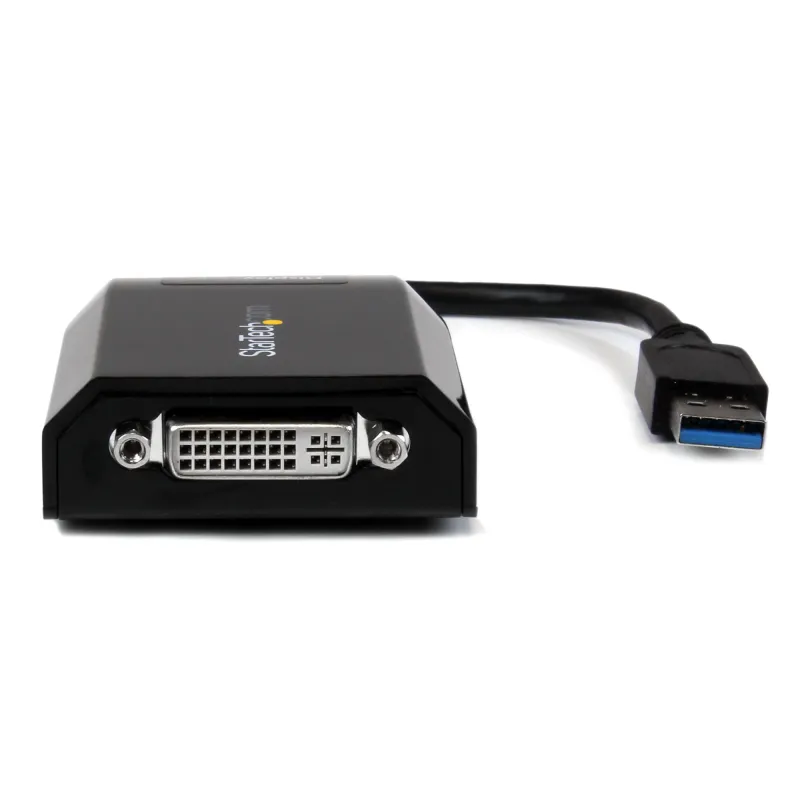

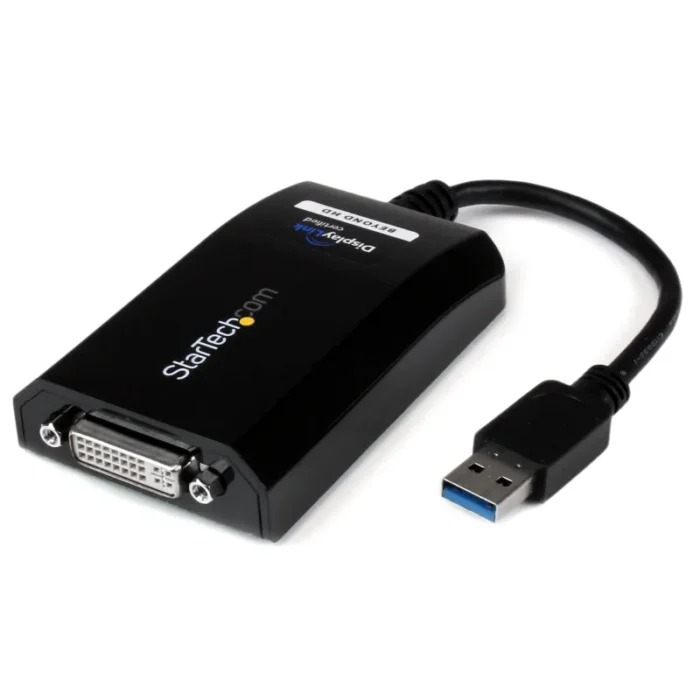

StarTech.com USB 3.0 to DVI / VGA Adapter – 2048×1152
- SuperSpeed USB 3.0 (5 Gbps) Interface and backwards compatible with USB 2.0
- Quick, easy installation

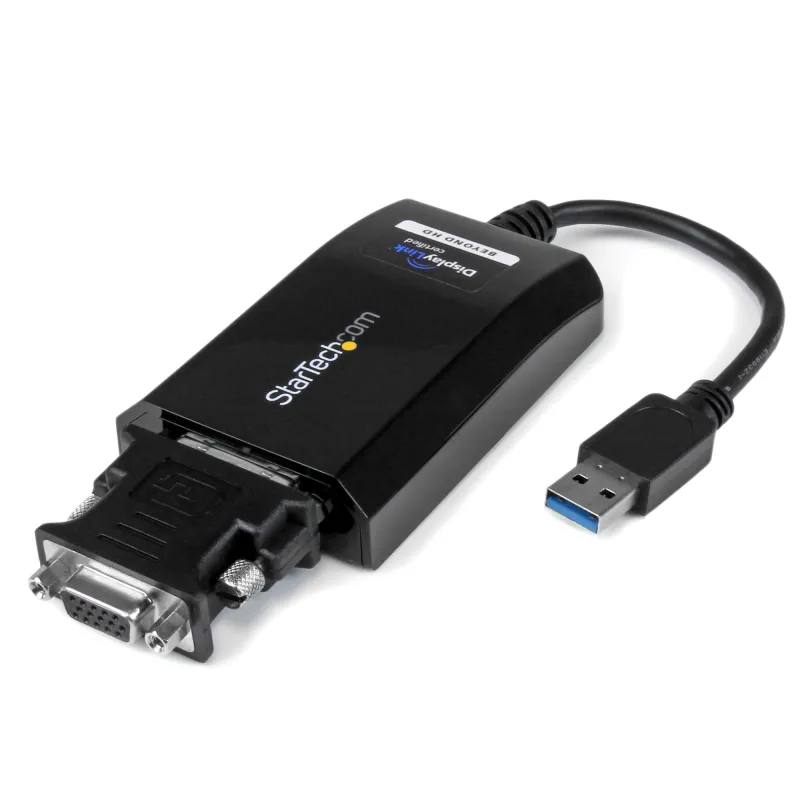

- DVI to VGA adapter included
- Supports resolutions up to 2048×1152
- USB-powered – No external power adapter required
- Choose between Mirrored, Extended or Primary display configurations
USB 3.0 External Video & Graphics Card | Multi-Monitor | USB-Powered | Supports Mac & Windows®
The USB32DVIPRO USB 3.0 to DVI Adapter turns an available USB 3.0 port into a DVI output, with high resolution 2048×1152 video support – a convenient external video solution that makes it easy to add multi-monitor capability to a USB 3.0-enabled desktop or laptop computer (optimal performance from USB 3.0, backward compatible with USB 2.0).
Leveraging the high-bandwidth (5 Gbps) SuperSpeed USB 3.0 interface, the adapter functions as a external graphics card to deliver smooth, high-resolution content to your DVI or VGA-capable display (DVI to VGA Adapter included). The adapter can be used to mirror your primary desktop, showing the same image on each display, or to extend your desktop to double your workspace and increase your productivity.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Recommended System Requirements:
CPU: Quad Core 2.4GHz or Higher (i5 recommended)
RAM: 4GB or higher
The StarTech.com Advantage
| Performance | |
|---|---|
| Certification | CE, FCC, REACH |
| Chipset | DisplayLink – DL-3100 |
| USB pass-through | No |
| Supported graphics resolutions | 1280 x 800, 1366 x 768, 2048 x 1152, 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 640 x 480 (VGA), 800 x 600 (SVGA) |
| Maximum resolution | 2048 x 1152 pixels |
| Internal memory | 512 MB |
| DVI connector type | DVI-I |
| Number of displays supported | 1 |
| DisplayPort output | No |
| HDMI output | No |
| DVI output | Yes |
| USB connector gender | Male |
| USB connector type | USB Type-A |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| Design | |
|---|---|
| Integrated USB cable | Yes |
| Housing material | Plastic |
| Product colour | Black |
| System requirements | |
|---|---|
| Minimum RAM | 4.1 TB |
| Minimum processor speed | 2.4 GHz |
| Minimum processor family | Core i5 |
| Other operating systems supported | ChromeOS |
| Linux operating systems supported | Ubuntu 14.04, Ubuntu 16.04 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 13.0 Ventura |
| Mac compatibility | Yes |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Weight & dimensions | |
|---|---|
| USB cable length | 0.152 m |
| Weight | 91 g |
| Height | 16 mm |
| Depth | 78 mm |
| Width | 43.5 mm |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 0 – 85% |
| Storage temperature (T-T) | -10 – 80 °C |
| Operating temperature (T-T) | 10 – 40 °C |
| Packaging data | |
|---|---|
| Package weight | 211 g |
| Package height | 30 mm |
| Package depth | 171 mm |
| Package width | 144 mm |
| Packaging content | |
|---|---|
| Interface adapters included | DVI-I male – VGA female |
| Drivers included | Yes |
| Quick installation guide | Yes |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Master (outer) case height | 330 mm |
| Master (outer) case length | 430 mm |
| Master (outer) case width | 430 mm |
| Products per master (outer) case | 40 pc(s) |
