StarTech.com VGA to RCA and S-Video Converter – USB Power
- Provides output in both Composite and S-Video formats
- Supports PC input resolutions up to 1920 x 1080
- Select between NTSC and PAL outputs
- Dynamically adjust image underscan and overscan
- Powered by USB port
Computer to TV Converter | 1080p to 480i Scaler |Composite & S-Video | 2-Year Warranty

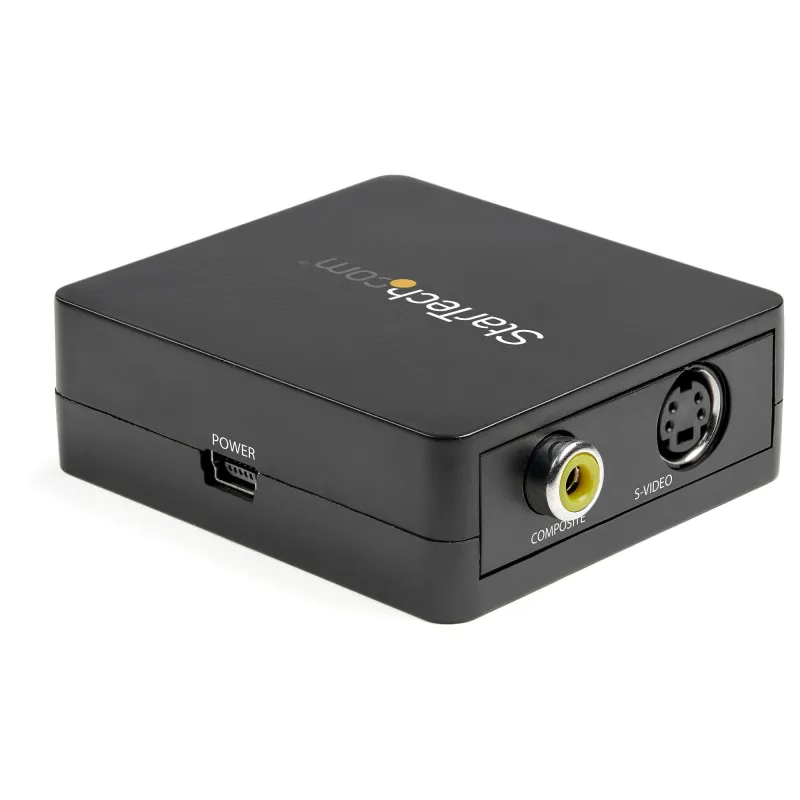

This VGA to RCA/S-Video converter box provides a simple way to convert and scale a 1080p VGA video input signal to a 480i composite (CVBS) or S-Video output signal. Perfect for use with legacy projectors or TV sets.
Hassle-Free Setup and Easy to Use

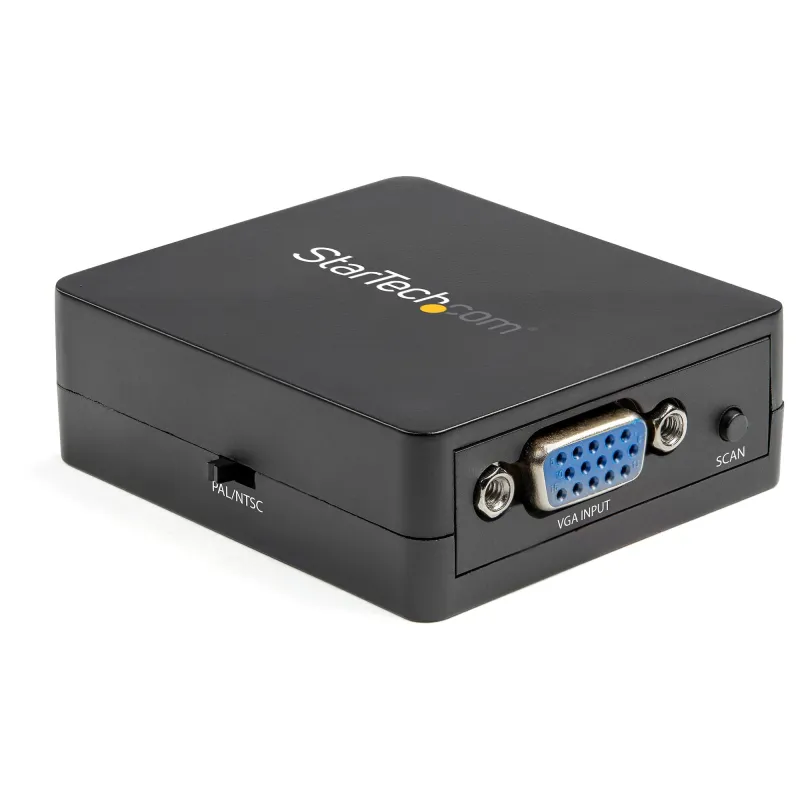

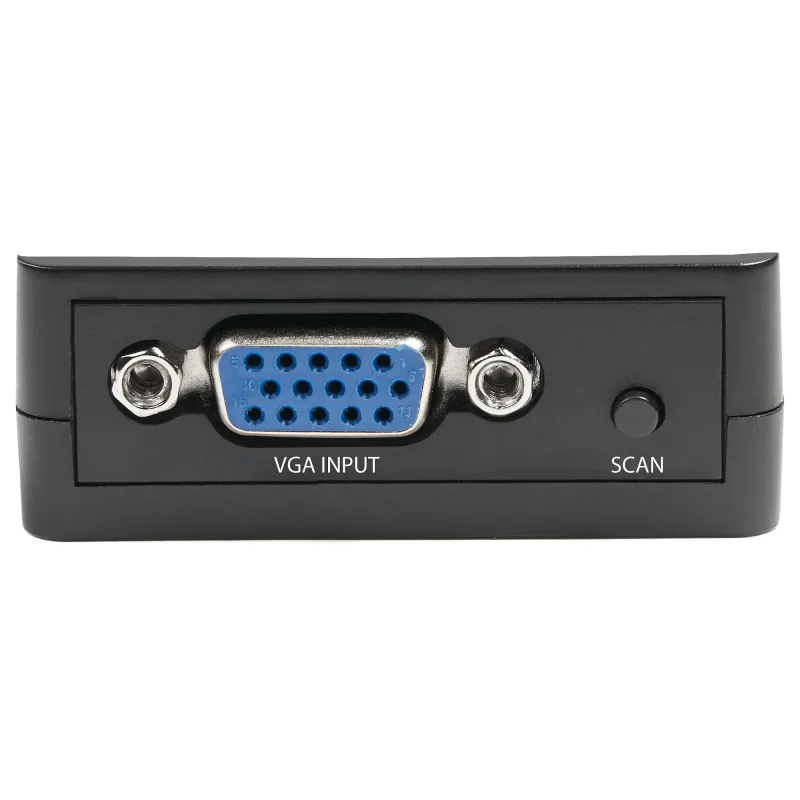

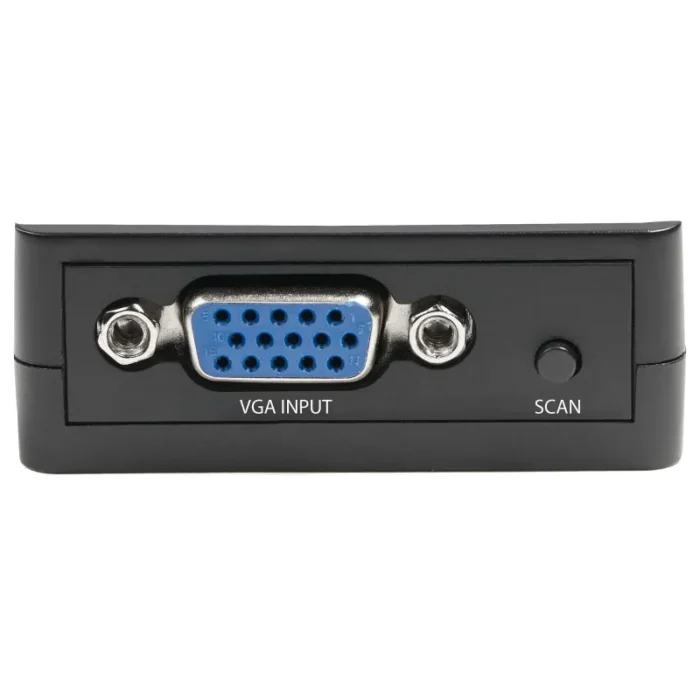

Equipped with a NTSC/PAL toggle switch and a scan button for simple configuration and selection of your video output settings, this compact VGA to Composite and S-Video adapter installs quickly and easily, for a true plug-and-play experience.
Save on Upgrade Costs
By using this VGA to AV adapter you can connect a PCs VGA connector to legacy TVs and projectors, ultimately saving the costs of upgrading your equipment. It’s ideal for boardroom settings, medical imaging and watching videos on your S-Video or Composite display.
Crystal-Clear Picture Quality
The PC to television converter features an integrated video scaler circuit that dynamically converts VGA video input signals with resolutions up to 1920×1200 @ 60Hz. To ensure compatibility with your display or projector the computer to TV converter outputs high quality 640 x 480 video, the highest supported by S-Video or Composite.
VGA2VID2 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
| Features | |
|---|---|
| Certification | CE, FCC, REACH |
| Product colour | Black |
| Converter type | Active video converter |
| Video | |
|---|---|
| Maximum refresh rate | 60 Hz |
| Video resolutions | 640 x 480,1920 x 1080 pixels |
| Maximum video resolution | 1920 x 1080 pixels |
| Ports & interfaces | |
|---|---|
| Host interface | VGA (D-Sub) |
| Output interface | Composite/S-Video |
| Power | |
|---|---|
| Power consumption (typical) | 2.5 W |
| USB powered | Yes |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 – 90% |
| Storage temperature (T-T) | -10 – 80 °C |
| Operating temperature (T-T) | 0 – 50 °C |
| Weight & dimensions | |
|---|---|
| Weight | 46 g |
| Height | 20 mm |
| Depth | 60 mm |
| Width | 54 mm |
| Packaging data | |
|---|---|
| Package weight | 162 g |
| Package height | 24 mm |
| Package depth | 105 mm |
| Package width | 133 mm |
| Quantity | 1 |
| Quick installation guide | Yes |
| Cables included | USB |
| Logistics data | |
|---|---|
| Products per master (outer) case | 100 pc(s) |
| Master (outer) case height | 351 mm |
| Master (outer) case length | 568 mm |
| Master (outer) case width | 540 mm |
| Harmonized System (HS) code | 85176990 |
