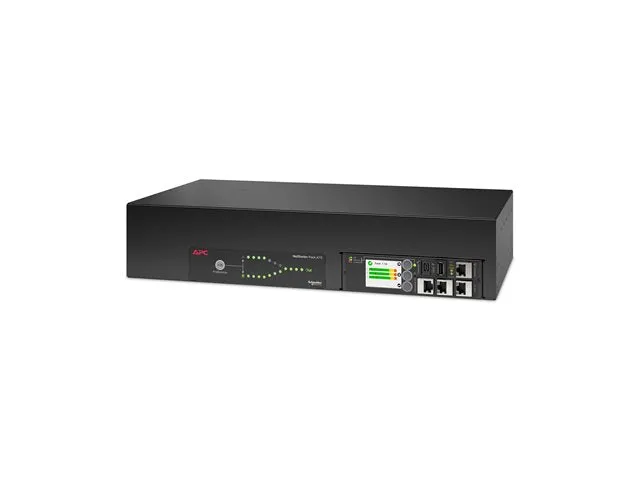

TieDex UK APC NetShelter – automatic transfer switch – 7400 VA
APC NetShelter – Automatic transfer switch (rack-mountable) – AC 207-253 V – 7400 VA – 1-phase – Ethernet 10/100/1000, USB – output connectors: 18 – 2U – 2.44 m cord – black
Basic Specifications
- Manufacturer’s Part Number
- AP4424A
- EAN
- 0731304432456
- Manufacturer Warranty
- 2-year warranty
- Networking
- Ethernet 10/100/1000, USB
- Weight
- 6.94 kg
- Product Description
- APC NetShelter – automatic transfer switch – 7400 VA
- Dimensions (WxDxH)
- 43.2 cm x 23.6 cm x 8.8 cm
- Colour
- Black
- Input Connectors
- 2 x power IEC 60309 32A
- Device Type
- Automatic transfer switch – rack-mountable
- Output connectors
- 16 x power IEC 60320 C13 ¦ 2 x power IEC 60320 C19
- Input Wiring
- 1-phase
- Input Voltage
- AC 207-253 V
- Output Voltage
- AC 230 V
- Included Accessories
- Mounting kit, rack mounting brackets, serial configuration cable
- Power Capacity
- 7400 VA
- Rack Size
- 2U
- Cord Length
- 2.44 m
General
- Device Type
- Automatic transfer switch – rack-mountable
- Height (Rack Units)
- 2U
- Cord Length
- 2.44 m
- Colour
- Black
Dimensions & Weight
- Width
- 43.2 cm
- Depth
- 23.6 cm
- Height
- 8.8 cm
- Weight
- 6.94 kg
Miscellaneous
- Included Accessories
- Mounting kit, rack mounting brackets, serial configuration cable
- Cables Included
- 2 x serial cable – external – 2.44 m
- Rack Mounting Kit
- Included
- Features
- Horizontal mount, mercury free, LED indicators, LCD display
- Compliant Standards
- EN 55022 Class A, FCC Part 15 A, REACH, EU RoHS, China RoHS, WEEE
Manufacturer Warranty
- Service & Support
- Limited warranty – replace or repair – 2 years
Networking
- Remote Management Interface
- Ethernet 10/100/1000, USB
Dimensions & Weight (Shipping)
- Shipping Width
- 58.4 cm
- Shipping Depth
- 35.6 cm
- Shipping Height
- 21 cm
- Shipping Weight
- 9.43 kg
Expansion / Connectivity
- Interfaces
- 4 x LAN – RJ-45 ¦ 1 x USB – 4 pin USB Type A ¦ 1 x USB – 5 pin Micro-USB Type B
Environmental Parameters
- Min Operating Temperature
- -5 °C
- Max Operating Temperature
- 45 °C
- Humidity Range Operating
- 5 – 95% RH (non-condensing)
Power Device
- Input Voltage
- AC 207-253 V
- Input Wiring
- 1-phase
- Frequency Required
- 50/60 Hz
- Input Connectors
- 2 x power IEC 60309 32A
- Power Output Connectors Details
- 16 x power IEC 60320 C13 ¦ 2 x power IEC 60320 C19
- Output Voltage
- AC 230 V
- Max Electric Current
- 32 A
- Power Capacity
- 7400 VA
- Circuit Protection
- Circuit breaker
