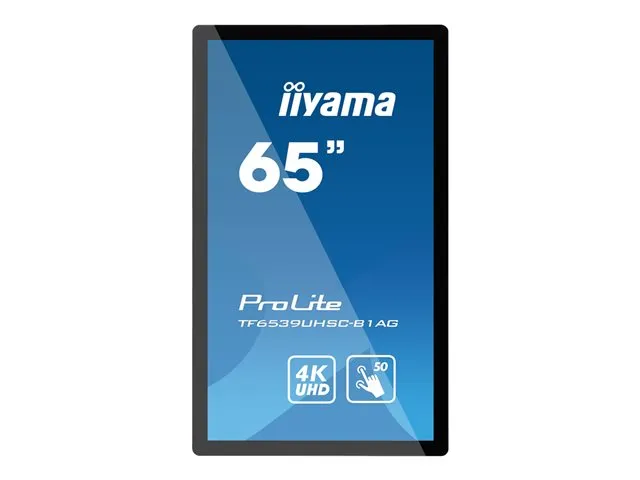

TieDex UK iiyama ProLite TF6539UHSC-B1AG 65″ LED-backlit LCD display – 4K – for digital signage / interactive communication
iiyama ProLite TF6539UHSC-B1AG – 65″ Diagonal Class LED-backlit LCD display – interactive digital signage – with touchscreen (multi touch) – 4K UHD (2160p) 3840 x 2160 – matte black
Basic Specifications
- Manufacturer’s Part Number
- TF6539UHSC-B1AG
- EAN
- 4948570118083
- Product Type
- LED-backlit LCD flat panel display with touchscreen (multi touch)
- Product Description
- iiyama ProLite TF6539UHSC-B1AG 65″ LED-backlit LCD display – 4K – for digital signage / interactive communication
- HDMI Ports Qty
- 2 ports
- LCD Backlight Technology
- LED backlight
- Resolution
- 3840 x 2160
- Image Aspect Ratio
- 16:9
- Power Consumption Operational
- 175 Watt
- Model
- iiyama ProLite TF6539UHSC-B1AG
- Speaker System
- 2 speakers
- PC Interface
- VGA (HD-15), HDMI, DisplayPort
- Dimensions (WxDxH) – without stand
- 150.35 cm x 6.7 cm x 88.05 cm
- Display Format
- 4K UHD (2160p)
- Energy Class
- Class G
- USB
- Yes
- Diagonal Class
- 65″
- Video Interface
- HDMI
- Commercial Use
- Interactive
- Voltage
- (50/60 Hz)
- Technology
- IPS
- Colour
- Matte black
- TV Tuner
- No tuner
- Weight
- 56 kg
- Power Consumption (On mode)
- 172 W
- Display Resolution
- 4K Ultra HD (2160p)
- Connectivity
- LAN
- Included Accessories
- Cable cover
- Power Consumption Stand by
- 1 Watt
- Frame Rate & Enhancement Technology
- 60 Hz Frame Rate
- Touchscreen
- Yes
- Energy Label QR Code URL
- Https://eprel.ec.europa.eu/qr/392478
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
Audio System
- Speaker System
- 2 speakers
- Output Power / Total
- 16 Watt
- Speakers
- 2 x speaker – 8 Watt
Stands & Mounts
- Stand
- Optional
- Flat Panel Mount Interface
- 600 x 400 mm
- VESA Compatibility
- Yes
Media Player
- USB Port
- Yes
- USB Ports Qty
- 1
Connections
- Connector Type
- VGA input ¦ DisplayPort input ¦ 2 x HDMI ¦ Audio input ¦ RS-232C ¦ LAN ¦ Audio output ¦ USB
Display
- LCD Display Technology
- IPS
- Resolution
- 3840 x 2160
- Display Format
- 4K UHD (2160p)
- Image Aspect Ratio
- 16:9
- Frame Rate & Enhancement Technology
- 60 Hz Frame Rate
- LCD Backlight Technology
- LED backlight
- Coating
- Anti-glare, 7H Hard, glass coating, 4 mm glass
- Image Contrast Ratio
- 1100:1
- Brightness
- 500 cd/m²
- Viewing Angle
- 178 degrees
- Viewing Angle (Vertical)
- 178 degrees
- Touchpoints Qty
- 50
- Response Time
- 8 ms
- Display Menu Language
- English, German, French, Italian, Polish, Russian, Spanish, Dutch
- Operation Hours / Days
- 24 / 7
- Features
- Anti-image retention, Palm Rejection, ball drop test proof, edge-to-edge glass, cable management, Projected Capacitive Technology (PCAP), 6 mm touch through-glass
General
- Product Type
- LED-backlit LCD flat panel display
- Energy Label QR Code URL
- Https://eprel.ec.europa.eu/qr/392478
- Energy Class
- Class G
- Power Consumption Operational
- 175 Watt
- Power Consumption (On mode)
- 172 W
- Power Consumption SDR (On mode)
- 172 kWh/1000h
- Diagonal Class
- 65″
- Commercial Use
- Yes – interactive digital signage
- Combined With
- Touchscreen (multi touch)
- TV Tuner
- No tuner
- TV Tuner Presence
- No
- Sensors
- Temperature sensor
- Video Interface
- HDMI
- HDMI Ports Qty
- 2 ports
- PC Interface
- VGA (HD-15), HDMI, DisplayPort
- Modes
- Portrait mode, landscape mode, Picture mode, Face-up Mode
- Design
- Open Frame
- Dimensions
- Without stand
- Width
- 150.35 cm
- Depth
- 6.7 cm
- Height
- 88.05 cm
- Weight
- 56 kg
- Enclosure Colour
- Matte black
Miscellaneous
- Included Accessories
- Cable cover
- Cables Included
- DisplayPort cable ¦ USB cable ¦ HDMI cable
- Compliant Standards
- Plug and Play, DDC-2B, RoHS, WEEE, cULus, REACH, IP54, ERP, EAC, REACH SvHC, HDCP, UKCA
Power
- Power Device
- Power supply
- Input Voltage
- (50/60 Hz)
- Power Consumption Stand by
- 1 Watt
- Power Consumption (Off Mode)
- 0.5 Watt
Dimensions & Weight (Shipping)
- Width (Shipping)
- 167 cm
- Depth (Shipping)
- 31 cm
- Height (Shipping)
- 102 cm
- Weight (Shipping)
- 65 kg
Network & Internet Multimedia
- Connectivity
- LAN
