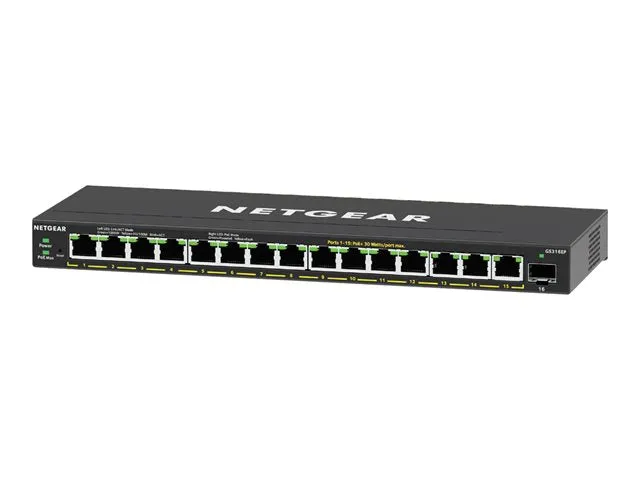

TieDex UK NETGEAR Plus GS316EP – switch – 16 ports – Managed
NETGEAR Plus GS316EP – Switch – Managed – 15 x 10/100/1000 (PoE+) + 1 x SFP – desktop, wall-mountable – PoE+ (180 W)
Basic Specifications
- Manufacturer’s Part Number
- GS316EP-100UKS
- EAN
- 0606449153668
- Manufacturer Warranty
- 5-year warranty
- Weight
- 883 g
- Product Description
- NETGEAR Plus GS316EP – switch – 16 ports – Managed
- Model
- NETGEAR Plus GS316EP
- Dimensions (WxDxH)
- 28.6 cm x 10.2 cm x 2.7 cm
- Features
- Flow control, VLAN support, IGMP snooping, port mirroring, store and forward, Broadcast Storm Control, full duplex mode, QoS, fanless, DHCP client, loop prevention, CoS, ToS, DSCP support, cable test, Link Aggregation, rate limit, DoS protection, EEE, WRR, loopback detection, VLAN Tagging, port-based VLAN, port trunking, block unknown multicast, password protection, PoE scheduling, uninterrupted PoE
- Device Type
- Switch – 16 ports – Managed
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3az
- Capacity
- Buffer memory (kBytes): 192 ¦ VLANs supported: 64 ¦ Multicast groups: 128
- MAC Address Table Size
- 4K entries
- Subtype
- Gigabit Ethernet
- Performance
- Bandwidth: 28 Gbps
- Routing Protocol
- IGMPv2, IGMP, IGMPv3
- Remote Management Protocol
- HTTP, DHCP
- Jumbo Frame Support
- 10000 bytes
- Ports
- 15 x 10/100/1000 (PoE+) + 1 x SFP
- PoE Budget
- 180 W
- Power Over Ethernet (PoE)
- PoE+
General
- Device Type
- Switch – 16 ports – Managed
- Enclosure Type
- Desktop, wall-mountable
- Subtype
- Gigabit Ethernet
- Ports
- 15 x 10/100/1000 (PoE+) + 1 x SFP
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 180 W
- Performance
- Bandwidth: 28 Gbps
- Capacity
- Buffer memory (kBytes): 192 ¦ VLANs supported: 64 ¦ Multicast groups: 128
- MAC Address Table Size
- 4K entries
- Jumbo Frame Support
- 10000 bytes
- Routing Protocol
- IGMPv2, IGMP, IGMPv3
- Remote Management Protocol
- HTTP, DHCP
- Features
- Flow control, VLAN support, IGMP snooping, port mirroring, store and forward, Broadcast Storm Control, full duplex mode, QoS, fanless, DHCP client, loop prevention, CoS, ToS, DSCP support, cable test, Link Aggregation, rate limit, DoS protection, EEE, WRR, loopback detection, VLAN Tagging, port-based VLAN, port trunking, block unknown multicast, password protection, PoE scheduling, uninterrupted PoE
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3az
- Status Indicators
- Power, system, PoE, link/activity/speed, PoE max
Dimensions & Weight
- Width
- 28.6 cm
- Depth
- 10.2 cm
- Height
- 2.7 cm
- Weight
- 883 g
Miscellaneous
- Included Accessories
- Rubber feet, wall mounting kit
- MTBF
- 784,742 hours
- Compliant Standards
- CSA, VCCI, BSMI, EN55024, KC, FCC Part 15 Class B, ACMA, EN 55032
Manufacturer Warranty
- Service & Support
- Limited warranty – 5 years ¦ Limited warranty – power supply – 2 years ¦ Limited warranty – phone consulting – 90 days with product registration
Expansion / Connectivity
- Interfaces
- 15 x 1000Base-T RJ-45 PoE+ – 30 W ¦ 1 x 1000Base-X SFP
Power
- Power Device
- External power adapter
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 90% (non-condensing)
- Min Storage Temperature
- -20 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 95% (non-condensing)
