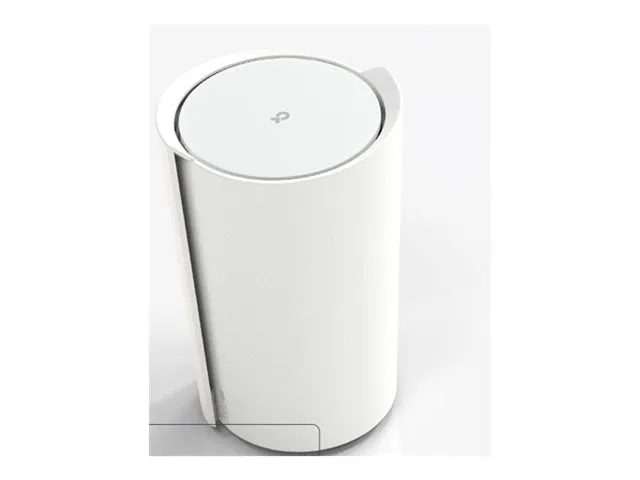

TieDex UK TP-Link DECO X73-DSL V1 – wireless router – DSL modem – Wi-Fi 6 – desktop
TP-Link DECO X73-DSL V1 – Wireless router – DSL modem 4-port switch – 1GbE – WAN ports: 4 – Wi-Fi 6 – Dual Band
Basic Specifications
- Manufacturer’s Part Number
- DECO X73-DSL(1-PACK)
- EAN
- 6935364072889
- Product Description
- TP-Link DECO X73-DSL V1 – wireless router – DSL modem – Wi-Fi 6 – desktop
- Model
- TP-Link DECO X73-DSL V1
- Dimensions (WxDxH)
- 13 cm x 12.3 cm x 21.05 cm
- Features
- Auto-sensing per device, IGMP snooping, SPI, IPS, parental control, Access Point operational mode, firmware upgradable, DDos attack prevention, Mesh networking, QoS, DHCP server, port forwarding, reset button, dynamic IP mode, DHCP client, IGMP proxy, VoIP support, MU-MIMO technology, beamforming technology, dual band, router mode, seamless roaming, VLAN Tagging, bridge mode, IPTV support, BSS Coloring, Guest Network, TP-Link HomeShield, DSL mode
- Power
- AC 100-240 V (50/60 Hz) 0.8 A
- Device Type
- Wireless router – DSL modem – 4-port switch (integrated)
- Compliant Standards
- IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, UPnP, IEEE 802.11ac, IEEE 802.11ax, Wi-Fi CERTIFIED 6
- Capacity
- Connected devices: 200 ¦ Streams: 4
- Performance
- Maximum throughput (5 GHz): 4804 Mbps ¦ Maximum throughput (2.4 GHz): 574 Mbps
- Frequency Band
- 2.4 GHz / 5 GHz
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6)
- Enclosure Type
- Desktop
- Routing Protocol
- IGMP, static IP routing
- Network / Transport Protocol
- PPTP, L2TP, PPPoE, PPPoA, IPoA, DHCP, DDNS, IPv4, IPv6
- WAN Ports Qty
- 4
- Intelligent Assistant
- Alexa – indirect
- Remote Management Protocol
- DHCP
- Digital Signaling Protocol
- ADSL, ADSL2, ADSL2+, VDSL2
General
- Device Type
- Wireless router – 4-port switch (integrated)
- Enclosure Type
- Desktop
- Connectivity Technology
- Wireless, wired
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6)
- Frequency Band
- 2.4 GHz / 5 GHz
- Performance
- Maximum throughput (5 GHz): 4804 Mbps ¦ Maximum throughput (2.4 GHz): 574 Mbps
- Capacity
- Connected devices: 200 ¦ Streams: 4
- Network / Transport Protocol
- PPTP, L2TP, PPPoE, PPPoA, IPoA, DHCP, DDNS, IPv4, IPv6
- Routing Protocol
- IGMP, static IP routing
- Remote Management Protocol
- DHCP
- Encryption Algorithm
- WPA3-Personal, WPA2-Personal, WPA-Personal
- Wi-Fi Rating
- AX5400
- Features
- Auto-sensing per device, IGMP snooping, SPI, IPS, parental control, Access Point operational mode, firmware upgradable, DDos attack prevention, Mesh networking, QoS, DHCP server, port forwarding, reset button, dynamic IP mode, DHCP client, IGMP proxy, VoIP support, MU-MIMO technology, beamforming technology, dual band, router mode, seamless roaming, VLAN Tagging, bridge mode, IPTV support, BSS Coloring, Guest Network, TP-Link HomeShield, DSL mode
- Compliant Standards
- IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, UPnP, IEEE 802.11ac, IEEE 802.11ax, Wi-Fi CERTIFIED 6, RoHS, RCM
- Processor
- 1 GHz
Communications
- Type
- DSL modem
- Digital Signaling Protocol
- ADSL, ADSL2, ADSL2+, VDSL2
Dimensions & Weight
- Width
- 13 cm
- Depth
- 12.3 cm
- Height
- 21.05 cm
Miscellaneous
- Included Accessories
- ADSL splitter
- Cables Included
- 1 x RJ-45 cable ¦ 2 x RJ-11 cable
Expansion / Connectivity
- Interfaces
- WAN / LAN: 4 x 10Base-T/100Base-TX/1000Base-T – RJ-45 ¦ WAN: 1 x VDSL2 / ADSL2+ – RJ-11 ¦ Phone line: 2 x FXS – RJ-11 ¦ USB 3.0: 1 x
Power
- Power Device
- External power adapter
- Voltage Required
- AC 100-240 V (50/60 Hz)
- Electric Current Required
- 0.8 A
- Power Consumption Operational
- 28 Watt
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 10 – 90% RH
Aerial
- Aerial
- Internal
- Antenna Qty
- 4
Internet of Things (IoT)
- Internet of Things (IoT) Compatible
- Yes
- Intelligent Assistant
- Alexa
- Voice Controlled
- Indirect
Line Properties
- Line Coding Format
- 1024 QAM, OFDMA
