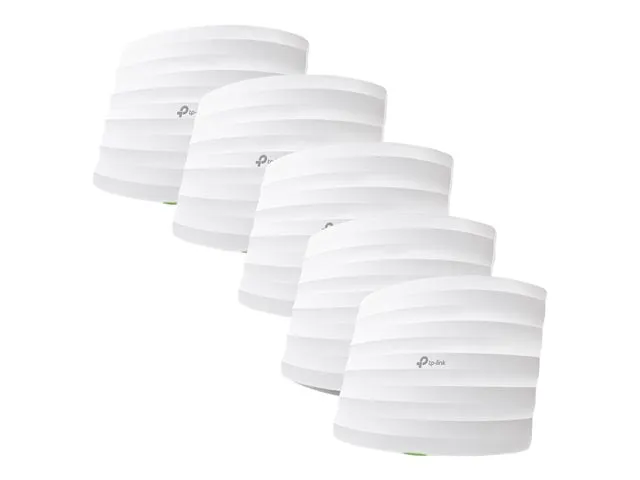

TieDex UK TP-Link Omada EAP245 V3 – radio access point – Wi-Fi 5 – cloud-managed
TP-Link Omada EAP245 V3 – Radio access point – 2 ports – Wi-Fi 5 – 2.4 GHz, 5 GHz – cloud-managed – wall / ceiling mountable (pack of 5)
Basic Specifications
- Manufacturer’s Part Number
- EAP245(5-pack)
- EAN
- 4897098687024
- Product Description
- TP-Link Omada EAP245 V3 – radio access point – Wi-Fi 5 – cloud-managed
- Model
- TP-Link Omada EAP245 V3
- Dimensions (WxDxH)
- 20.55 cm x 18.15 cm x 3.71 cm
- Device Type
- Radio access point
- Form Factor
- Wall / ceiling mountable
- Performance
- Maximum throughput (2.4 GHz): 450 Mbps ¦ Maximum throughput (5 GHz): 1300 Mbps
- Frequency Band
- 2.4 GHz, 5 GHz
- Data Link Protocol
- IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
- OS Required
- Linux, Microsoft Windows XP / Vista / 7 / 8 / 10
- Power Over Ethernet (PoE) Supported
- PoE
- Included Accessories
- Wall/ceiling mounting kit
- Packaged Quantity
- 5 (specifications are for single item)
- Ports Qty
- 2
General
- Packaged Quantity
- 5 (specifications are for single item)
- Device Type
- Radio access point
- Width
- 20.55 cm
- Depth
- 18.15 cm
- Height
- 3.71 cm
Miscellaneous
- Included Accessories
- Wall/ceiling mounting kit
- Compliant Standards
- FCC, RoHS
Networking
- Form Factor
- Wall / ceiling mountable
- Ports Qty
- 2
- Connectivity Technology
- Wireless
- Data Link Protocol
- IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
- Network / Transport Protocol
- HTTP, HTTPs
- Remote Management Protocol
- SNMP 1, SNMP 2c, HTTP, HTTPS, SSH
- Cloud-Managed
- Yes
- Frequency Band
- 2.4 GHz, 5 GHz
- Performance
- Maximum throughput (2.4 GHz): 450 Mbps ¦ Maximum throughput (5 GHz): 1300 Mbps
- Wi-Fi Rating
- AC1750
- Features
- Syslog support, E-mail alert, MAC address filtering, Wi-Fi Multimedia (WMM) support, rogue access point detection, Captive Portal, security lock slot (cable lock sold separately), 802.1x authentication, Transmit Power Control (TPC), MU-MIMO technology, beamforming technology, band steering, SSID to VLAN mapping, rate limit, Wireless Scheduler, seamless roaming, Airtime Fairness, Zero-touch provisioning (ZTP), schedule reboot, load balance network mode, Omada Mesh technology, secure guest network
- Encryption Algorithm
- 128-bit WEP, 64-bit WEP, 152-bit WEP, WPA, WPA-PSK, WPA2-PSK, WPA2-Enterprise
- Authentication Method
- Secure Shell (SSH)
- Compliant Standards
- IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, IEEE 802.11k, IEEE 802.3at, IEEE 802.11ac, IEEE 802.11v
Expansion / Connectivity
- Interfaces
- 1 x 1000Base-T (PoE) – RJ-45 ¦ 1 x 1000Base-T – RJ-45
Power
- Power Over Ethernet (PoE) Supported
- PoE
- Power Consumption Operational
- 12.3 Watt
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 10 – 90% (non-condensing)
Software / System Requirements
- OS Required
- Linux, Microsoft Windows XP / Vista / 7 / 8 / 10
Aerial
- Antenna
- Internal
- Directivity
- Omni-directional
