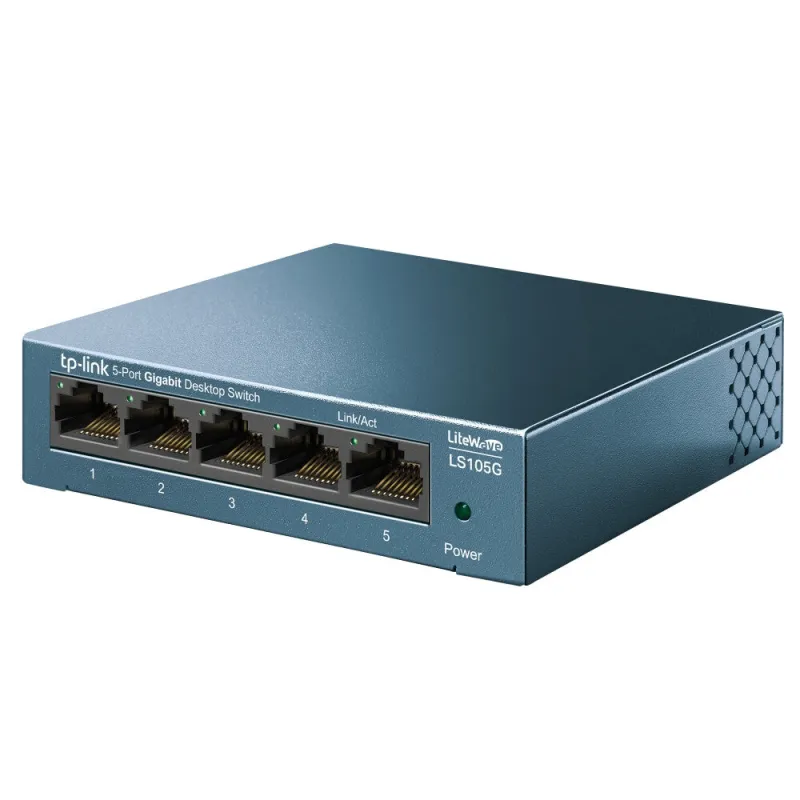

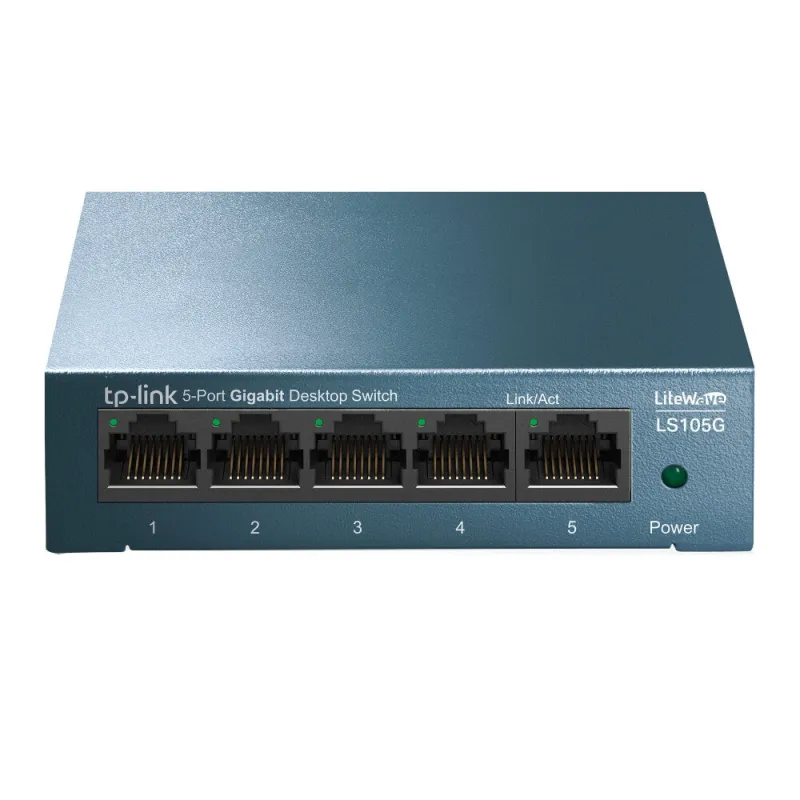

TP-Link 5-Port 10/100/1000Mbps Desktop Network Switch
- 10/100/1000Mbos Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX
- Green Ethernet technology saves power
- IEEE 802.3X flow control provides reliable data transfer
- Steel housing, desktop or wall-mounting design
- Support 802.1p/DSCP QoS function
- Plug and play, no configuration needed
Increase Your Network Speed and Save Energy
Let LiteWave Bring You Lighter Network Life
The TP-Link LiteWave Series Unmanaged Switches provide easy and affordable way to expand your wired network. They are easy to use and reliable. With these plug-and-play switches, you can expand your network connections to multiple devices instantly. With all ports support Auto-MDI/MDIX, there’s no need to worry about the type of cable to use.

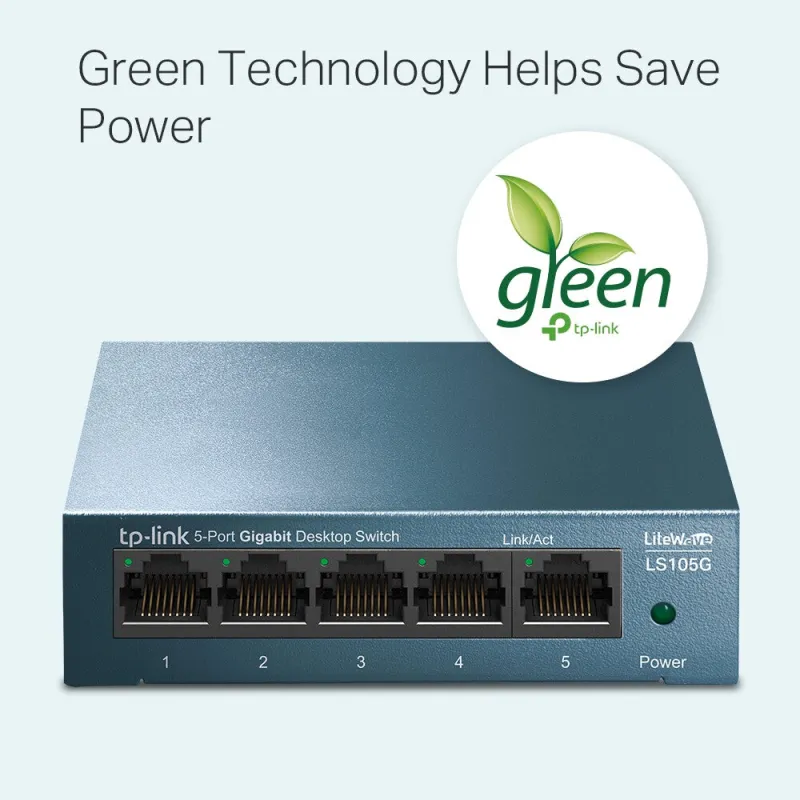

Go Green with Your Ethernet
The LiteWave Series also supports energy-efficient technology, helping you save power and money. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it’s a win-win!
Durable Metal Casing
The interior components of LS105G are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, LS105G delivers switching performance you can depend on. Its compact size makes it ideal for deployment on desktops or work benches.
Use Where You Need, However You Need
The LS105G is fully compatible with networked devices such as computers, printers, webcams, IPTVs. It has a wide range of application scenarios and is suitable for networking in school dormitories, surveillance, homes, and small businesses.
| Management features | |
|---|---|
| Quality of Service (QoS) support | Yes |
| Switch type | Unmanaged |
| Ports & interfaces | |
|---|---|
| Power connector | DC-in jack |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Network | |
|---|---|
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| 10G support | No |
| Networking standards | IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Data transmission | |
|---|---|
| Packet buffer memory | 1 MB |
| Jumbo frames | 16000 |
| Jumbo frames support | Yes |
| Forwarding rate | 7.4 Mpps |
| Switching capacity | 10 Gbit/s |
| MAC address table | 2000 entries |
| Design | |
|---|---|
| Wall mountable | Yes |
| LED indicators | Activity, LAN, Power |
| Housing material | Metal |
| Product colour | Blue |
| Rack mounting | No |
| Power | |
|---|---|
| Power consumption (max) | 2.776 W |
| Input voltage | 5 V |
| Input current | 0.6 A |
| Power supply included | Yes |
| Power source | DC |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | No |
| Operational conditions | |
|---|---|
| Heat dissipation | 9.466 BTU/h |
| Storage relative humidity (H-H) | 5 – 90% |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating temperature (T-T) | 0 – 40 °C |
| Weight & dimensions | |
|---|---|
| Height | 25 mm |
| Depth | 98 mm |
| Width | 99.8 mm |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Packaging data | |
|---|---|
| Package weight | 290 g |
| Package height | 92 mm |
| Package depth | 128 mm |
| Package width | 125 mm |
| Certificates | |
|---|---|
| Certification | CE, FCC, RoHS |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
