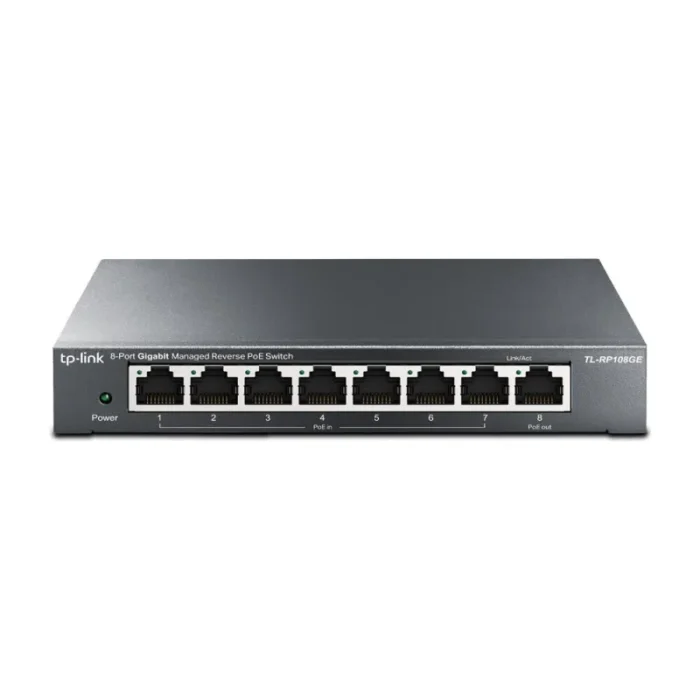

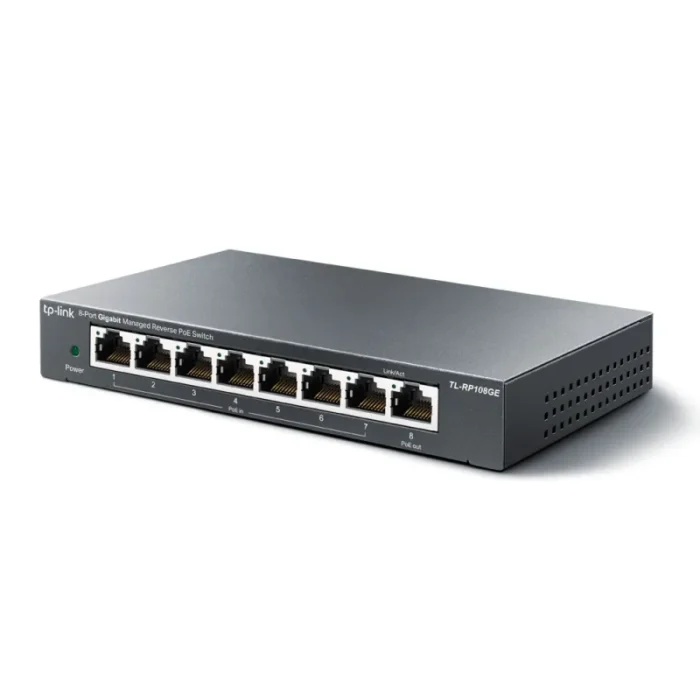

TP-Link 8-Port Gigabit Managed Reverse PoE Switch
- 7 PoE input and 1 PoE output 10/100/1000 Mbps RJ45 Ports

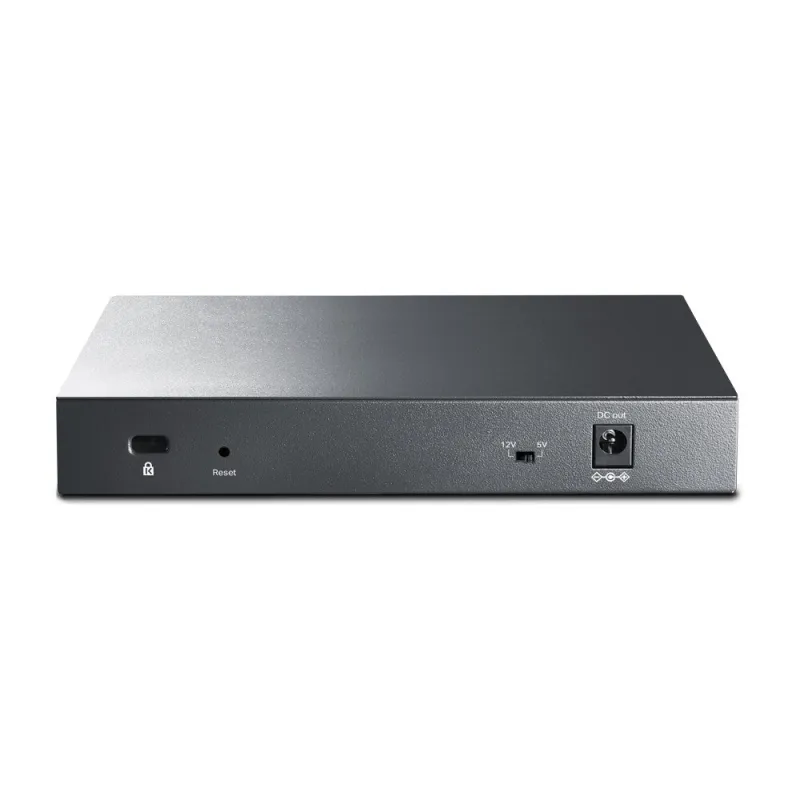

- 1 DC output port that supports both 5V and 12 V voltage switching
- Durable metal casing of superior quality and professional appearance
- Intelligent management via a web user interface and downloadable utility
- Green technology reduces power consumption
What This Product Does
The Passive PoE switch TL-RP108GE has seven gigabit PoE input ports that allow it to receive power from user outlets via PoE injectors. Equipped with one PoE output port, the switch can supply power to CPEs and similar devices via Port 8. The DC output port supports both 5 V and 12 V optional output voltage and can be used to power devices like ONTs. With data switching and PoE integrated into a single unit, TL-RP108GE saves space, minimizes cabling, and eliminates the need for dedicated electrical outlets—lowering deployment costs and simplifying installation for PoE-capable devices.
| Management features |
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L2 |
| Switch type |
Managed |
| Ports & interfaces |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Network |
| Number of VLANs |
4000 |
| Virtual LAN features |
Port-based VLAN, Tagged VLAN |
| VLAN support |
Yes |
| Rate limiting |
Yes |
| Broadcast storm control |
Yes |
| Half duplex |
Yes |
| Full duplex |
Yes |
| Port mirroring |
Yes |
| 10G support |
No |
| Networking standards |
IEEE 802.3ab, IEEE 802.3i, IEEE 802.3p, IEEE 802.3q, IEEE 802.3u, IEEE 802.3x |
| Data transmission |
| Jumbo frames |
16000 |
| Jumbo frames support |
Yes |
| Static route |
Yes |
| Store-and-forward |
Yes |
| Forwarding rate |
11.9 Mpps |
| Switching capacity |
16 Gbit/s |
| MAC address table |
4000 entries |
| Security |
| Loop protection |
Yes |
| IGMP snooping |
Yes |
| Design |
| LED indicators |
Yes |
| Reset button |
Yes |
| Product colour |
Black |
| Power |
| Input voltage |
5 V |
| Input current |
1 A |
| Power supply included |
No |
| Power source |
DC |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) ports quantity |
8 |
| Power over Ethernet (PoE) type supported |
Passive PoE |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
| Storage relative humidity (H-H) |
5 – 90% |
| Operating relative humidity (H-H) |
10 – 90% |
| Storage temperature (T-T) |
-40 – 70 °C |
| Operating temperature (T-T) |
0 – 40 °C |
| Weight & dimensions |
| Height |
25 mm |
| Depth |
99.1 mm |
| Width |
158 mm |
| Certificates |
| Certification |
FCC, CE, RoHS |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
