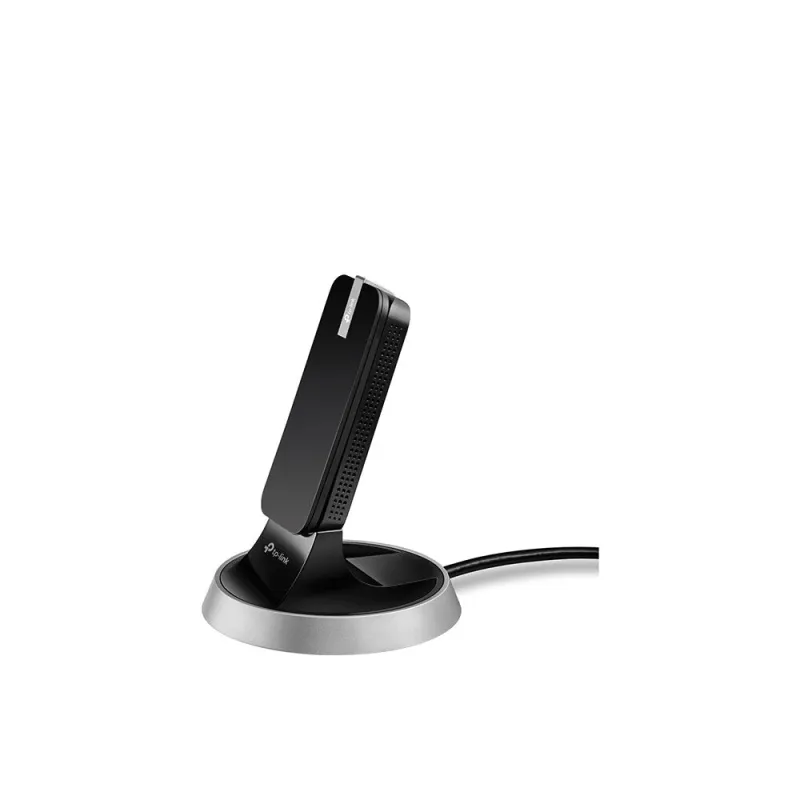

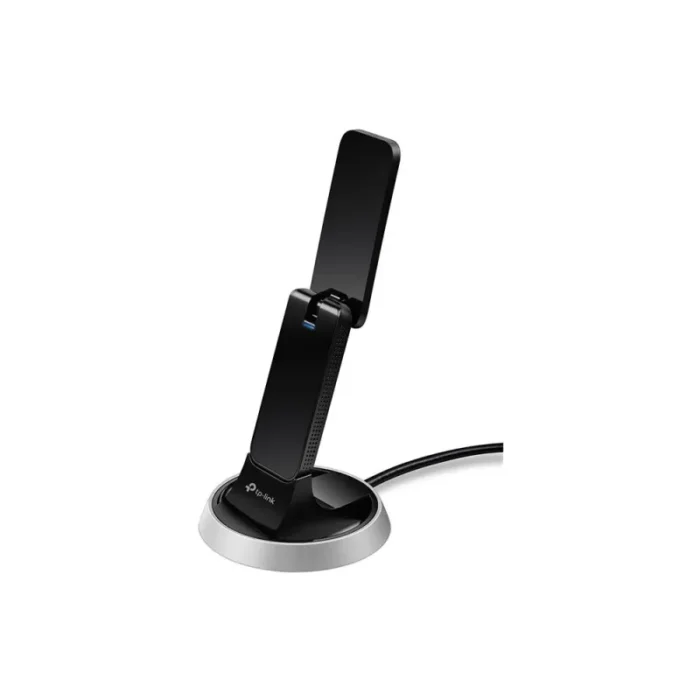

TP-Link Archer T9UH WLAN 1300 Mbit/s
- Ultimate Wi-Fi Speed– AC1900 (600Mpbs on 2.4GHz band or 1300Mbps on 5GHz band) wireless speed with the next generation Wi-Fi – 802.11ac*
- Dual Band Wireless– 2.4GHz and 5GHz band for flexible connectivity
- Ultimate Range – High gain antennas ensure superior range and stability
- Beamforming Technology – Delivers a more targeted and highly efficient wireless connections
- Super Speed USB 3.0 Port – Up to 10x faster than USB 2.0
- Flexible Deployment – Equipped with a USB 3.0 Cradle for flexible deployment
- WPS Button – Easy wireless security encryption at a push of the WPS button
- Backward Compatibility – With support for 802.11 a/b/g/n standards
Faster Connections with AC1900 Speed
The Archer T9UH lets your PC or laptop take full advantage of the high-speed Wi-Fi created by AC1900 dual band routers. Enjoy connections 3x faster than Wireless N with Wireless AC technology.
Do More with Dual Band Wi-Fi
The Archer T9UH supports dual band Wi-Fi—use the 5GHz band for lag-free gaming and HD streaming, and the 2.4GHz band for video calls and shopping online.
Stronger Coverage with High-Gain Antennas
With four high-gain antennas, the Archer T9UH creates a stable Wi-Fi connection across your home, even when your router is on a different floor.
Beamforming for Efficient Wi-Fi
The Archer T9UH supports beamforming, helping create stronger connections with beamforming-capable routers for higher speeds across greater distances.
Easy Use with a Flexible Design

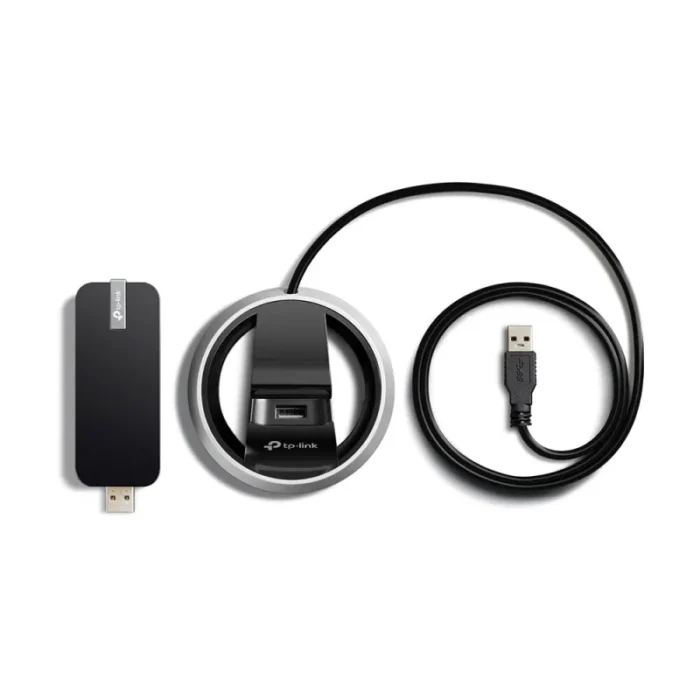

A 3ft. USB 3.0 cable makes it easy to find a spot for the Archer T9UH in your workspace, and the adapter can be effortlessly attached removed from your computer as needed.
Universal Fit with Cross-Platform Compatibility
The Archer T9UH works with a number of operating systems, including Windows XP/7/8/8.1/10, OS X (10.7–10.10), and Linux, making it the perfect choice for nearly all laptops and PCs.
| Ports & interfaces | |
|---|---|
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| USB ports quantity | 1 |
| Interface | WLAN |
| Host interface | USB |
| Connectivity technology | Wireless |
| Network | |
|---|---|
| Security algorithms | 64-bit WEP, 128-bit WEP, 802.1x RADIUS, WPA-PSK, WPA2-PSK |
| Modulation | 16-QAM, 64-QAM, 256-QAM, BPSK, CCK, DBPSK, DQPSK, QPSK |
| WLAN data transfer rates supported | 11,54,450,600,1300 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Frequency range | 2.4 – 5 GHz |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Wi-Fi | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Maximum data transfer rate | 1300 Mbit/s |
| Design | |
|---|---|
| Operating modes | Infrastructure mode |
| LED indicators | Yes |
| WPS push button | Yes |
| Transmitting power (FCC) | 20 dBm |
| Transmitting power (CE) | 20 dBm |
| Antenna direction type | Omni-directional |
| Antenna | Yes |
| Antenna design | Internal |
| Product colour | Black |
| Component for | PC/Laptop |
| Internal | No |
| Power | |
|---|---|
| USB powered | Yes |
| System requirements | |
|---|---|
| Linux operating systems supported | Yes |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 – 90% |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating temperature (T-T) | 0 – 40 °C |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
| Weight & dimensions | |
|---|---|
| Height | 14.3 mm |
| Depth | 36.6 mm |
| Width | 100.5 mm |
| Packaging data | |
|---|---|
| Package weight | 420 g |
| Package height | 85 mm |
| Package depth | 148 mm |
| Package width | 207 mm |
| Packaging content | |
|---|---|
| Quick installation guide | Yes |
| Resource CD | Yes |
| Technical details | |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
