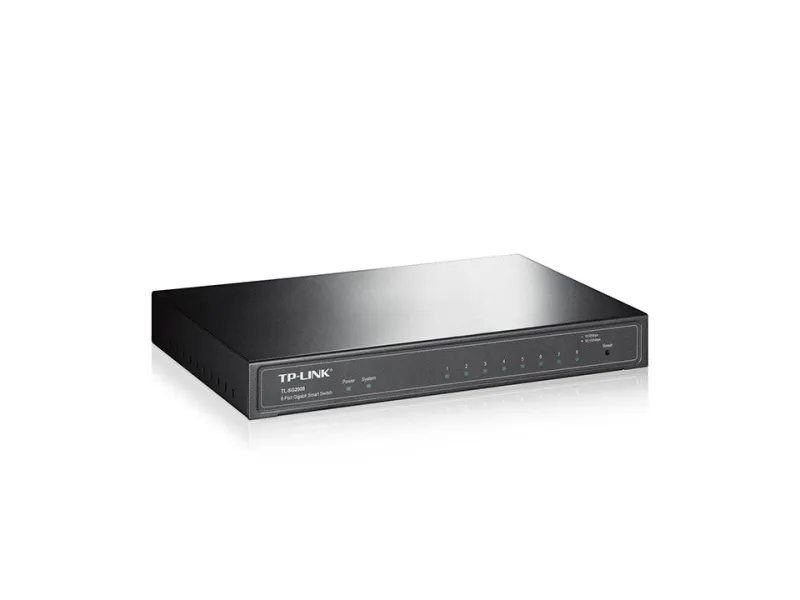

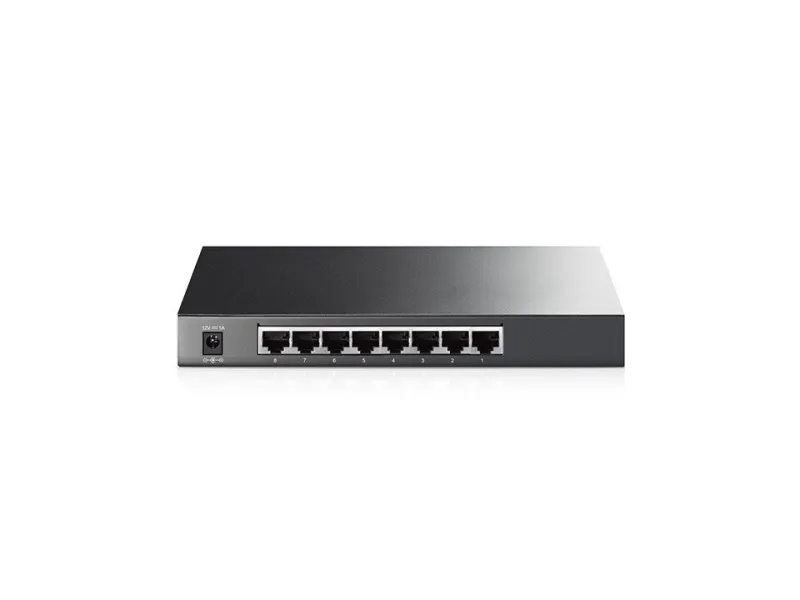

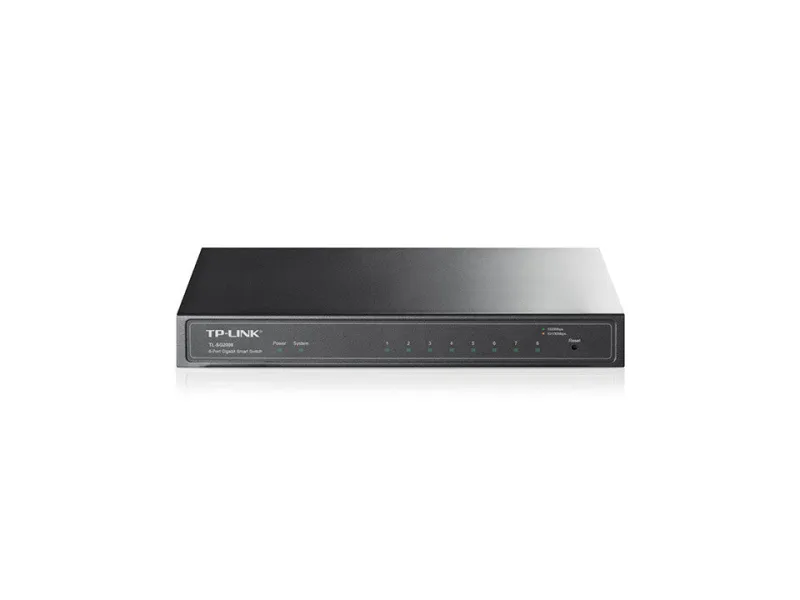

TP-Link JetStream 8-Port Gigabit Smart Switch
- Full Gigabit Ports: 8× gigabit RJ45 ports provide high-speed connections
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*, Centralized Cloud Management, and Intelligent Monitoring
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management
- Robust Security Strategies: 802.1Q VLAN, ACL, Port Security, Storm Control, and more
- Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping
- Versatile Management: WEB/CLI managed modes, SNMP, and RMON bring abundant management features
Realize More Possibilities with Omada
JetStream 8-Port Gigabit Smart Switch
Software Defined Networking (SDN) with Cloud Access
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
| Management features |
| MIB support |
Y |
| System event log |
Yes |
| ARP inspection |
Yes |
| Web-based management |
Yes |
| Cloud-managed |
Yes |
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L2/L2+ |
| Switch type |
Managed |
| Ports & interfaces |
| Power connector |
DC-in jack |
| Gigabit Ethernet (copper) ports quantity |
8 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Network |
| Number of VLANs |
4000 |
| Virtual LAN features |
MAC address-based VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| VLAN support |
Yes |
| Link aggregation |
Yes |
| Flow control support |
Yes |
| Rate limiting |
Yes |
| Broadcast storm control |
Yes |
| Spanning tree protocol |
Yes |
| Port mirroring |
Yes |
| Cable types supported |
Cat3, Cat4, Cat5, Cat5e |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX, 1000BASE-T |
| 10G support |
No |
| Networking standards |
IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Data transmission |
| Jumbo frames |
9000 |
| Jumbo frames support |
Yes |
| Number of IP interfaces |
16 |
| Number of static routes |
32 |
| Static route |
Yes |
| Store-and-forward |
Yes |
| Forwarding rate |
11.9 Mpps |
| Switching capacity |
16 Gbit/s |
| MAC address table |
8000 entries |
| Security |
| Security algorithms |
SSH, SSH-2, SSL/TLS |
| SSH/SSL support |
Yes |
| BPDU filtering/protection |
Yes |
| IP-MAC-Port binding |
Yes |
| IGMP snooping |
Yes |
| Access Control List (ACL) |
Yes |
| DHCP features |
DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping |
| Multicast features |
| Multicast support |
Yes |
| Protocols |
| GARP VLAN Registration Protocol (GVRP) |
Yes |
| Management protocols |
SNMPv1/v2c/v3, SNTP |
| Design |
| Wall mountable |
Yes |
| LED indicators |
Yes |
| Product colour |
Black |
| Performance |
| Fanless |
Yes |
| Flash memory |
32 MB |
| Internal memory |
256 MB |
| Power |
| Power consumption (max) |
6.42 W |
| Input voltage |
12 V |
| Input current |
1 A |
| Power supply included |
Yes |
| Power source |
DC |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
No |
| Operational conditions |
| Storage relative humidity (H-H) |
5 – 90% |
| Operating relative humidity (H-H) |
10 – 90% |
| Storage temperature (T-T) |
-40 – 70 °C |
| Operating temperature (T-T) |
0 – 40 °C |
| Weight & dimensions |
| Height |
26 mm |
| Depth |
126 mm |
| Width |
209 mm |
| Packaging content |
| User guide |
Yes |
| Cables included |
AC |
| General |
| Product family |
JetStream |
| Certificates |
| Certification |
CE, FCC, RoHS |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
