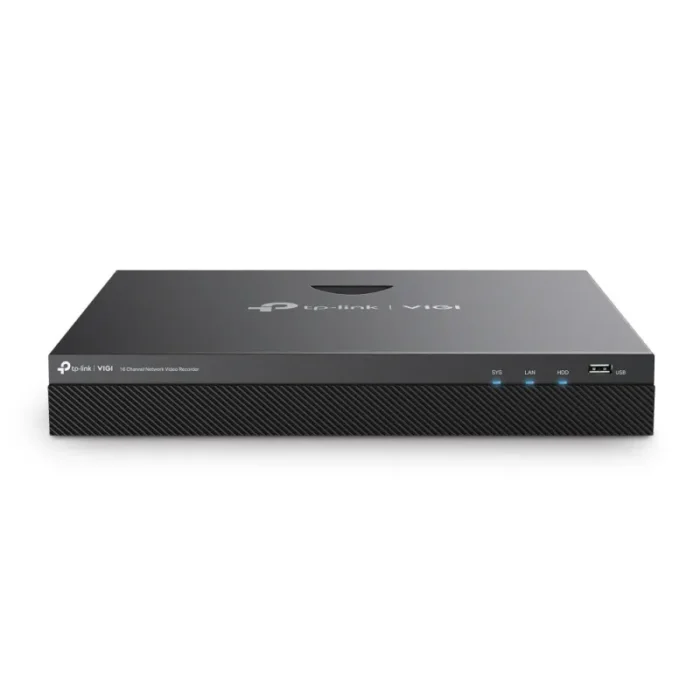

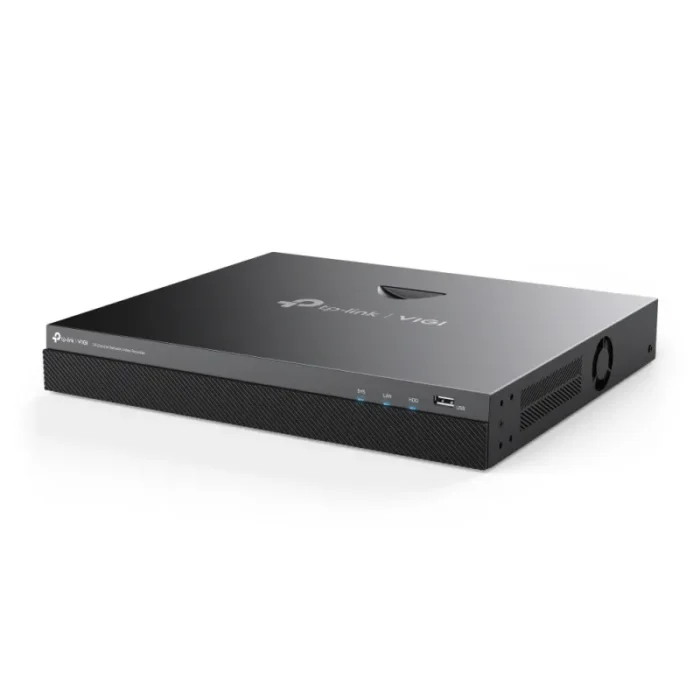

TP-Link VIGI NVR2016H network video recorder Black
- Video input channels: 16 channels
- 3840 x 2160 pixels
- Input bandwidth: 80 Mbit/s Output bandwidth: 60 Mbit/s
- Maximum storage capacity: 10 TB HDD interface: SATA
- Ethernet LAN (RJ-45) ports: 1
- 24.16 W
- Black
Security Never Shuts Down
Every Angle All on One Screen
4K HDMI Video Output & 16MP Decoding Capacity
Sharp image definition up to 8MP (4K) ensures you capture every detail. 8-ch@2MP decoding capacity allows you to enjoy more-channels live view and playback at the same time.†
Reviewing Footage is Faster than Ever
16-Channel Simultaneous Playback*
Replay the feed from up to 16 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
More Compression. More Savings. More Quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
No Need to Check Long Compatibility Lists
ONVIF Ensures Compatibility
Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility. △
Plug & Play.
Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.
Security for Every Hour and Every Day
27/4 Continuous Recording
Automatically and continuously stores up to 20 TB of footage from connected cameras to secure your data for quick and convenient access.
Two-Way Audio
With voice intercom support, scare off any potential thieves or intruders from wherever you are.
Remote Management
Take full control over your security anytime and anywhere on the VIGI app or client.
Live Views and Real-Time Alerts
Easily check your business security via 24/7 live views. Get notifications as soon as the cameras detect something abnormal.
Easy & Smart Playback
Quickly review and locate certain video clips by event, vehicle, person, time, and more. This will greatly improve event backtracking efficiency and reduce labor costs.
Customized Monitoring Patterns
Based on your monitoring needs, you can freely preset motion zones, adjust the rotation angle, set zoom in & out, customize patrol routes, control patrol routes, and more.
Four-Way Management
Flexibly manage your cameras via the web UI, NVR UI, VIGI app, and VIGI Security Manager for ease and convenience.
One system. Full security.
Run your business with peace of mind.
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.
| Performance | |
|---|---|
| Recording modes | Manual, Schedule |
| Playback controls | Yes |
| Maximum frame rate | 30 fps |
| Input bandwidth | 80 Mbit/s |
| Output bandwidth | 60 Mbit/s |
| Playback modes | Digital zoom, Fast play, Forward, Full screen, Pause, Play, Stop |
| Video formats supported | H.264, H.264+, H.265, H.265+ |
| Audio formats supported | G.711 A-law, G.711 μ-law, G.726 |
| Video motion detection | Yes |
| Maximum resolution | 3840 x 2160 pixels |
| Supported resolutions | HDMI Output Resolution: 1 Channel, Resolution: 1280×720/60Hz, 1280×1024/60Hz, 1440×900/60Hz, 1680×1050/60Hz, 1920×1080/60Hz, 3840×2160/30HzVGA Output Resolution: 1 Channel, Resolution: 1280×720/60Hz, 1280×1024/60Hz, 1440×900/60Hz, 1680×1050/60Hz, 1920×1080/60Hz |
| Video recording modes | 720p, 1080p |
| Number of simultaneously playbacked channels | 16 channels |
| Video input channels | 16 channels |
| Wireless LAN features | |
|---|---|
| Wi-Fi | No |
| Hard drive | |
|---|---|
| HDD interface | SATA |
| Maximum storage capacity | 10 TB |
| Number of HDDs supported | 2 |
| HDD capacity | 0 GB |

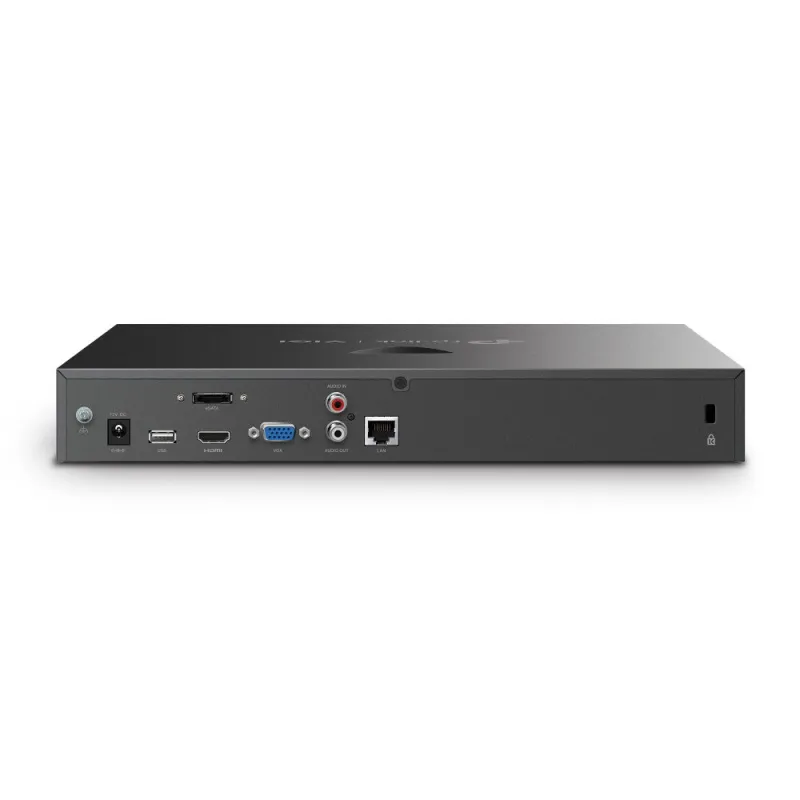

| Ports & interfaces | |
|---|---|
| Supported network protocols | UPnP (Plug and Play), NTP (Network Timing) |
| DC-in jack | Yes |
| eSATA | Yes |
| Line-in | Yes |
| Audio output | 1 |
| Internal SATA ports quantity | 2 |
| eSATA ports quantity | 1 |
| VGA (D-Sub) output ports | 1 |
| USB 2.0 ports quantity | 2 |
| HDMI ports quantity | 1 |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Features | |
|---|---|
| Certification | CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI |
| Reset button | Yes |
| Product colour | Black |
| Power | |
|---|---|
| Output current | 3.3 A |
| Output voltage | 12 V |
| Power consumption (max) | 24.16 W |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 10 – 90% |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Operating temperature (T-T) | -10 – 55 °C |
| General | |
|---|---|
| Product family | VIGI |
| Weight & dimensions | |
|---|---|
| Package weight | 3.2 kg |
| Weight | 1.9 kg |
| Height | 45 mm |
| Depth | 285 mm |
| Width | 330 mm |
