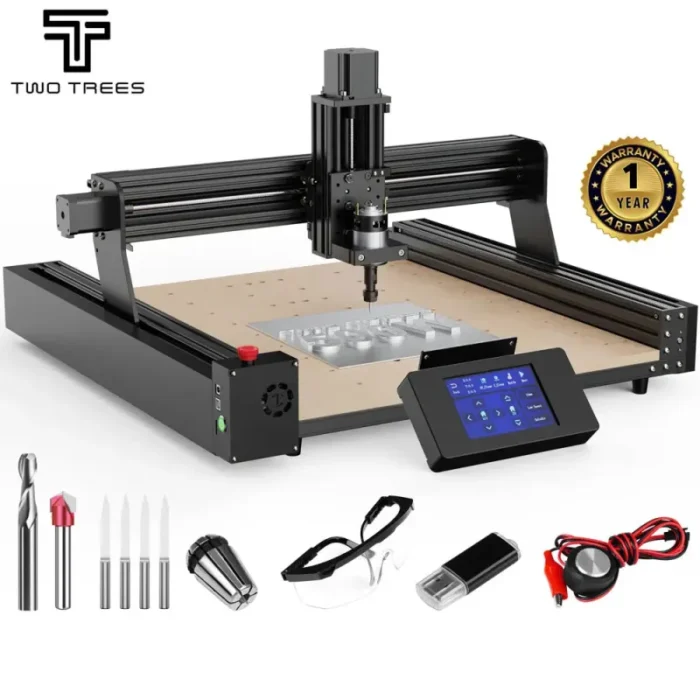

TwoTrees TTC450 Rotary 4th Axis CNC Wood Engraving Machine Laser Engraver Cnc Router For MDF PVC Epoxy Metal Carving Cutting
Enhance your woodworking and metalworking projects with the TwoTrees TTC450 Rotary 4th Axis CNC Machine. With laser engraving capabilities and precision cutting for MDF, PVC, and epoxy, achieve professional results with ease. Increase your productivity and creativity with this versatile tool.
SPECIFICATIONS
- Model Number: TTC450
- CNC or Not: CNC
- Controller: GRBL
- Condition: New
- Certification: CE
- Brand: TwoTrees
- Model: TTC450
- Machine Material: 4080 aluminium profile + sheet metal
- Engraving materials: Engraving and cutting MDF, PVC, acrylic, solid wood, particle board, plywood, organic board, epoxy resin, nylon, PCB, aluminium, copper, carbon fibre board, etc.
Uses
- For 1: CNC Milling Machine
- For 2: Laser Engraver
- For 3: CNC Router
- For 4: Wood Metal Carving Cutting
- For 5: Rotary 4th Axis
TwoTrees TTC450 Rotary 4th Axis CNC Wood Engraving Machine Laser Engraver Cnc Router For MDF PVC Epoxy Metal Carving Cutting
The motherboard adopts an ESP32 highly integrated chip with low power consumption, high stability and reliability, ultra-high processing speed and large memory, supports offline controllers, supports four axes, and supports PWM laser signals.
- Brand： TWO TREES
- Model： TTC-450

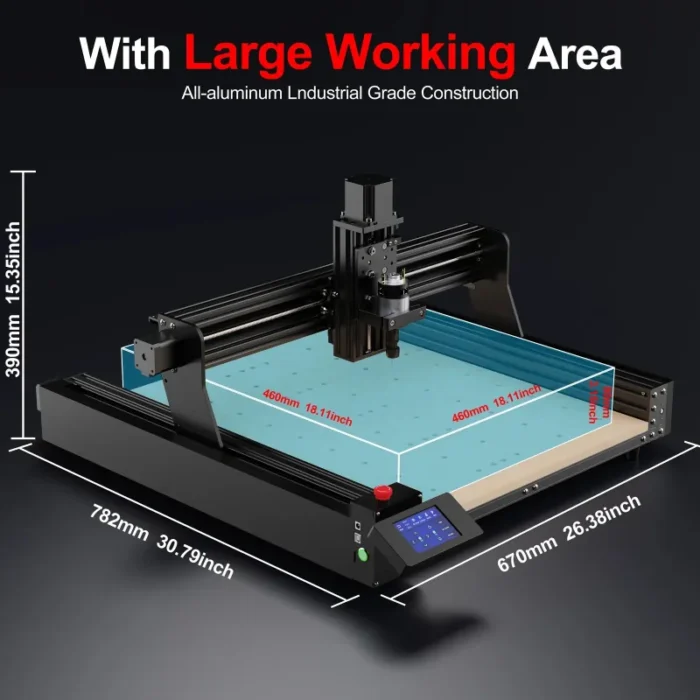

- Engraving area: 460mmX460mmX80mm
- Power adapter power：120W, 5A, 24V
- Spindle parameters ： 24V 5A, 775 motor 8000RPM
- Tool setting： Software Control/manual / Tool setting instrument.
- Control Board Compatibility： GRBL
- Engraving speed MAX: MAX800mm/min
- Limit switch: X, Y, Z three-axis double limit + ESTOP
- Engraving accuracy: 0.01mm
- Stepper driver: A4988 1.3A (other drivers can be connected to the motherboard)
- Linear transmission mode: Built-in POM wheel
- Stepping motor NEMA 23 (2 phases, 1.5A) torque 20mN. m
- Transmission type： T8 screw pitch 2mm lead 4mm screw / Y-axis Double Y-axis with built-in rollers
- Emergency stop switch Yes
- Harness management: XY energy chain
- Machine weight kg: 19.2kg
- Shipping weight kg: 20kg
- CAM software
- control: Candle
- Programming: CarvecoMaker, Artcam, Easel
- Operating system: Windows XP/7/8/10, MAC OS
- Engraving materials: Engraving and cutting MDF, PVC, acrylic, solid wood, particle board, plywood, organic board, epoxy resin, nylon, PCB, aluminium, copper, carbon fibre board, etc.
