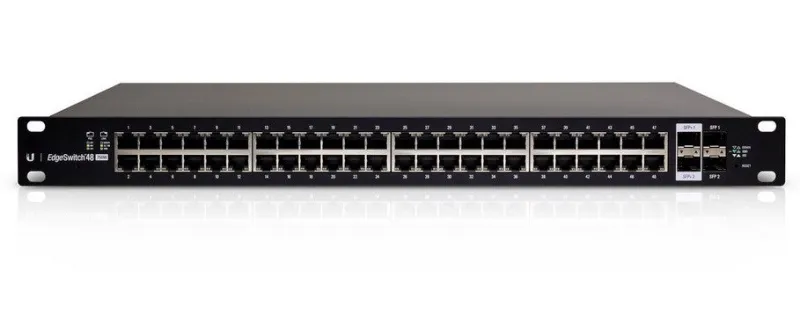

Ubiquiti ES-48-500W network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

• Managed L2/L3 Web-based management SNMP v1, v2, v3
• Quality of Service (QoS) support
• Basic switching RJ-45 Ethernet ports quantity: 48 Console port: RJ-45
• 10G support 10BASE-T, 100BASE-TX, 1000BASE-T
• MAC address table: 16384 entries Switching capacity: 140 Gbit/s
• 10 Access Control List (ACL)
• 1U Rack mounting
• Power over Ethernet (PoE)

– Non-Blocking Throughput Switching Performance
– Gigabit Ethernet RJ45 and SFP+/SFP Ports
– Auto-Sensing IEEE 802.3af/at PoE

Advanced Switching Technology for the Masses
Build and expand your network with Ubiquiti Networks® EdgeSwitch™, part of the EdgeMAX® line of products. The EdgeSwitch is a fully managed, PoE+ Gigabit switch, delivering robust performance and intelligent switching for growing networks.

The EdgeSwitch offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.

Switching Performance
The EdgeSwitch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.

For its total, non-blocking throughput, the 24-port models support up to 26 Gbps, while the 48-port models support up to 70 Gbps.

PoE+ Flexibility
The EdgeSwitch models are available with 24 or 48 PoE Gigabit Ethernet ports of auto-sensing IEEE 802.3af/at or configurable 24V Passive PoE to simplify your infrastructure.

By default, the EdgeSwitch automatically detects 802.3af/at devices so they automatically receive PoE. For 24V Passive PoE devices, manually enable 24V passive PoE using the EdgeSwitch Configuration
Interface.

Fiber Connectivity
The EdgeSwitch provides fiber connectivity options for your growing networks. The 24-port models include two SFP ports, providing up to 1 Gbps uplinks.

For high-capacity uplinks, the 48-port models include two SFP and two SFP+ ports, providing up to 10 Gbps uplinks.

Comprehensive User Interface
Designed for convenient management, the EdgeSwitch Configuration Interface allows administrators to configure and monitor switch features in a graphical user interface.

For advanced users, an industry-standard command-line interface (CLI) is available through telnet and SSH.

Powerful Functionality
The EdgeSwitch uses a sophisticated operating system that provides basic switching features, PoE configuration per port, and a variety of advanced features including:
– MSTP/RSTP/STP
– VLAN, Private VLAN, Voice VLAN
– Link Aggregation
– DHCP Snooping, IGMP Snooping
– TACACS+, RADIUS, 802.1X, MAC Filtering, ACL
– DiffServ, CoS
– Static Routing, Policy-Based Routing
