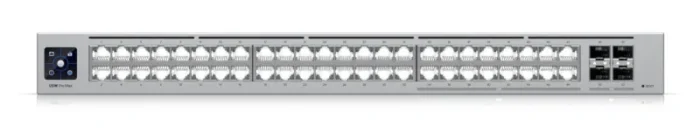

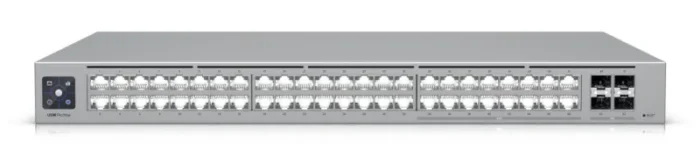

Ubiquiti Pro Max 48 L3 2.5G Ethernet (100/1000/2500) 1U Grey
- (16) 2.5 GbE RJ45 ports
- (32) GbE RJ45 ports
- (4) 10G SFP+ ports
- DC power backup ready
- Managed with UniFi Network 8.0.24 and later
A 48-port, Layer 3 Etherlighting™ switch with 2.5 GbE.
| Management features |
| Switch layer |
L3 |
| Ports & interfaces |
| Power connector |
AC/DC |
| SFP+ module slots quantity |
4 |
| 2.5G Ethernet (copper) ports quantity |
16 |
| Gigabit Ethernet (copper) ports quantity |
32 |
| Basic switching RJ-45 Ethernet ports type |
2.5G Ethernet (100/1000/2500) |
| Basic switching RJ-45 Ethernet ports quantity |
48 |
| Network |
| Virtual LAN features |
Voice VLAN |
| VLAN support |
Yes |
| Flow control support |
Yes |
| Rate limiting |
Yes |
| Broadcast storm control |
Yes |
| Port mirroring |
Yes |
| 10G support |
Yes |
| Networking standards |
IEEE 802.1x |
| Data transmission |
| Jumbo frames support |
Yes |
| Static route |
Yes |
| Forwarding rate |
166.656 Mpps |
| Switching capacity |
224 Gbit/s |
| Security |
| Loop protection |
Yes |
| IGMP snooping |
Yes |
| DHCP features |
DHCP relay, DHCP snooping |
| Design |
| Display type |
LCM |
| LED indicators |
Link, Network, Speed, Status |
| Reset button |
Yes |
| Housing material |
SGCC |
| Product colour |
Grey |
| Form factor |
1U |
| Stackable |
Yes |
| Rack mounting |
Yes |
| Power |
| Power plug type |
Type C |
| Power consumption (max) |
100 W |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 – 240 V |
| Redundant power supply (RPS) support |
Yes |
| Power supply included |
Yes |
| Power source |
AC/DC |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
No |
| Operational conditions |
| Operating relative humidity (H-H) |
10 – 90% |
| Operating temperature (T-T) |
-5 – 40 °C |
| Weight & dimensions |
| Weight |
4.8 kg |
| Height |
43.7 mm |
| Depth |
325 mm |
| Width |
442.4 mm |
| Packaging content |
| Rack mount kit |
Yes |
| Cables included |
Power |
| Sustainability |
| Sustainability compliance |
Yes |
| Certificates |
| Compliance certificates |
CE, Federal Communications Commission (FCC), Industry Canada (IC) |
