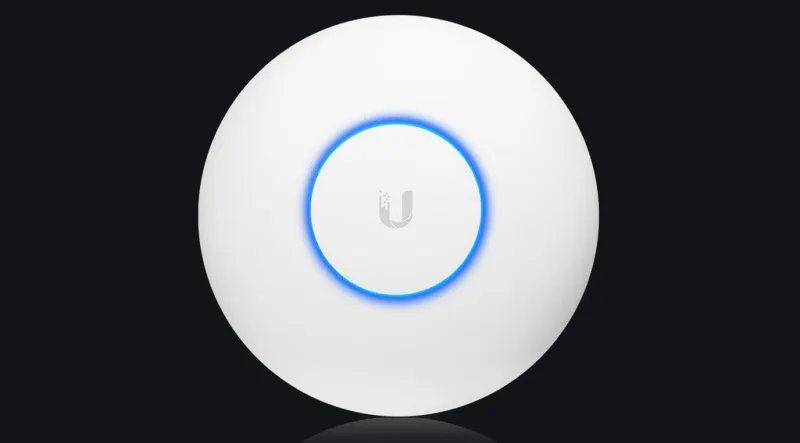

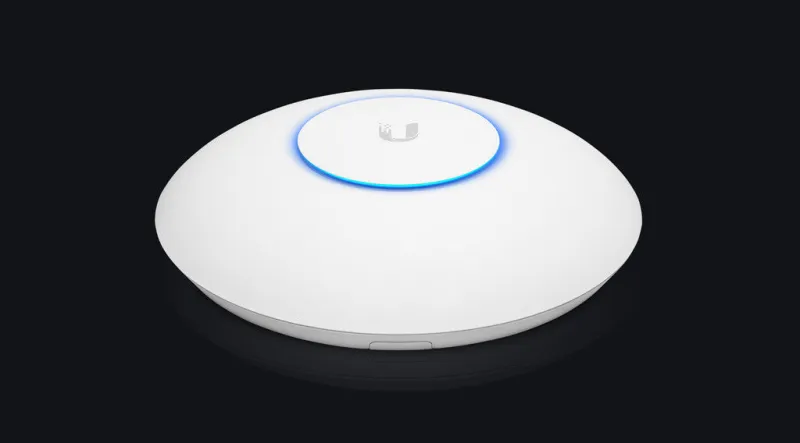

Ubiquiti UAP‑XG 1733 Mbit/s White Power over Ethernet (PoE)
- Simultaneous Tri-Band 4×4 Multi-User MIMO
- Dedicated Security Radio with Persistent Threat Management
- Real-Time Spectrum and airTime Utilization Engine
Create a Future-Proof 10 Gigabit End-to-End UniFi Network
The Highest Performing WiFi AP in the World
High Density Tests conducted on Access Points where done in a high density environment with 100 WiFi clients running the test concurrently
Spectral Security
The UniFi WiFi AP delivers unprecedented wireless awareness and security, including tools for real-time spectrum monitoring, airtime utilization analytics, and intrusion detection/prevention. Using a persistent spectral scan, the AP constantly monitors the RF environment to check for both potential malicious activity and the best channel for network performance.
Advanced Features in UniFi Controller
Featuring an intuitive user interface, the UniFi Controller conducts device discovery, provisioning, monitoring, and configuration for centralized control of UniFi devices.
| Features |
| Quality of Service (QoS) support |
Yes |
| Wireless isolation |
Yes |
| VLAN support |
Yes |
| MIMO type |
Multi User MIMO |
| MIMO |
Yes |
| Number of users |
1500 user(s) |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q |
| Throughput data rate |
940 Mbit/s |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Wi-Fi data rate (max) |
1733 Mbit/s |
| Maximum data transfer rate |
1733 Mbit/s |
| 5 GHz |
Yes |
| 2.4 GHz |
Yes |
| Security |
| Security algorithms |
AES, TKIP, WEP, WPA, WPA-Enterprise, WPA-PSK, WPA2 |
| Ports & interfaces |
| DC-in jack |
Yes |
| WAN connection |
Ethernet (RJ-45) |
| Ethernet LAN (RJ-45) ports |
2 |
| Power |
| Power consumption (max) |
31 W |
| Output voltage |
44 – 57 V |
| Power over Ethernet (PoE) |
Yes |
| Design |
| Internal |
Yes |
| LED indicators |
Yes |
| Reset button |
Yes |
| Product colour |
White |
| Placement |
Ceiling, Wall |
| Antenna |
| Antenna gain level (max) |
8 dBi |
| Antennas quantity |
4 |
| Antenna features |
Integrated antenna |
| Certificates |
| Certification |
CE, FCC, IC |
| Weight & dimensions |
| Weight |
1.2 kg |
| Height |
50 mm |
| Depth |
228 mm |
| Width |
228 mm |
| Packaging content |
| Mounting kit |
Yes |
| Operational conditions |
| Operating temperature (T-T) |
-10 – 60 °C |
| Operating relative humidity (H-H) |
5 – 95% |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
