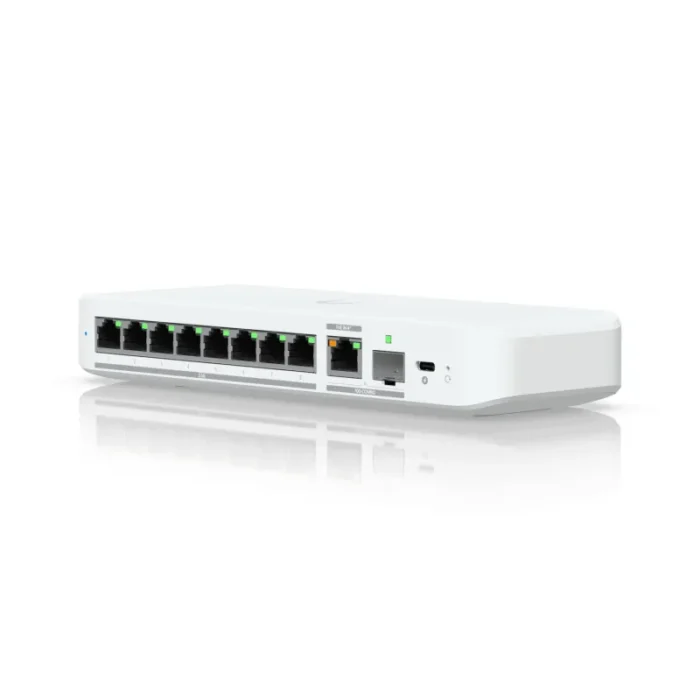

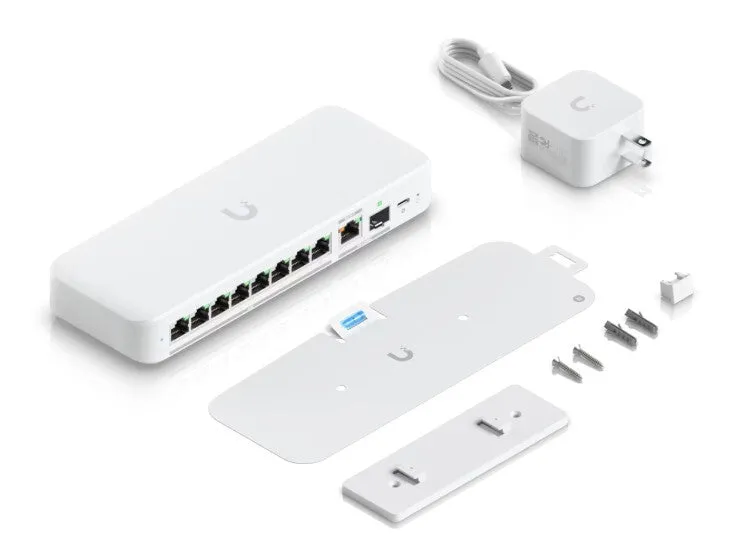

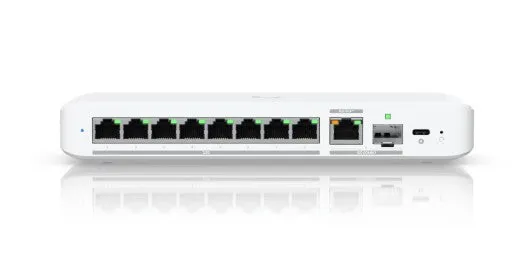

Ubiquiti UniFi Flex 2.5G Managed L2 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) Desktop/Wall-Mounting White
- Managed L2
- Basic switching RJ-45 Ethernet ports quantity: 8
- 10G support
- MAC address table: 4000 entries Switching capacity: 60 Gbit/s
- Desktop/Wall-Mounting
- AC/DC Power over Ethernet (PoE)
| Management features |
| Switch layer |
L2 |
| Switch type |
Managed |
| Ports & interfaces |
| Power connector |
DC-in jack |
| SFP+ module slots quantity |
1 |
| 10G Ethernet (copper) ports quantity |
1 |
| 2.5G Ethernet (copper) ports quantity |
8 |
| Basic switching RJ-45 Ethernet ports type |
2.5G Ethernet (100/1000/2500) |
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Network |
| Number of VLANs |
256 |
| VLAN support |
Yes |
| Flow control support |
Yes |
| Rate limiting |
Yes |
| Broadcast storm control |
Yes |
| Ethernet LAN data rates |
10,100,1000,2500 Mbit/s |
| Port mirroring |
Yes |
| 10G support |
Yes |
| Data transmission |
| Jumbo frames support |
Yes |
| Forwarding rate |
45 Mpps |
| Switching capacity |
60 Gbit/s |
| MAC address table |
4000 entries |
| Security |
| Loop protection |
Yes |
| Multicast features |
| Multicast support |
Yes |
| Design |
| Wall mountable |
Yes |
| DIN rail mounting |
Yes |
| LED indicators |
Activity, Link, PoE, Power, Status |
| Housing material |
Polycarbonate (PC) |
| Product colour |
White |
| Form factor |
Desktop/Wall-Mounting |
| Power |
| Power consumption (max) |
17 W |
| Input current |
3.9 A |
| DC input voltage |
54 V |
| Power supply included |
No |
| Power source |
AC/DC |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
| Operating relative humidity (H-H) |
10 – 90% |
| Operating temperature (T-T) |
-20 – 45 °C |
| Weight & dimensions |
| Weight |
567 g |
| Height |
33.5 mm |
| Depth |
99.4 mm |
| Width |
212.9 mm |
| General |
| Product family |
UniFi |
| Certificates |
| Compliance certificates |
CE, Federal Communications Commission (FCC), Industry Canada (IC) |
