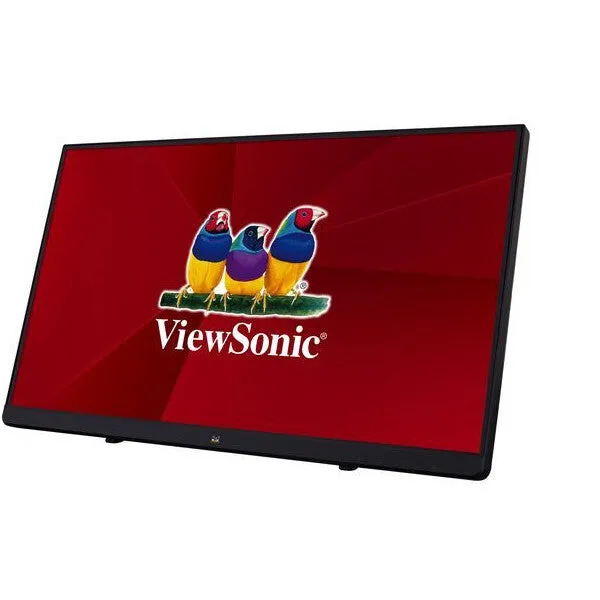

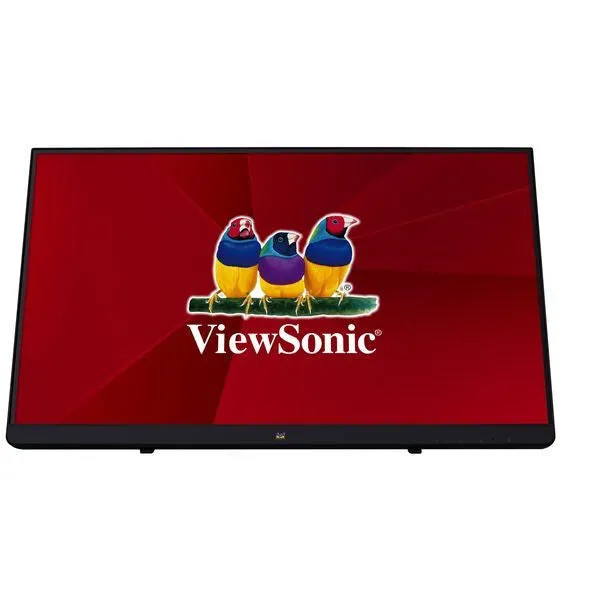

Viewsonic TD2230 computer monitor 54.6 cm (21.5″) 1920 x 1080 pixels Full HD LCD Touchscreen Multi-user Black
- Touchscreen 54.6 cm (21.5″) LCD ADS
- Full HD 1920 x 1080 pixels
- 76 Hz 5 ms 1000:1
- F 19 kWh 25 W
10-Point Projected Capacitive Touch
Touch screens with projected capacitive touch can recognize up to 10 points of simultaneous contact, allowing for a highly accurate and ultra-responsive touch experience. With smooth and responsive touch capabilities, this touch display is ideal for home entertainment, office work, education, and commercial use.
SuperClear IPS Panel Technology
Enjoy accurate and vivid colors with consistent levels of brightness no matter the vantage point. With SuperClear IPS panel technology, this monitor delivers the same image quality whether you are looking at the screen from above, below, the front, or the side.
Frameless Design
Say goodbye to the thick, clunky plastic frames set over the edges of traditional monitors. This monitor features a frameless edge-to-edge glass faceplate with an ultra-slim bezel beneath the glass. With its sleek, eye-catching design, this elegant monitor looks as good as it performs.
Versatile Connectivity
DisplayPort, HDMI, and VGA inputs give you the freedom to connect your monitor to a variety of devices.
Durable, Scratch-resistant Screen
This touch display is designed with a durable, protective glass faceplate. This provides increased scratch protection to ensure durability, as well as a consistent, high-quality touch experience in high-traffic areas such as educational settings, or other public environments where the touch display can be used as a kiosk.
Stable Bookstand Design
A stable, integrated bookstand design makes it easy to adjust the angle of this display for a better user experience. The display can tilted or laid completely flat on a tabletop for a more comfortable work environment.
Enhanced ViewingComfort
Flicker-Free technology and a Blue Light Filter help to eliminate eye strain from extended viewing periods.
Cross-platform Compatibility
Cross compatibility with a wide range of operating systems include Windows 10, and certain Android and Linux versions.
VESA-CompatibleMount
Mount the monitor as you see fit using its convenient VESA-compatible mount design.
3-year LimitedWarranty
Have peace of mind in the quality and reliability of your ViewSonic monitor—backed by one of the industry’s best pixel performance policies and a 3-year limited warranty.
| Display | |
|---|---|
| Display diagonal (metric) | 54.6 cm |
| Vertical scan range | 50 – 76 Hz |
| Horizontal scan range | 24 – 82 kHz |
| Pixel pitch | 0.24825 x 0.24825 mm |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Maximum refresh rate | 76 Hz |
| Contrast ratio (dynamic) | 50000000:1 |
| Contrast ratio (typical) | 1000:1 |
| Supported graphics resolutions | 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080) |
| Screen shape | Flat |
| Response time | 5 ms |
| Display brightness | 250 cd/m² |
| Number of simultaneous touchpoints | 10 |
| Touch technology | Multi-touch |
| Touchscreen technology | Projected capacitive system |
| Touchscreen type | Multi-user |
| Panel type | ADS |
| HD type | Full HD |
| Touchscreen | Yes |
| Display technology | LCD |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 54.6 cm (21.5″) |
| Performance | |
|---|---|
| Linux operating systems supported | Yes |
| Other operating systems supported | Android |
| Mac operating systems supported | Yes |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1 |
| AMD FreeSync | No |
| NVIDIA G-SYNC | No |
| Multimedia | |
|---|---|
| Built-in microphone | No |
| Built-in camera | No |
| RMS rated power | 6 W |
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Product colour | Black |
| Ports & interfaces | |
|---|---|
| Audio output | 1 |
| Audio input | 1 |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 1 |
| HDMI version | 1.4 |
| HDMI ports quantity | 1 |
| HDMI | Yes |
| USB Type-A downstream ports quantity | 2 |
| Number of USB Type-B upstream ports quantity | 1 |
| Number of upstream ports | 1 |
| USB upstream port type | USB Type-B |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| Built-in USB hub | Yes |
| Ergonomics | |
|---|---|
| Number of OSD languages | 12 |
| On Screen Display (OSD) | Yes |
| Tilt angle range | 20 – 70° |
| Tilt adjustment | Yes |
| Wall mountable | Yes |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| European Product Registry for Energy Labelling (EPREL) code | 389769 |
| Power supply type | AC |
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 100-240 V |
| Power consumption (typical) | 25 W |
| Energy consumption (SDR) per 1000 hours | 19 kWh |
| Energy efficiency class (SDR) | F |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 – 90% |
| Operating relative humidity (H-H) | 20 – 90% |
| Storage temperature (T-T) | -20 – 60 °C |
| Operating temperature (T-T) | 0 – 40 °C |
| Weight & dimensions | |
|---|---|
| Weight (with stand) | 3.58 kg |
| Height (with stand) | 299 mm |
| Depth (with stand) | 47 mm |
| Width (with stand) | 490 mm |
| Packaging data | |
|---|---|
| Package weight | 4.7 kg |
| Package height | 371 mm |
| Package depth | 114 mm |
| Package width | 550 mm |
| Packaging content | |
|---|---|
| Cables included | AC, Audio (3.5mm), HDMI, USB |
| Sustainability | |
|---|---|
| Sustainability certificates | EPEAT Bronze, ErP |
| Other features | |
|---|---|
| Certification | cULus, FCC-B, ICES003, Energy Star 8.0, EPEAT Bronze, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BIS, CCC, China RoHS, China Energy Label, CECP |
| Compliance certificates | CE, REACH, RoHS |
| Display viewable area (HxV) | 476.64 x 268.11 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85285210 |
