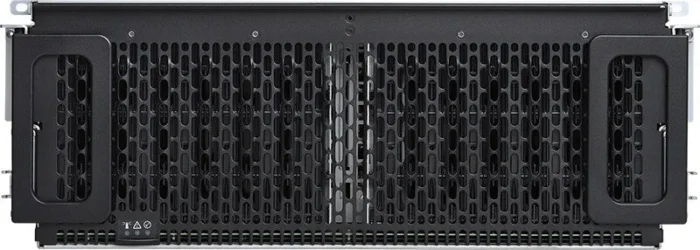

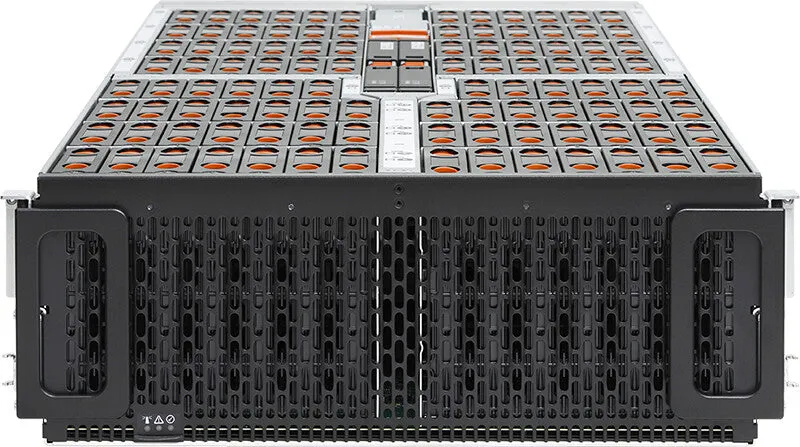

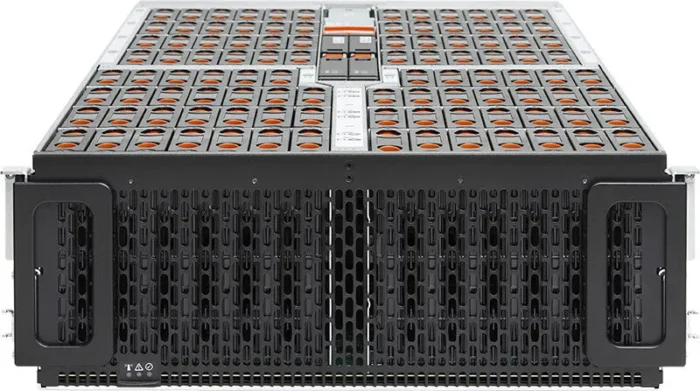

Western Digital Ultrastar Data102 disk array 720 TB Rack (4U) Black, Grey
- Small & Medium Business
- Rack (4U) Black, Grey
- HDD Storage drives installed 720 TB
- Hot-swap drive bays
- 1600 W
The Ultrastar Data102 is a key element of next‑generation disaggregated storage and software-defined storage (SDS) systems, delivering extreme density and the flexibility to balance performance with cost.
– High Density – Up to 102 HGST HelioSeal® HDDs providing up to 1.2PB of raw storage in a 4U enclosure
– Flexible – Choice of SAS or SATA and up to 24 slots can be populated with SSDs for a data acceleration tier
– Innovative – Patented IsoVibe™ and ArcticFlow™ technologies improve performance and cooling
| Storage |
| Hot-swap drive bays |
Yes |
| Data transfer rate |
12 Gbit/s |
| Supported storage drive interfaces |
SAS-3, Serial ATA III |
| Storage drive size |
3.5″ |
| Storage drive interface |
Serial Attached SCSI (SAS) III |
| Storage drive capacity |
12 TB |
| Number of storage drives supported |
102 |
| Supported storage drive types |
HDD & SSD |
| Total installed storage capacity |
720 TB |
| Number of storage drives installed |
60 |
| Installed storage drive type |
HDD |
| Storage drives installed |
Yes |
| Ports & interfaces |
| Mini-SAS host port |
Yes |
| Number of mini-SAS host ports |
12 |
| Serial interface type |
RJ-45 |
| USB connectivity |
No |
| Design |
| Built-in display |
No |
| Redundant fans support |
Yes |
| Noise level |
72 dB |
| Number of fans |
6 fan(s) |
| LED indicators |
Yes |
| Product colour |
Black, Grey |
| Chassis type |
Rack (4U) |
| Device class |
Small & Medium Business |
| Power |
| AC input frequency |
50 / 60 Hz |
| AC input voltage |
200 – 240 V |
| Redundant power supply (RPS) support |
Yes |
| Number of power supply units |
2 |
| Power supply unit (PSU) capacity |
1600 W |
| Weight & dimensions |
| Disk enclosure weight |
31.8 kg |
| Height |
175 mm |
| Depth |
1047 mm |
| Width |
447 mm |
| Operational conditions |
| Operating altitude |
0 – 915 m |
| Storage temperature (T-T) |
-40 – 60 °C |
| Operating relative humidity (H-H) |
5 – 85% |
| Operating temperature (T-T) |
5 – 40 °C |
| Logistics data |
| Harmonized System (HS) code |
84717020 |
