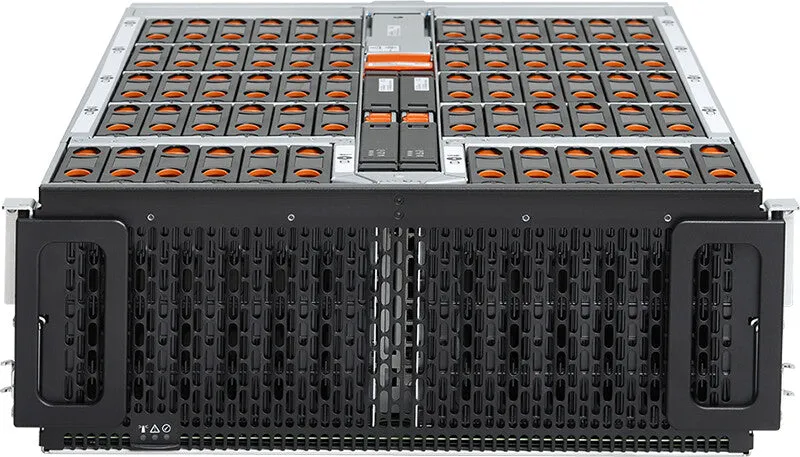

Western Digital Ultrastar Data60 disk array 1320 TB Rack (4U) Black, Grey
- Up to 60 Ultrastar HDDs (SAS or SATA)
- Up to 1.2PB1 raw capacity in 4U using 20TB SMR HDDs
- Dual-port SAS for high availability or single-port SATA for low cost
- Enterprise-grade redundant and hot-swappable PSUs, I/O modules, and fans
Designed for High Density and Flexibility
The Ultrastar Data60 storage platform is a key element of next-generation disaggregated storage and Software-Defined Storage (SDS) systems. The Ultrastar Data60 provides up to 1.2PB1 of raw storage using our 20TB SMR HDDs in a compact and efficient form factor. The Ultrastar Data60 addresses the demanding storage needs of large enterprise customers, storage OEMs, cloud service providers, as well as resellers/integrators requiring dense, shared HDD.
IsoVibe™ Vibration Isolation Technology
Precise cuts in the baseboard provide a suspension for the drives in the chassis, isolating them from transmitted vibration. The result is that consistent performance is maintained, even when all the drives are working hard.
ArcticFlow™ Thermal Zone Cooling Technology
By introducing cool air into the center of the chassis, drives operate at lower and more consistent temperatures than conventional systems. This results in lower fan speeds, reduced vibration, lower power consumption, quieter operation and ultimately higher reliability.
Western Digital Resource Manager
A GUI-based tool that enables real-time monitoring and management of the platform and provides a consolidated dashboard displaying the most critical information. Other views allow platform configuration, health monitoring, and maintenance.
| Storage | |
|---|---|
| Hot-swap drive bays | Yes |
| Data transfer rate | 6 Gbit/s |
| Storage drive sizes supported | 3.5″ |
| Supported storage drive interfaces | SAS, Serial ATA III |
| Storage drive size | 3.5″ |
| Storage drive interface | Serial ATA III |
| Number of storage drives supported | 60 |
| Supported storage drive types | HDD & SSD |
| Total installed storage capacity | 1320 TB |
| Installed storage drive type | HDD |
| Storage drives installed | Yes |
| Ports & interfaces | |
|---|---|
| Mini-SAS host port | Yes |
| Number of mini-SAS host ports | 12 |
| USB connectivity | No |
| Design | |
|---|---|
| Built-in display | No |
| Redundant fans support | Yes |
| Noise level | 72 dB |
| Number of fans | 6 fan(s) |
| Cooling | Yes |
| LED indicators | Yes |
| Product colour | Black, Grey |
| Chassis type | Rack (4U) |
| Device class | Large Enterprise Business |
| Power | |
|---|---|
| AC input frequency | 50 / 60 Hz |
| AC input voltage | 200 – 240 V |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 2 |
| Power supply unit (PSU) capacity | 1600 W |
| Weight & dimensions | |
|---|---|
| Disk enclosure weight | 27.3 kg |
| Height | 175 mm |
| Depth | 712 mm |
| Width | 447 mm |
| General | |
|---|---|
| Product family | Ultrastar |
| Operational conditions | |
|---|---|
| Operating altitude | 0 – 915 m |
| Storage temperature (T-T) | -40 – 60 °C |
| Operating relative humidity (H-H) | 5 – 85% |
| Operating temperature (T-T) | 5 – 40 °C |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84717020 |
