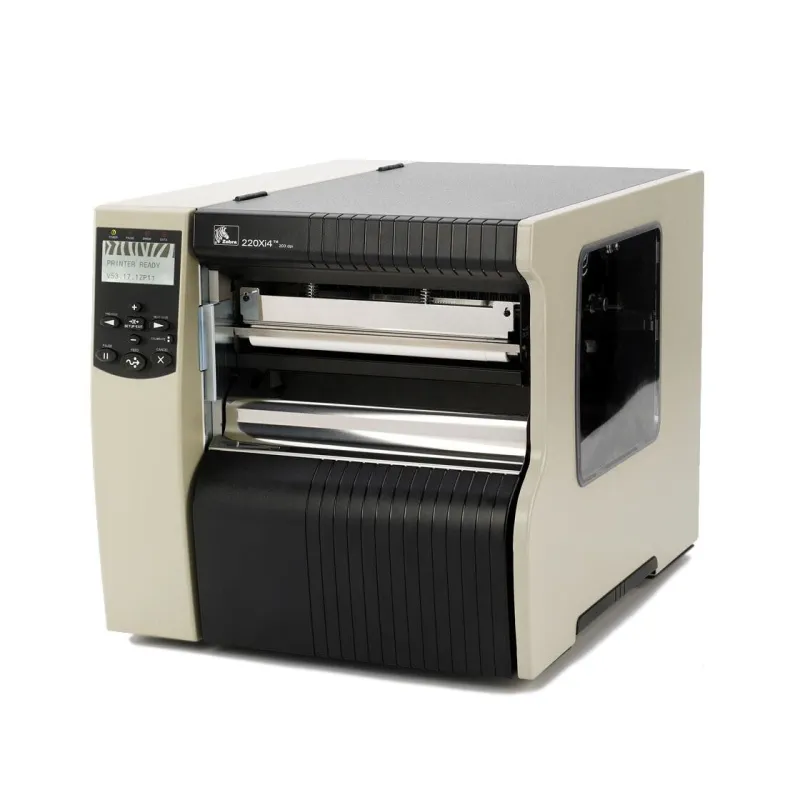

Zebra 220Xi4 label printer Direct thermal / Thermal transfer 300 x 300 DPI 254 mm/sec Wired
- Direct thermal / Thermal transfer
- 300 x 300 DPI
- Printing colours: Black
- Maximum printing width: 24 cm Print speed: 254 mm/sec
- Built-in barcodes: 1D, 2D, CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 49, Code 93, EAN13, EAN8, Industrial 2/5, Interleaved 2/5, MaxiCode, PDF417, POSTNET, QR Code, TLC39, UPC-A, UPC-E
- Connectivity technology: Wired
- USB port
- 32.7 kg
Built for high-volume applications and harsh environments, Zebra’s Xi Series label printers deliver superior print quality and reliability. Boost productivity with faster print and connection speeds, and reduce downtime with early warning.
220Xi4 Industrial Printer
Designed for fast printing of chemical drum and other wide-label applications, count on high-performance when you trust the rugged reliability of this thermal label printer.
| Printing |
| Maximum print height |
12.8 cm |
| Maximum printing width |
24 cm |
| Printing colours |
Black |
| Print speed |
254 mm/sec |
| Maximum resolution |
300 x 300 DPI |
| Print technology |
Direct thermal / Thermal transfer |
| Paper handling |
| Maximum media length |
3.81 m |
| Media thickness |
0.076 – 0.305 mm |
| Supported paper width |
216 mm |
| Maximum label width |
22.4 cm |
| Maximum roll diameter |
20.3 cm |
| Core diameter |
7.6 cm |
| Maximum media length (imperial) |
150″ |
| Media thickness (imperial) |
0.003 – 0.012″ |
| Supported paper width (imperial) |
8.5″ |
| Ribbon length |
300 m |
| Ribbon width |
22 cm |
| Ports & interfaces |
| RS-232 ports |
1 |
| Parallel ports quantity |
1 |
| USB 2.0 ports quantity |
1 |
| USB port |
Yes |
| Wi-Fi |
No |
| Ethernet LAN |
No |
| Connectivity technology |
Wired |
| Performance |
| Certification |
BSMI, CCC, CE, C-tick, EN, FCC, GOST-R, ICES, IEC, KCC, NOM, STB, VCCI, ZIK |
| Processor frequency |
133 MHz |
| Built-in processor |
32 bit RISC |
| Built-in barcodes |
1D, 2D, CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 49, Code 93, EAN13, EAN8, Industrial 2/5, Interleaved 2/5, MaxiCode, PDF417, POSTNET, QR Code, TLC39, UPC-A, UPC-E |
| Flash memory |
8 MB |
| Internal memory |
16 MB |
| Page description languages |
XML, ZPL, ZPL II |
| Design |
| Product colour |
Black, Grey |
| Power |
| Power requirements |
90-264V, 48 – 62 Hz |
| Operational conditions |
| Operating temperature (T-T) |
5 – 40 °C |
| Storage temperature (T-T) |
-40 – 60 °C |
| Storage relative humidity (H-H) |
5 – 85% |
| Operating relative humidity (H-H) |
20 – 85% |
| Weight & dimensions |
| Weight |
32.7 kg |
| Height |
393.7 mm |
| Depth |
517.5 mm |
| Width |
401.6 mm |
| Logistics data |
| Harmonized System (HS) code |
84433210 |
| Technical details |
| Sustainability certificates |
ENERGY STAR |
